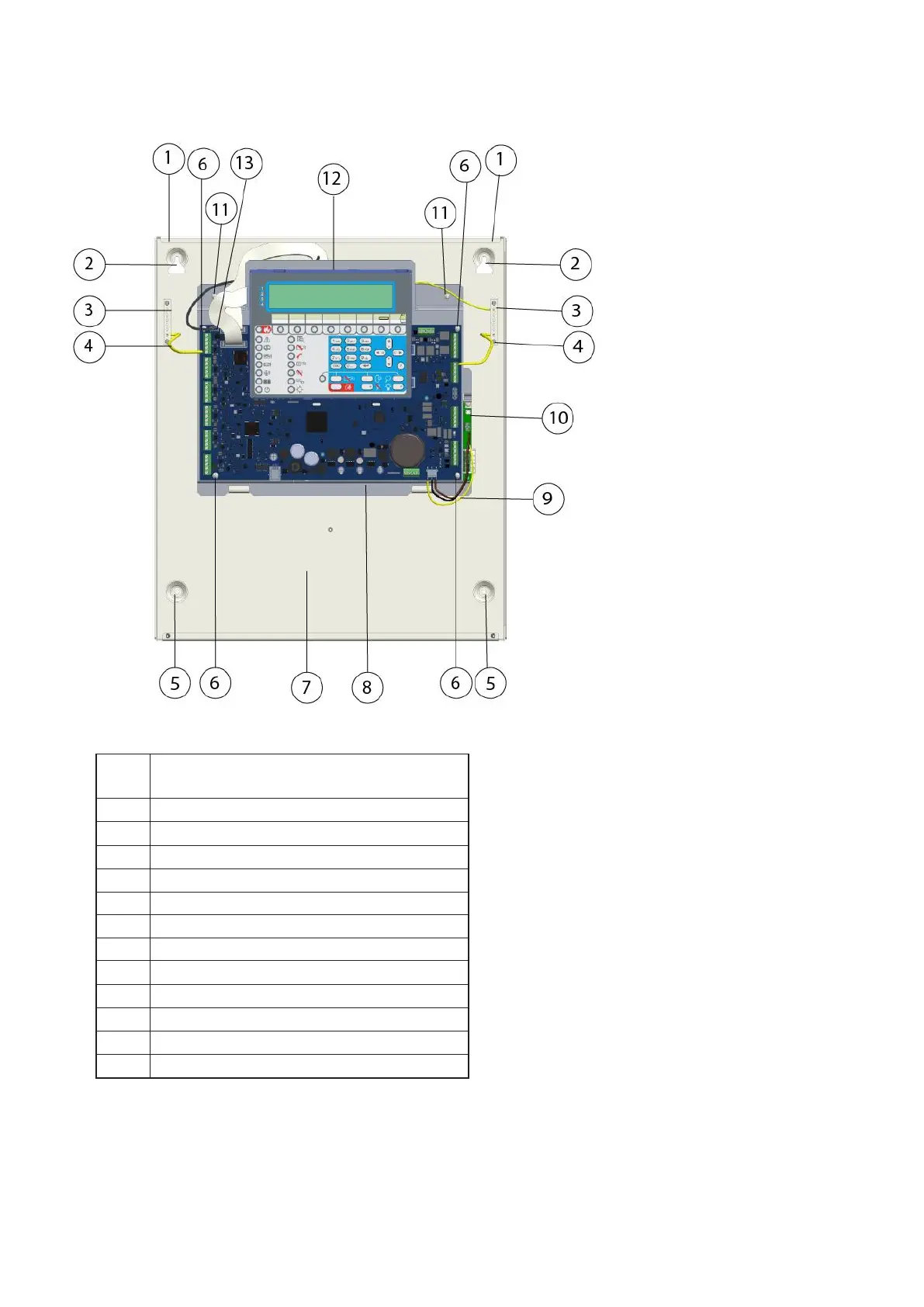

Figure 2: FC503 and FC506 Parts: Internal view
1
Hooks to secure the cover on the panel (2)
2
Panel anchor screw locations (Top) (2)
3
Terminals (2) for the earth connection wires
4
Earthing Cables (2)
5
Panel anchor screw locations (Bottom) (2)
6
Screws to secure main board (4)
7
Location for 2 batteries 12V, 17Ah
8
Metal chassis
9
Power cable for main module
10
Switching power supply (See Figure 4)
11
Screws to secure chassis (2)
12
Main Module (See Figure 3)
13
Serial port RS 232 (PC link)
