23

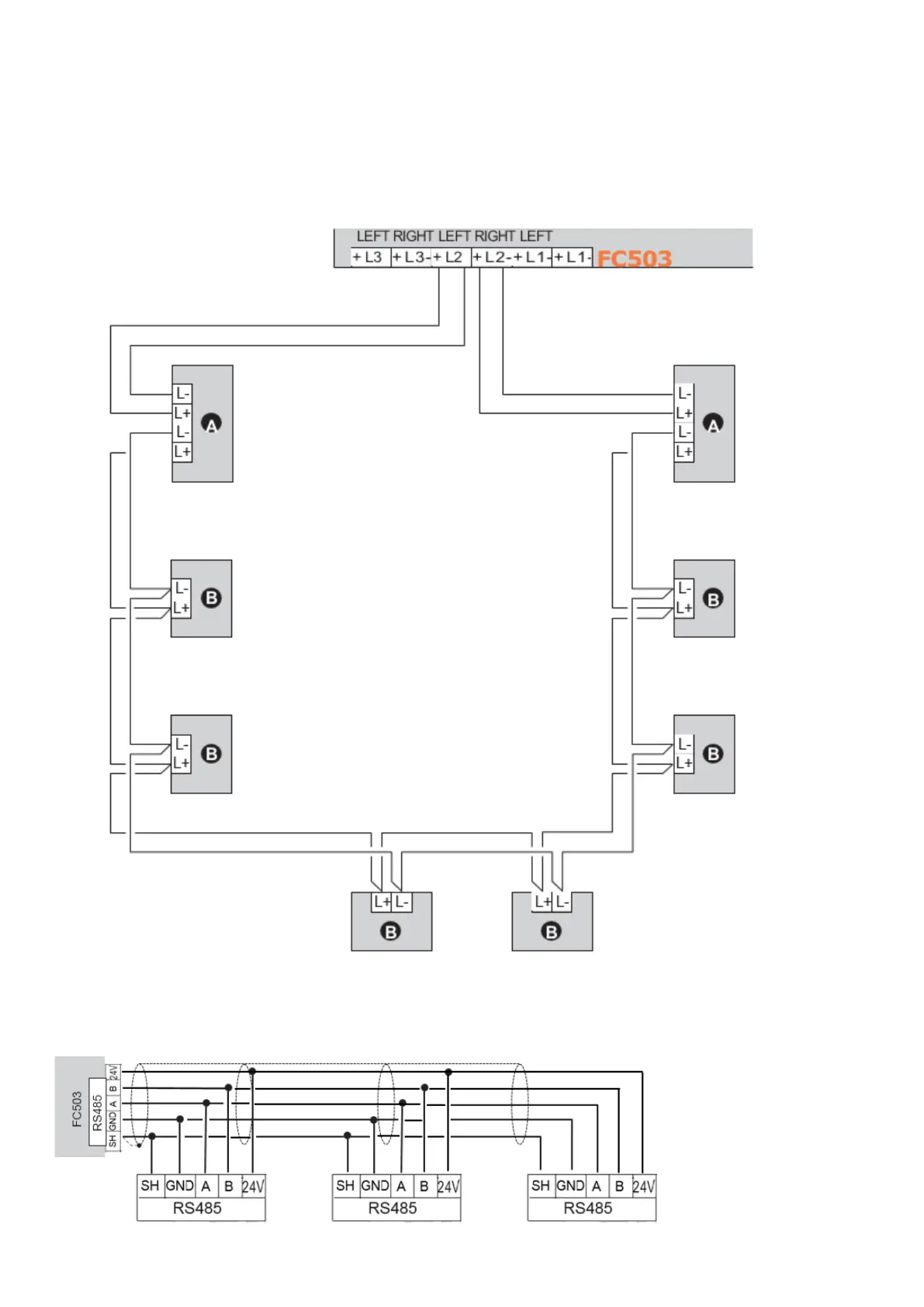

Figure 9: Wiring diagram of a 4-wire connection
A) Isolators
B) Compatible analogue devices (Fire detector, Input modules, Output modules, Manual callpoints)
Figure 10: Wiring diagram of eight (max) FC500 repeaters connected to the RS485
