Connecting/replacing probe DMP10 / DMP20

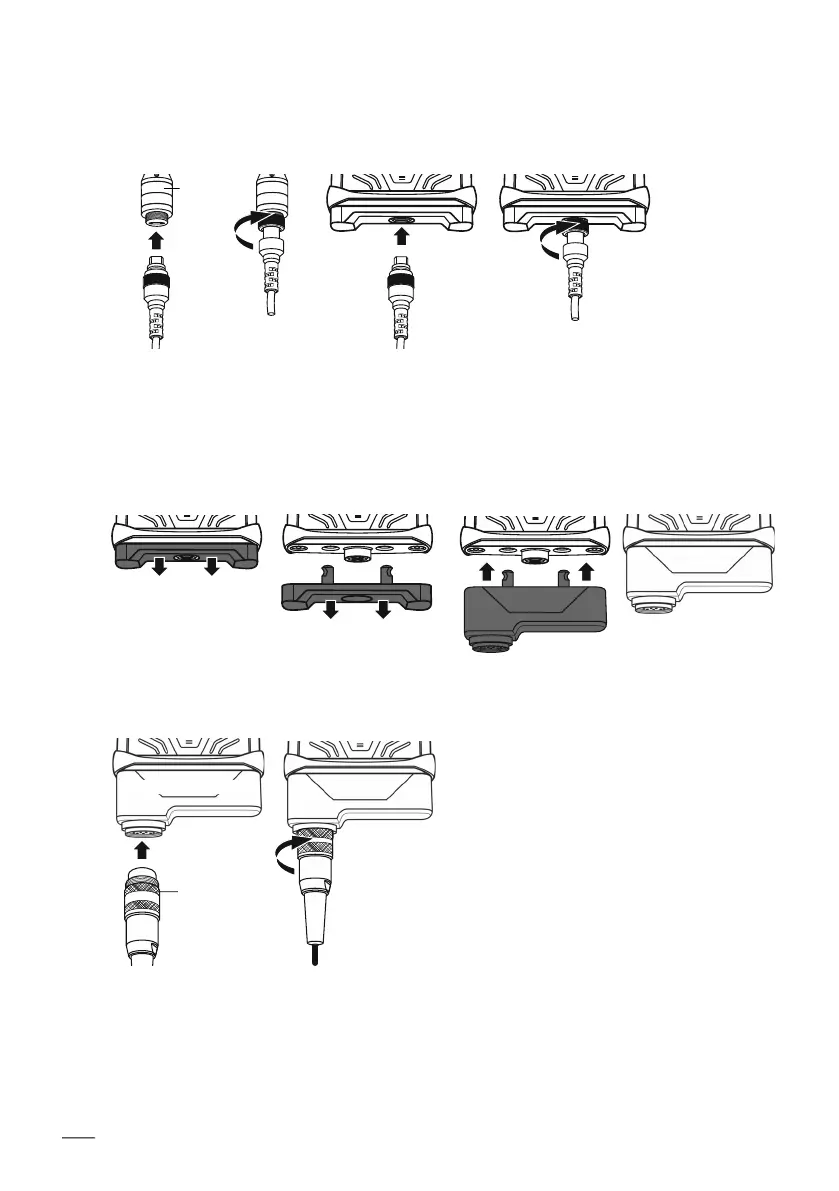

To connect the probe to the gauge
 Digital probes (D…) with USB-C connecting socket, USB-C connection cable in-
cluded in the scope of supply
 Analog probes (F…) with 12-pin connecting plug via DMP-F probe adapter
(1007336, available from Fischer as an accessory)
• To attach the DMP-F probe adapter to the gauge.
• To connect the probe to the DMP-F probe adapter..
