2.4 Electrical connection
2.5 Elements
2.3 Electrical Ratings
All elements used in the OBC models are Incaloy hermatically sealed elements.
OB60 Wattage
(W)
Max amps
(A)
Resistance
(Ω)+ - 5%
Fan Element 2500 10.8 21
Upper Inner Grill Element 2000 8.7 52
Upper Outer Grill Element 1200 5.2 44
Bake 1200 5.2 44
OB60 compact Wattage
(W)
Max amps
(A)
Resistance
(Ω)+ - 5%
Fan Element 1400 6.1 37
Upper Inner Grill Element 2000 8.7 52
Upper Outer Grill Element 1200 5.2 44
Bake 1200 5.2 44

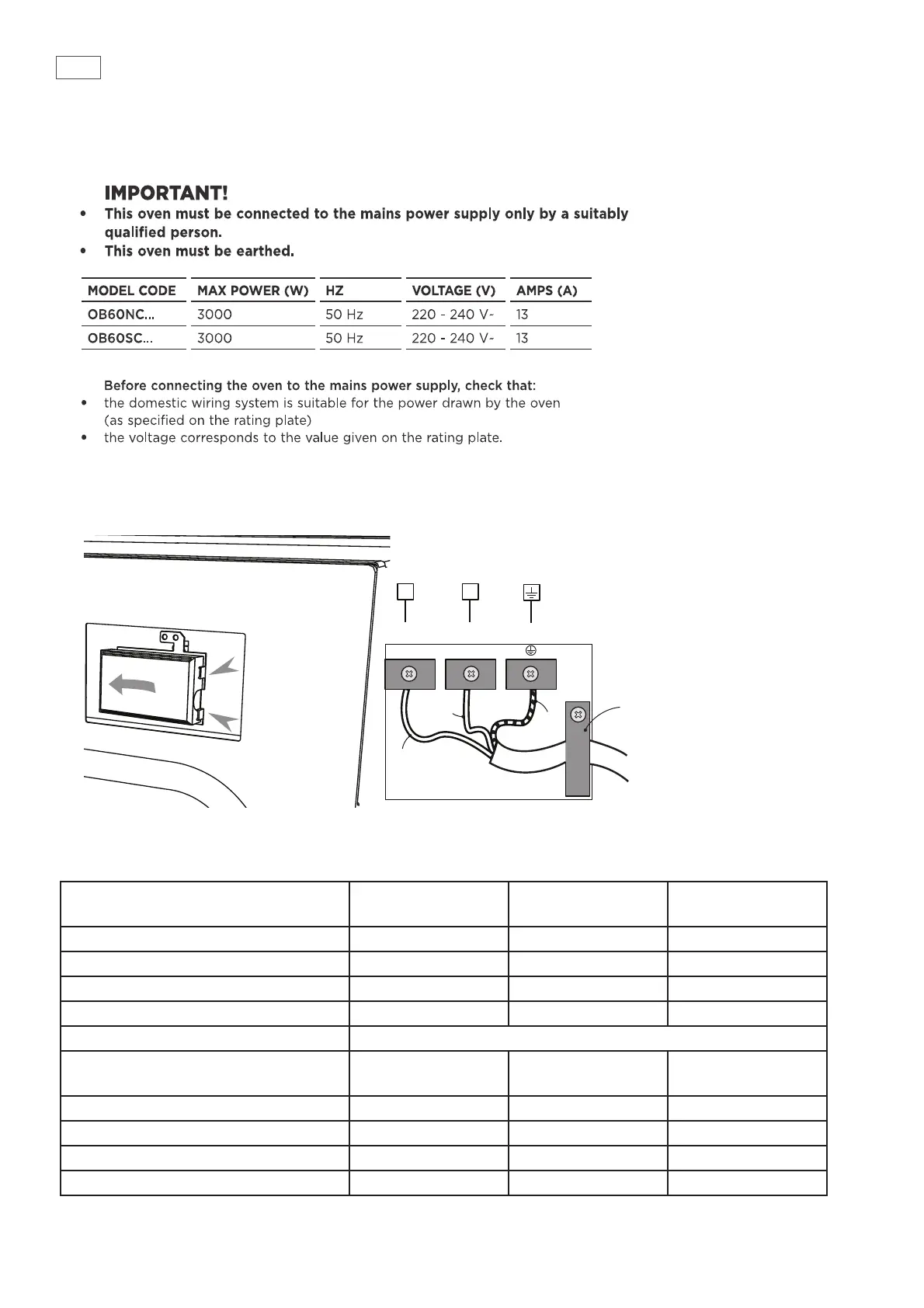

Unclip
and lift up
L1
N(L2)
E
Brown
(Live)
Ensure cable
clamp is tightened
with screw
(you may have
to remove the
screw rst
before tting
the clamp)
L
N
Green
& Yellow
(Earth)
Blue
(Neutral)
O
O
O
O
