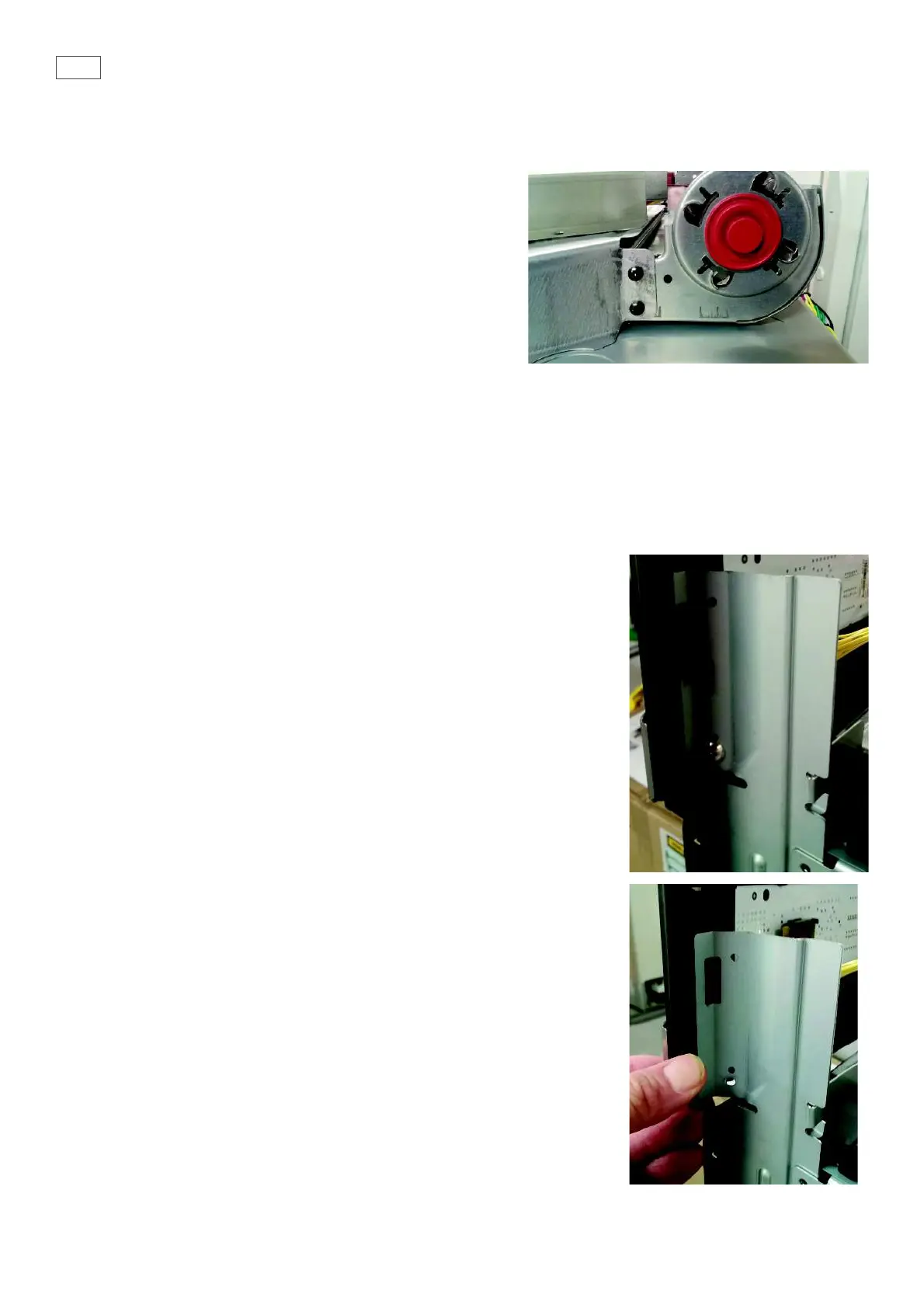

8.7 Removal of the Cooling Fan
•
Remove the product from the joinery.
• Remove the top and rear outer panels to gain
access to the cooling fan.
• Remove the wiring to the cooling fan motor.
• Remove the two screws on one side and one on
the other holding the motor to the top of the tray.
• Slide the cooling fan from the duct to release.
8.8 Removal of the Control Panel
•
Remove the retaining screws and pull the product
slightly forward.
• Remove the two screws, one down each side holding
the control panel to the chassis.
• Lift the control panel slightly up and pull forward to
remove from the top panel. Take care not to pull too
far forward until the wiring harness from the PCB and
door switch are disconnected.
• The control panel can now be removed.
