8.15 Removal of the Venting Thermal Activator
•
Remove the product from the joinery.
• Remove the back panel to gain access to the valve.
• Remove the wiring on the wax actuator. (Fig 1)
• Slightly release the clips from the bracket and the
wax actuator coil will release. (Fig 2)
• To remove the bracket assembly, twist the bracket
anti clockwise and the assembly will release from
the housing. Note the assembly is quite tight to
release. (Fig 3)
• To reassemble the bracket, place the arm through,
seat the at clip in the assembly, then rotate anti
clockwise and the assembly will snap into place.
(Fig 4)

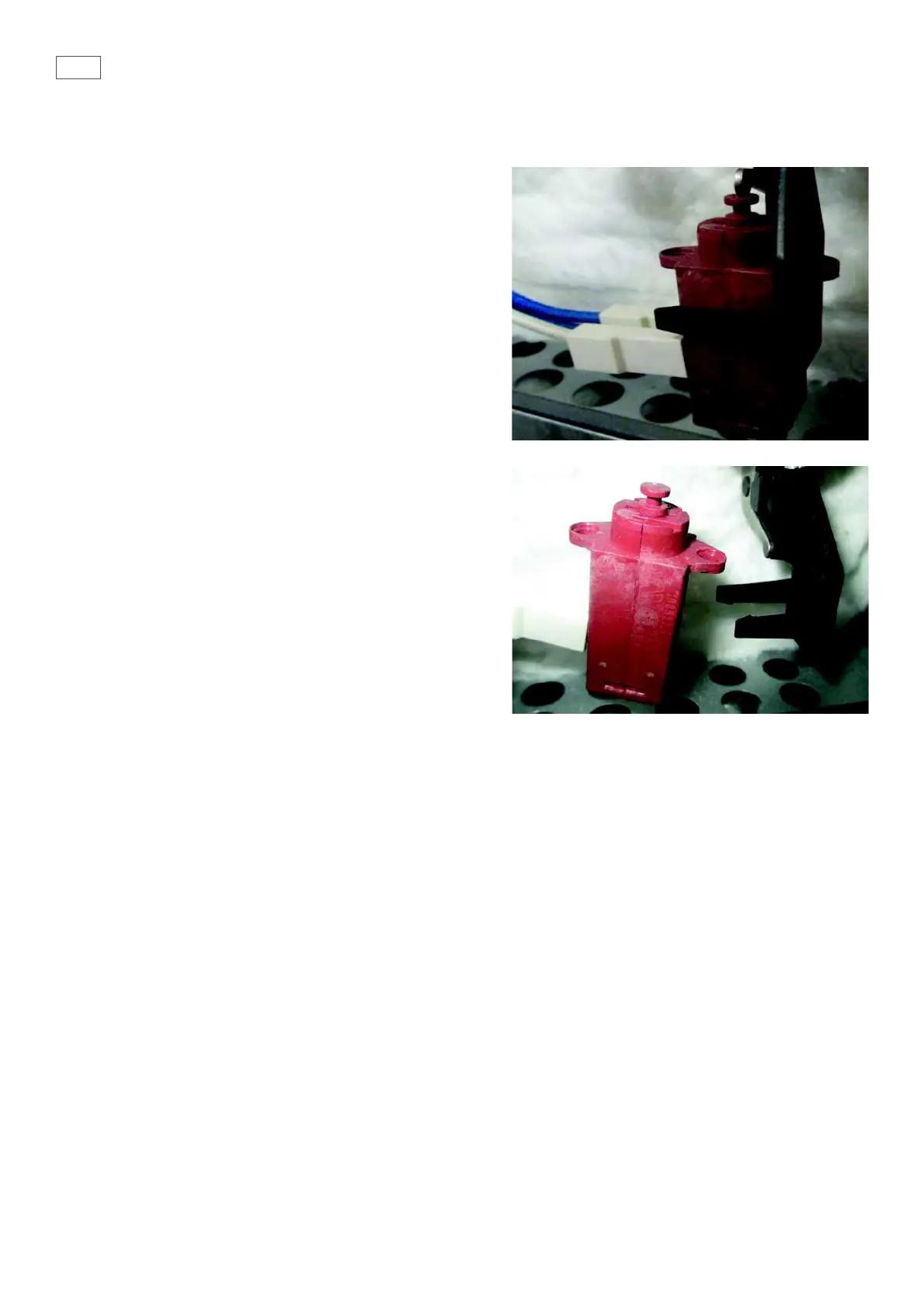

Fig 1
Fig 2
