3.11 Temperature Module

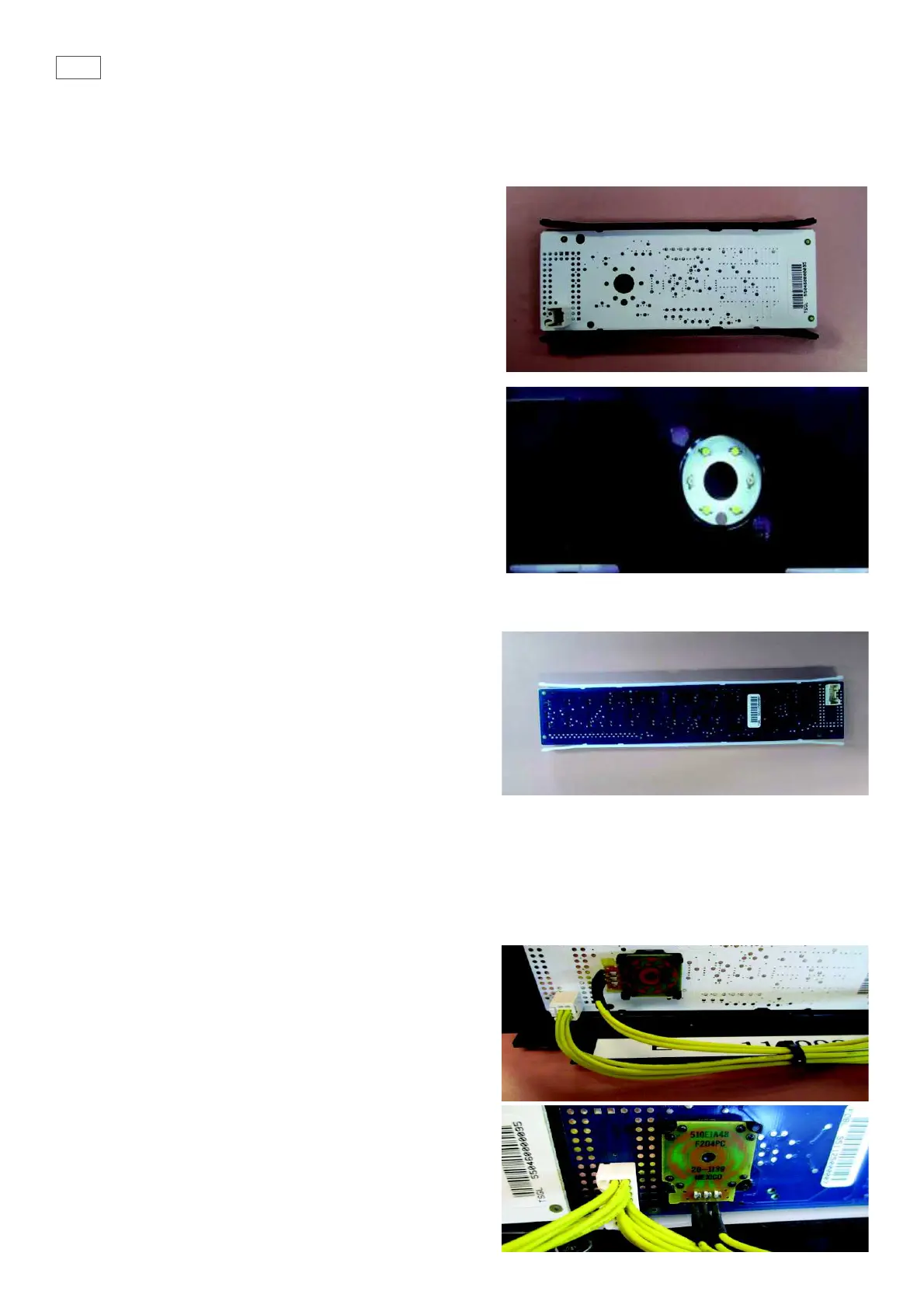

The OB60C models use a display module as a
customer interface to show cooking temperature.
This temperature is illuminated and shown on the
control panel.
The module uses a harness to communicate with
the clock module, and has an encoder for the
customer to select temperature.
The module also has LED lights which show red
while heating, and turn white when the oven is at
the correct temperature.
3.12 Function Module
The OB60C models use a function module as
a customer interface, and shows the cooking
function selected by illuminating the icon on the
control panel.
The module uses a harness to communicate with
the clock module, and has an encoder for the
customer to select the oven function.
The module also has an illuminated white halo
around the control knob.
3.13 User Interface Harness
The temperature and function modules are
linked to the clock module via the user interface
harness.
This harness uses knob encoders for the
customer interface for selecting the oven
function or selecting the oven temperature.
