3.14 Limiters
All models have a fan run on limiter which is set
to 55 deg C.
This limiter will keep the cooling fan running until
the cavity temperature drops below 55 deg C.
The over temp limiter is one shot type Honest
Well TY24, the trip temperature is 110 deg C. refer
to parts manual.

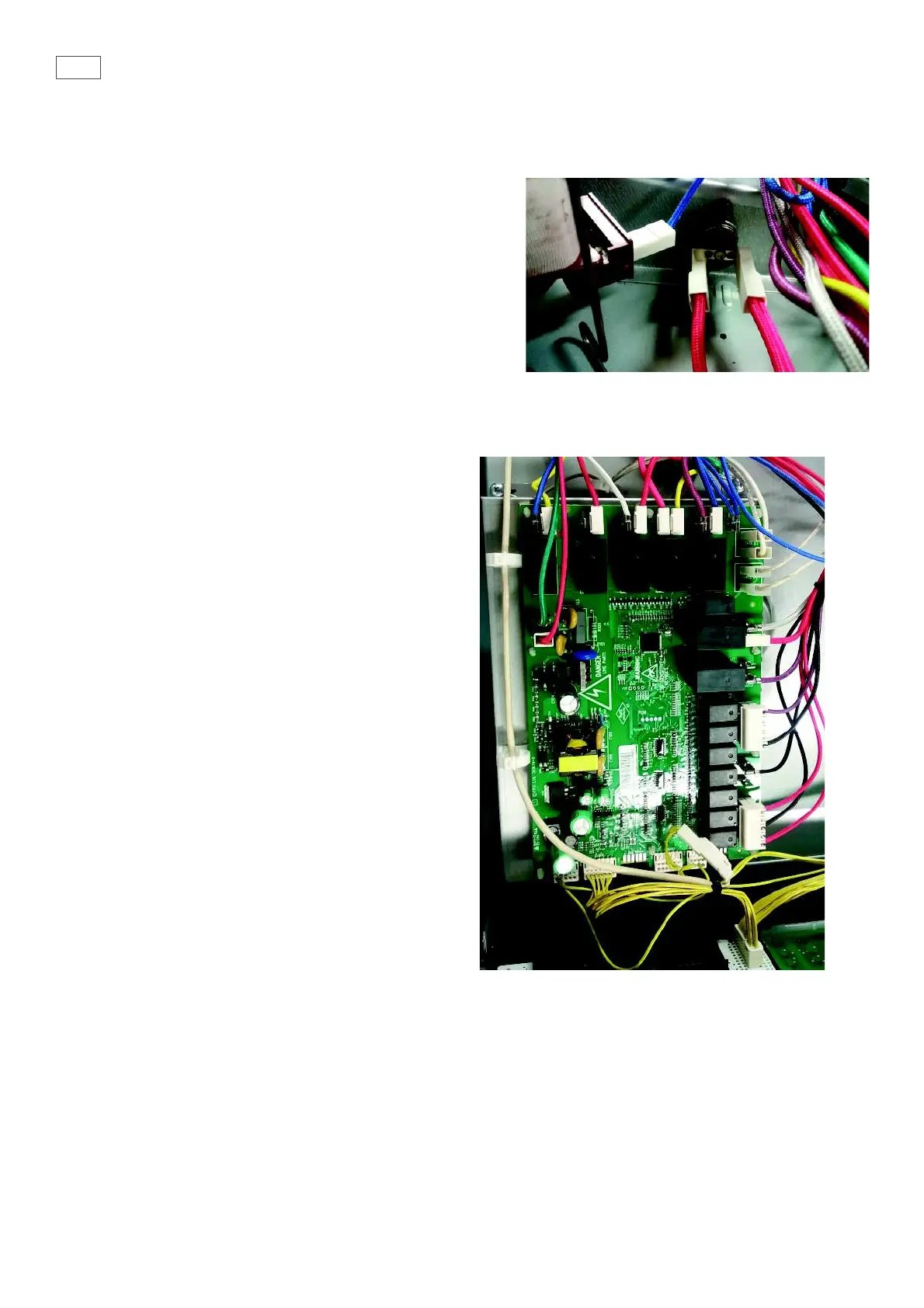

3.15 Power Board
The power board is located in the top panel area,
and is held in place by clips.
The power board is connected to the clock via a
harness and controls the following components:
• Elements
• Door switch
• Temperature sensor.
• Door lock (pyro model only)
• Lights
• Rotisserie motor
• Cavity fan
• Cooling fan
The power board is a GOEP type board so is used
in both the pyrolytic model and multifunction
model. This means if being changed for any reason,
the model ID must be selected for the product it is
being tted to.
Refer to section 6 for more detail.
