17

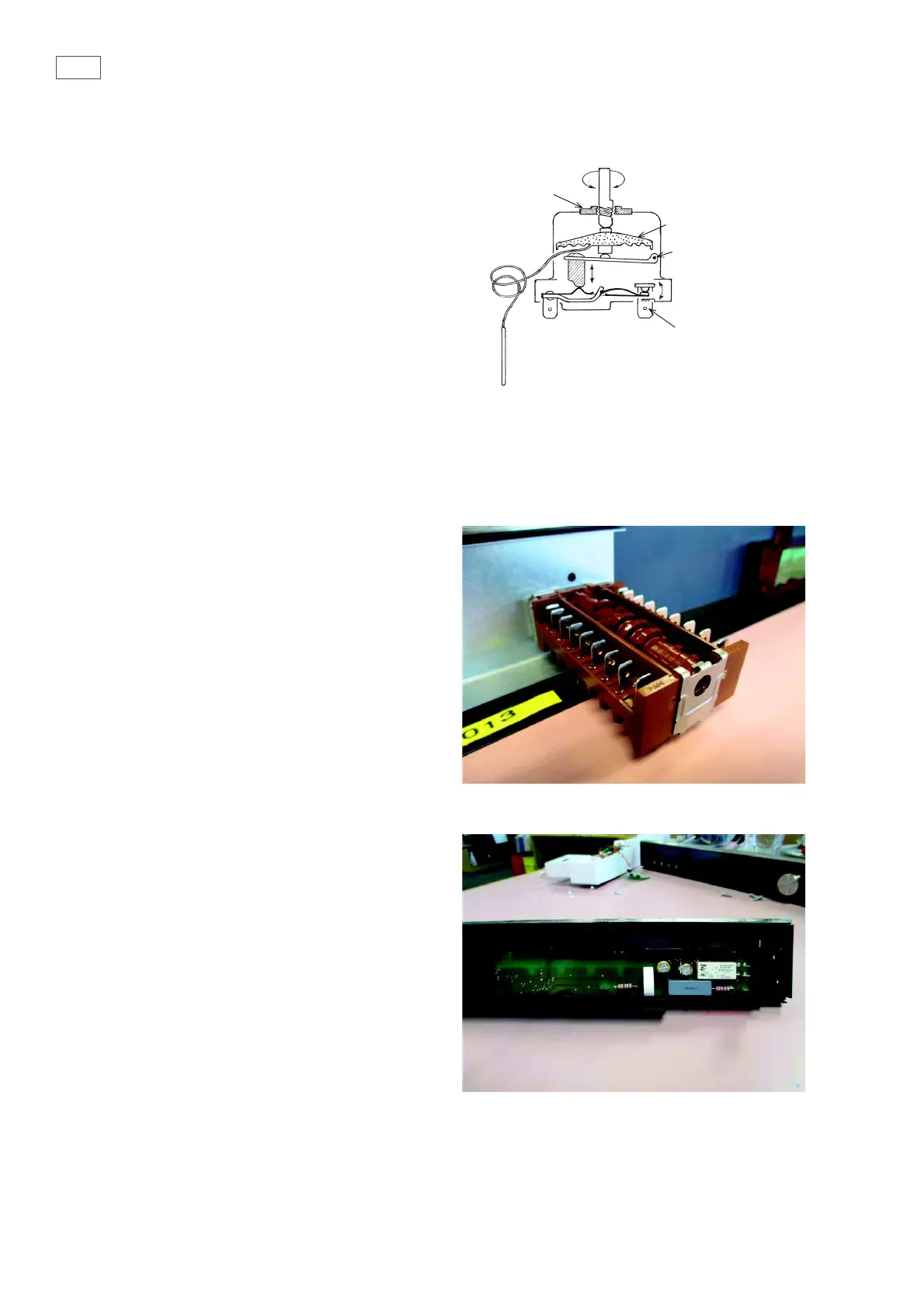

3.10 OB60 Clock Module
3.9 OB60 Function Switch
The OB60C model only uses a
mechanical type thermostat.
The thermostat is used to switch the
oven element on and o to maintain
temperature.
3.8 OB60 Mechanical Thermostat
The function switch is only used in OB60
models, and is used to select the oven
functions.
The function switch has 7 functions.
when switched on will operate the light in the
oven as well.
Refer to product wiring diagram on page 60
Some OB60 models use a clock module which is
a user interface display.
This module shows the time, and allows the user
to select automatic cooking and a cook timer.
10 C.
Regulating
shaft
Bellows
Thermostat
bulb
Operating
leve
Capillary
tube
Shaft
housing
Main switch
contacts
To Next Page
