Instruction Manual
D103412X012
Operating with a DeltaV System
July 2013
314

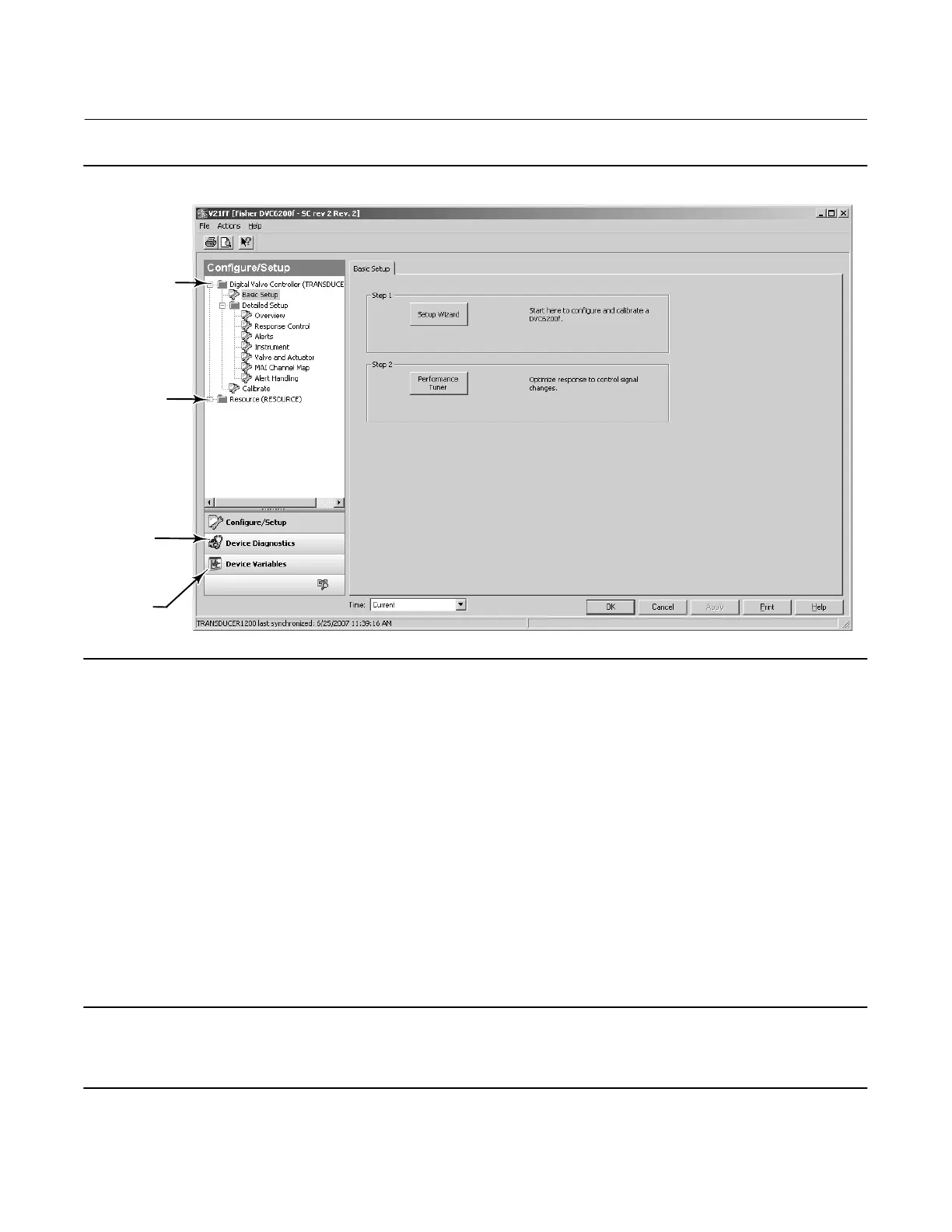

Figure F‐4. Accessing Configure/Setup, Device Diagnostics, and Device Variables
DEVICE
DIAGNOSTICS
DEVICE
VARIABLES
DIGITAL VALVE
CONTROLLER
(TRANSDUCER)
RESOURCE
(RESOURCE)
Resource Block
For detailed information on the parameters that are changed via the resource block, refer to the Detailed Setup
section of this manual. Refer to figures F‐2, F‐3, and F‐4 for information on accessing resource block parameters.
1. Start DeltaV Explorer by selecting DeltaV Explorer from the Start menu.
2. Locate the digital valve controller icon in the All Containers pane and right‐click once on the block icon or name.
3. Locate Open with AMS Device Manager in the context menu and left‐click to bring up the Device Connection View.
4. Navigate to the digital valve controller icon or name as shown in figure F‐2 and left‐click.
5. Locate Configure/Setup in the Actions menu (see figure F‐3) and left‐click to access Configuration and Setup
parameters.
6. Left‐click on Resource (RESOURCE) to access the resource block parameters. Refer to table F‐2 for the resource
block configuration menu.
Note
To access diagnostic parameters left‐click on Device Diagnostics, and then on Resource (RESOURCE). See figure F‐4.
To access device variables left‐click on Device Variables, and then on Resource (RESOURCE). See figure F‐4.
