Instruction Manual
D103412X012
Detailed Setup—Transducer Block
July 2013
75
Travel Deviation Alert Point—The Travel Deviation Alert Point (TVL_DEV_ALRT_PT [77.1]) is the alert point for the
difference, expressed in percent (%), between the travel target and the actual travel. When the difference exceeds
the alert point for more than the Travel Deviation Time, the Travel Deviation Alert is set.
Travel Deviation Time—Travel Deviation Time (TVL_DEV_TIME [77.2]) is the time, in seconds, that the travel
deviation must exceed the Travel Deviation Alert Point before the alert is set.
Travel Deviation Deadband—Travel Deviation Deadband (TVL_DEV_DB [77.3]) is the travel in percent threshold (%)
of ranged travel required to clear a Travel Deviation alert, once it has been set. See figure 4‐2.

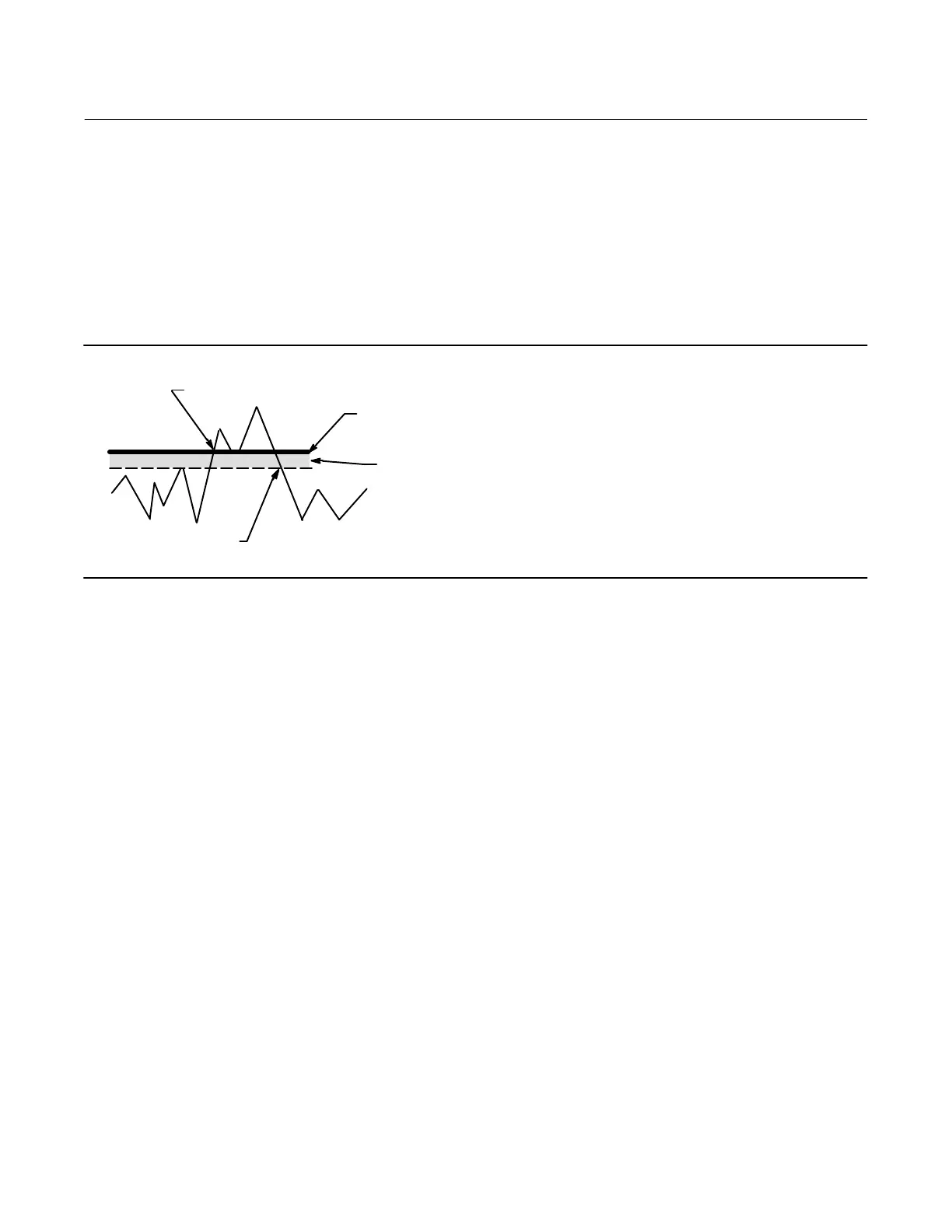

Figure 4‐2. Travel Hi Alert Deadband
ALERT IS CLEARED
ALERT IS SET
TRAVEL ALERT
HIGH POINT
TRAVEL ALERT
DEADBAND
A6532
Travel Limit
Travel Hi Hi Alert—This alert is active if the Travel exceeds the Travel Hi Hi Alert point.
Travel Hi Hi Alert Enable—When enabled Travel Hi Hi Alert Enable activates the Travel Hi Hi Alert.
Travel Hi Hi Alert Point—Travel Hi Hi Alert Point (TVL_HI_HI_ALRT_PT [77.18]) is the value of the travel, in percent
(%) of ranged travel, which, when exceeded, sets the Travel Alert Hi Hi alert.
Travel Hi Hi Deadband—Travel Hi Hi Deadband (TVL_HI_HI_DB [77.19]) is the travel, in percent (%) of ranged travel,
required to clear a Travel Hi Hi alert, once it has been set. See figure 4‐2.
Travel Lo Lo Alert—This alert is active if the Travel is lower than the Travel Lo Lo Alert point.
Travel Lo Lo Alert Enable—When enabled Travel Lo Lo Alert Enable activates the Travel Lo Lo Alert.
Travel Lo Lo Alert Point—The Travel Lo Lo alert is set when the value of the travel, in percent (%) of ranged travel,
goes below the Travel Lo Lo Alert Point (TVL_LO_LO_ALRT_PT [77.12]).
Travel Lo Lo Deadband—Travel Lo Lo Deadband (TVL_LO_LO_DB [77.13]) is the travel, in percent (%) of ranged
travel, required to clear a Travel Lo Lo alert once it has been set. See figure 4‐3.
