OPERATING YOUR SNOWPLOW

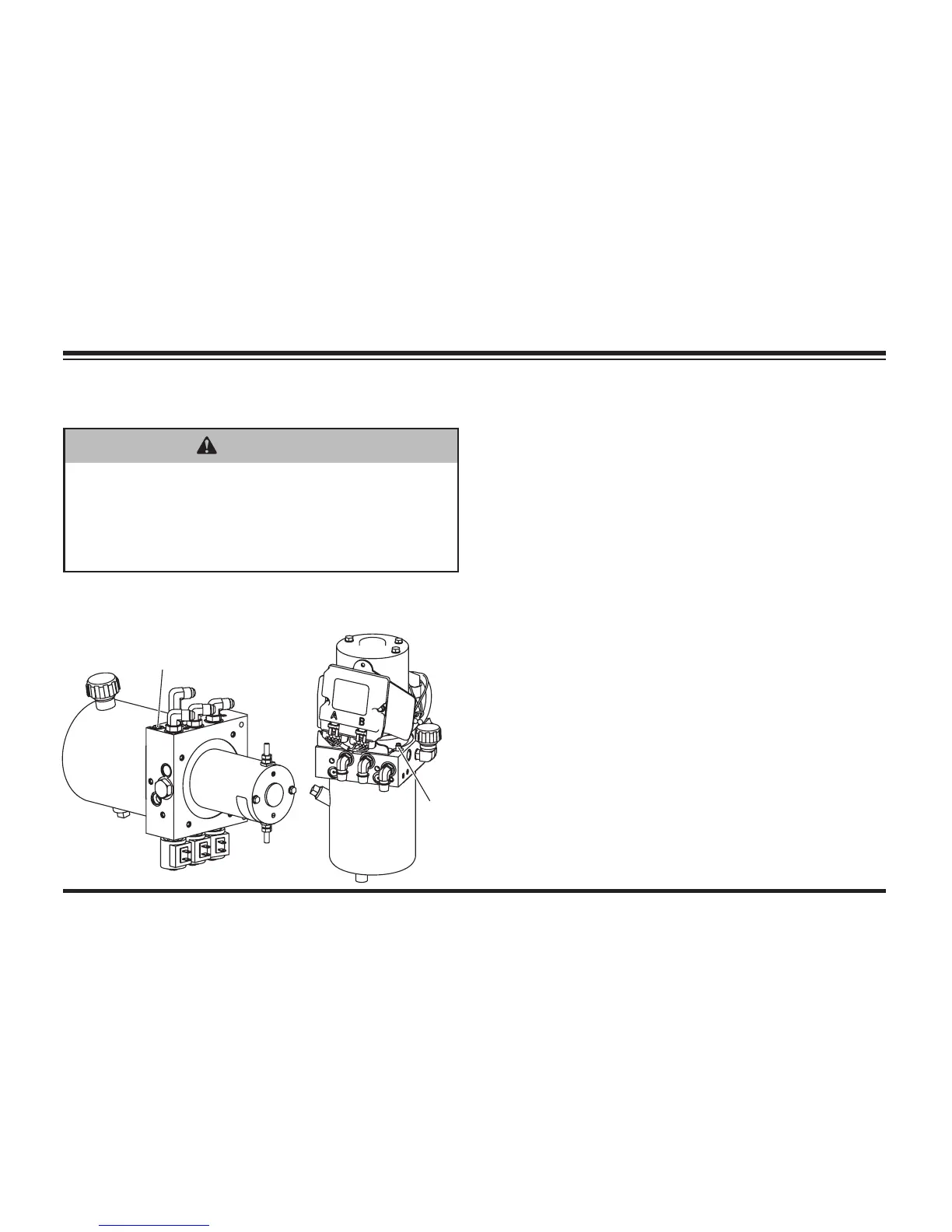

The quill in the valve manifold adjusts the blade
drop speed.
1. Lower the blade to the ground before making
the adjustment.
2. Remove the hydraulic unit cover.
XtremeV™, XV2™, and XLS™ hydraulic
units: Raise the top cover retainer, remove
the bottom cover retainer, and remove the
rear cover.
3. Turn the quill IN (clockwise) to decrease drop
speed. Turn the quill OUT (counterclockwise)
to increase drop speed.
4. Stand 8 feet clear of the blade when checking
adjustment.
BLADE DROP SPEED ADJUSTMENT
WARNING
Keep 8' clear of the blade when it is being
raised, lowered, or angled. Do not stand
between vehicle and blade or directly in
front of the blade. If the blade hits or drops
on you, you could be seriously injured.
