MAINTENANCE
6. A special spring removal tool (20043) must be
used to safely make this adjustment. NEVER
ATTEMPT SPRING REMOVAL WITHOUT
THE SPECIAL TOOL. Follow the instructions
in the spring tool kit for proper tool usage.
NOTE: If the springs are not adjusted to match
the attack angle setting, blade damage may
occur.
Accessories Adjustment

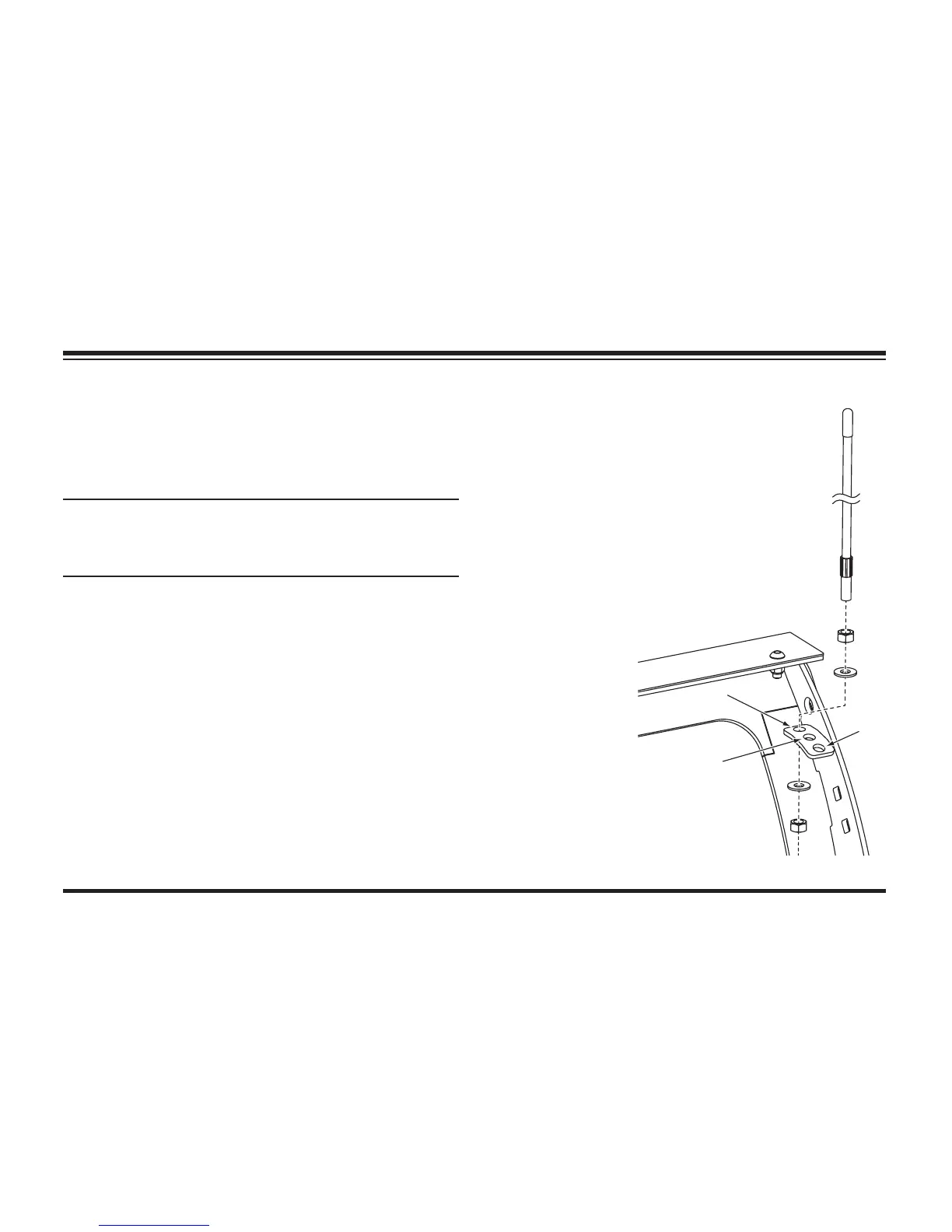

The blade guides must be adjusted to
match the attack angle. Remove the
bottom nut and washer, and reposition
as shown.
Other accessories, such as cutting and
back drag edges, blade wings, and
shoes must also be adjusted. Follow the
instructions included with your particular
kit to adjust these items.
