Find the appropriate range for your attack angle
setting, and verify that the headgear is connected
to the corresponding A‑frame hole.
HD2 Snowplow
Mount Height (in) A-Frame Hole
15.85–17.35 Top
14.35–15.85 Middle
12.85–14.35 Bottom

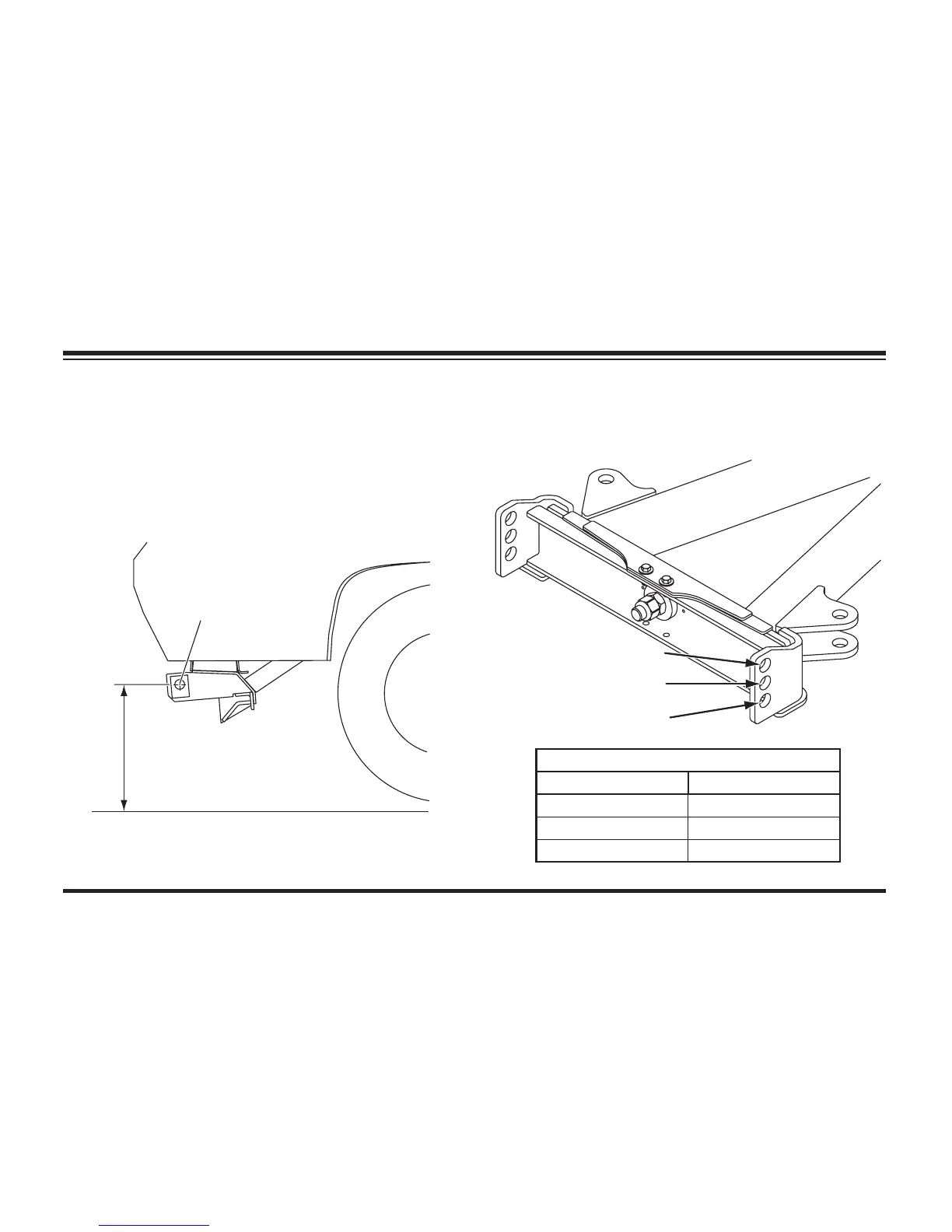

LEVELING THE HDX™ OR HD2™
A-FRAME
After adjusting the attack angle, it might be
necessary to level the A‑frame. Measure the
distance from the center of the connecting pin
hole to the ground.
Measure
this distance
Center of
Connecting
Pin Hole
Top
Middle
