Fisher Minute Mount 2 - Leveling Adjustment Procedure

Lit. No. 43894, Rev. 02 88 November 1, 2016
MAINTENANCE
XtremeV™ & XV2™ CUTTING EDGE
WEAR AND LEVELING ADJUSTMENT
PROCEDURE
Once the snowplow has been installed on
the vehicle in the correct conguration, a ne
adjustment can be done to bring the blade cutting
edges into full contact with the ground. Make
further adjustments as the cutting edges wear in
order to ensure good scraping action.
1. The snowplow must be installed in the correct
conguration on a properly ballasted vehicle.
Vehicle and snowplow must be parked on a
level surface.
2. Place the blade wings in the scoop position on
the ground with no tension on the lift chain.
3. Remove the rear push assembly to T‑frame
fasteners. Loosen the front fasteners and
allow the blade to nd a level position.
4. Select the hole in the rear of the T‑frame that
is best aligned with the rear hole in the push
assembly and reinstall the rear fasteners.
Tighten all four fasteners to 250 ft‑lb.

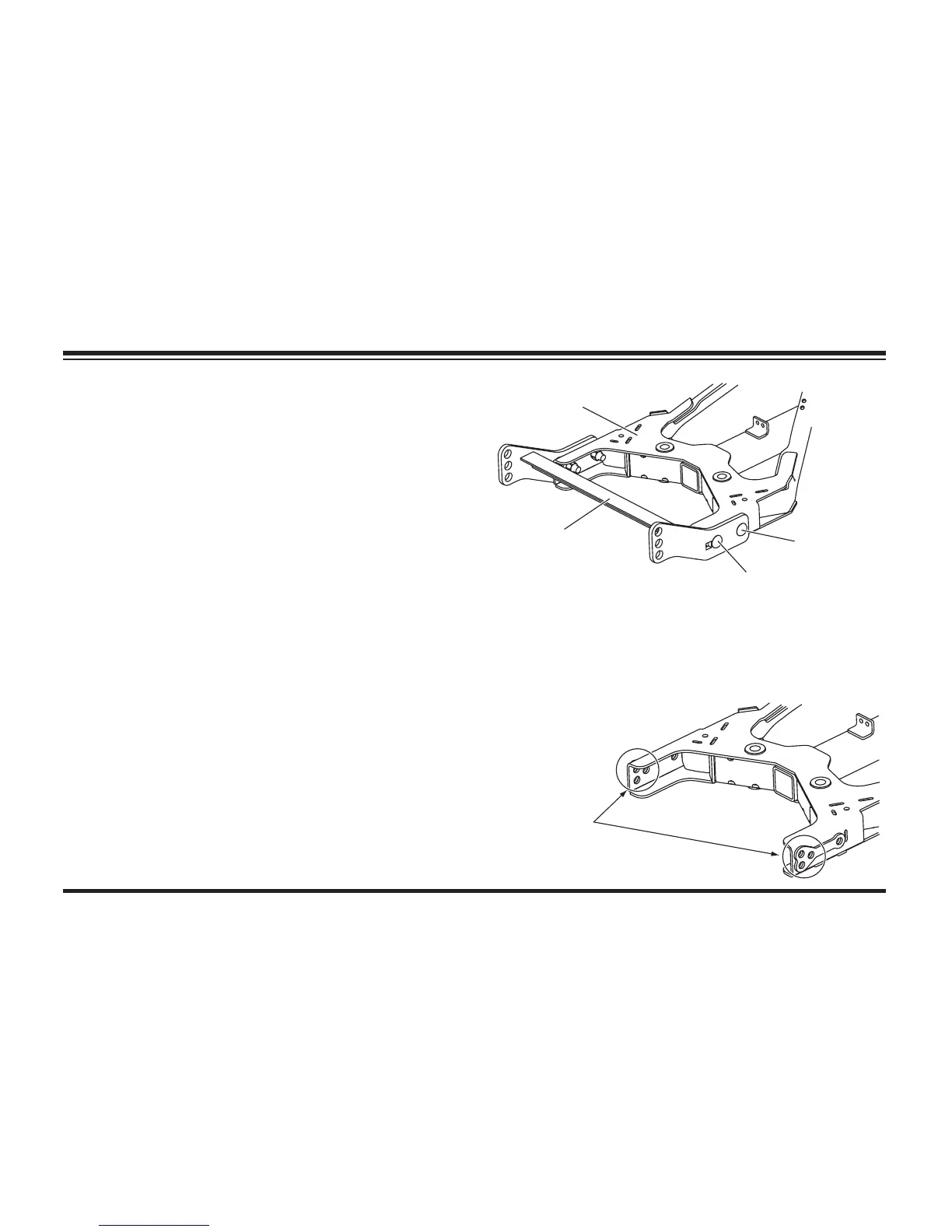

Push
Assembly
T-Frame
Front
Fastener
s
Rear Fasteners
Choose hole
th
at aligns
with hole in
push assembly
.
