Fisher Minute Mount 2 - Greasing the HDX Pivot Beam

Lit. No. 43894, Rev. 02 87 November 1, 2016

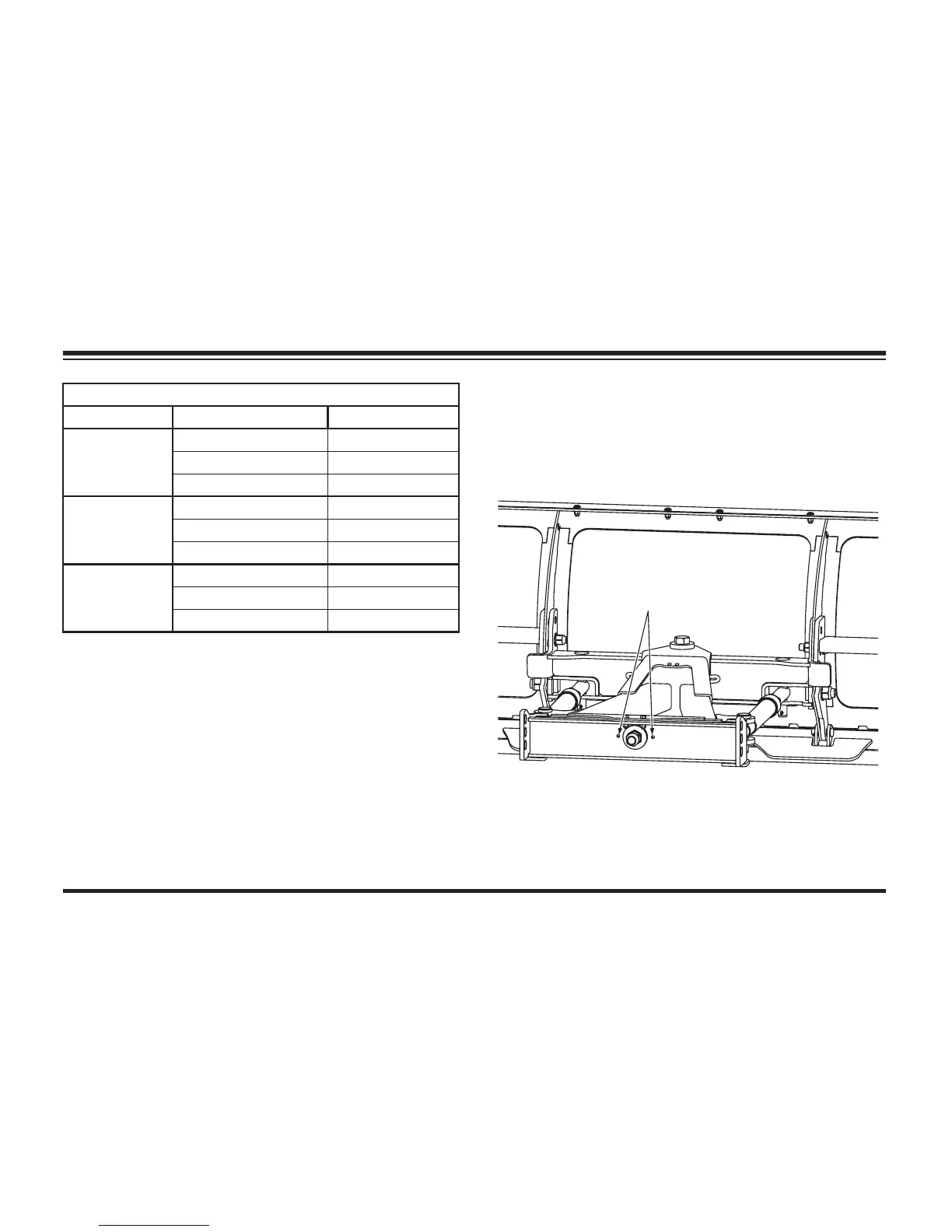

GREASING HDX PIVOT BEAM
1. Using a rubber‑tipped seal‑off coupler, apply
good quality multipurpose grease through the
two grease points in the rear of the pivot beam.
2. Grease the pivot beam at the beginning of the
snowplow season. Reapply as needed during
the season and before putting the snowplow
in storage.
Grease Points
HDX™ Snowplow
Attack Angle
Mount Height (in) A-Frame Hole
75°
16.75–18.25 Top
15.25–16.75 Middle
13.75–15.25 Bottom
65°
15.75 –17.25 Top
14.25–15.75 Middle
12.75–14.25 Bottom
55°
13.95–15.45 Top
12.45–13.95 Middle
10.95–12.45 Bottom
If your truck's mount height falls outside of the
ranges shown, the specied attack angle cannot
be achieved with your vehicle.
MAINTENANCE
