6.7.3 Completing bus connection
MATRIX
2001 3001 4001 4001+IO
99
Connecting master unit MATRIX 3000 – slave units
MATRIX 2000
Units with MATRIX 3000 can be operated with units fitted with
MATRIX 2000.
• Connect control cables in accordance with the wiring
diagram.
– Control cable: see top note on Seite 63.

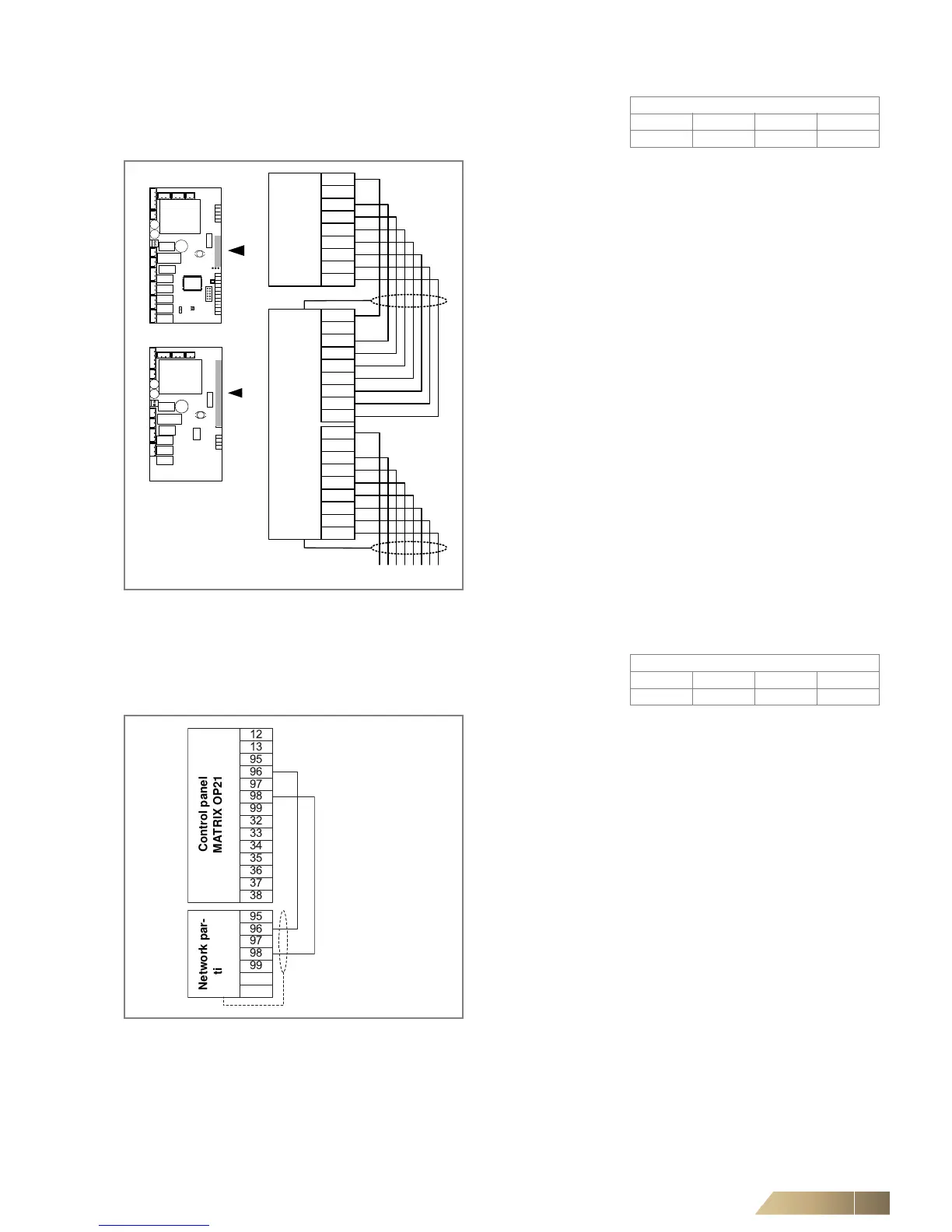

Fig. 6-12: Connecting master unit with slave units
34
33
32
37
36
35
38
40
46
45
44
43
42
41
48
47
31
30
34
33
32
37
36
35
38
31
30
Further slave units
Slave unit
with
MATRIX 3000
Slave unit
with
MATRIX 2000
MATRIX
2001 3001 4001 4001+IO
9
Connecting control panel – network participant
When connecting control panel MATRIX OP21 to MATRIX.Net
network, a 2-wire bus line should be used.
• Connect the control cables in accordance with the wiring
diagram.
– The following cable is recommended for the bus line:
Manufacturer: HELUKABEL
Type: CAN-BUS flexible 2 x 2 x ... mm
2
:
(refer to note on Seite 66 at the bottom)
Fig. 6-13: Connecting control panel – network participant

''
'&
'%
'$
'#
!
!"
!!
!
!%
!$
!#
!&
''
'&
'%
'$
'#
Control panel
MATRIX OP21
Network par-
ticipant
