Electrical connection HyPower-Geko
66 FläktGroup DC-2014-0022-GB 2018-05/R5 • Subject to modifications
6.7.4 Connecting external sensor (option)
MATRIX
2001 3001 4001 4001+IO
9
Control panel connection – air-handling unit
Control panels MATRIX OP3x/44/5x can only be operated with
units fitted with MATRIX 3000 controller electronics.
• Connect the control cables in accordance with the wiring
diagram.
– The following cable is recommended for the bus line:
Manufacturer: HELUKABEL
Type: CAN-BUS flexible 2 x 2 x ... mm
2
:
(refer to note on Seite 66 at the bottom)

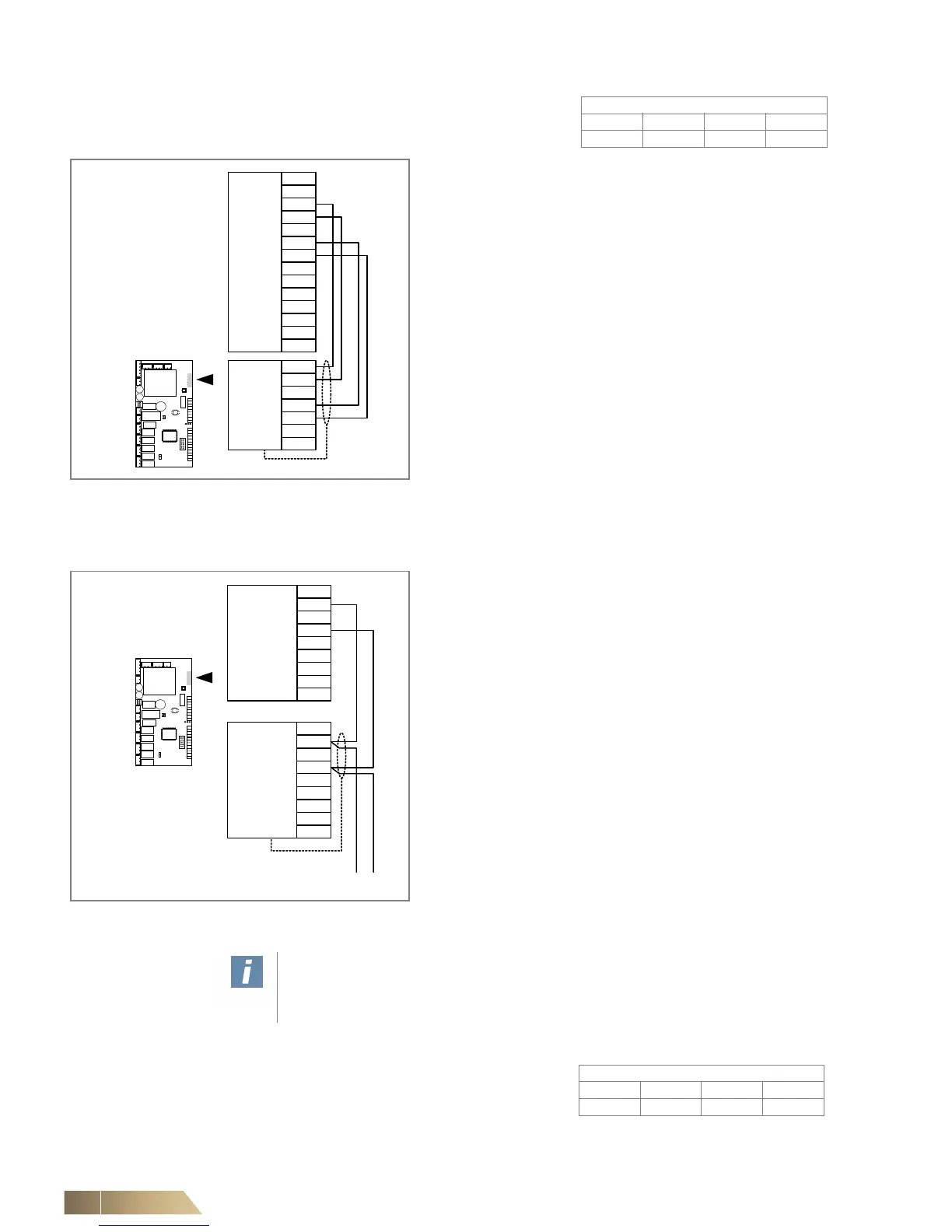

Fig. 6-14: Control panel connection – air-handling unit
12
99
98
97
96
95
13
34
33
32
37
36
35
38
99
98
97
96
95
Control panel
MATRIX OP30 to OP51
Unit with
MATRIX3000
Connecting master unit with slave units
If units are fitted with MATRIX 3000 controllers, a 2-core bus
line must be used.
• Connect the control cables in accordance with the wiring
diagram.
– Individual units can be fitted with MATRIX 3000.
– The following cable is recommended for the bus line:
Manufacturer: HELUKABEL
Type: CAN-BUS flexible 2 x 2 x ... mm
2
:
(refer to note on Seite 66 at the bottom)
Fig. 6-15: Connecting master unit with slave units
User instructions!
For connection, use only twisted-pair wire with braided shield certified according to
DIN 19245 T3 and EN 50170.
Further slave units
99
98
97
96
95
99
98
97
96
95
Slave unit
with
MATRIX 3000
Slave unit
with
MATRIX 3000
MATRIX
2001 3001 4001 4001+IO
