HyPower-Geko Electrical connection
FläktGroup DC-2014-0022-GB 2018-05/R5 • Subject to modifications 67
6.7.5 Connecting the inlet sensor (option)
6.7.6 Connecting room sensor/return-air sensor (option)
Pos. 1: Connecting cable (refer to notice on Seite 63)
• Connect the outdoor sensor according to wiring diagram.

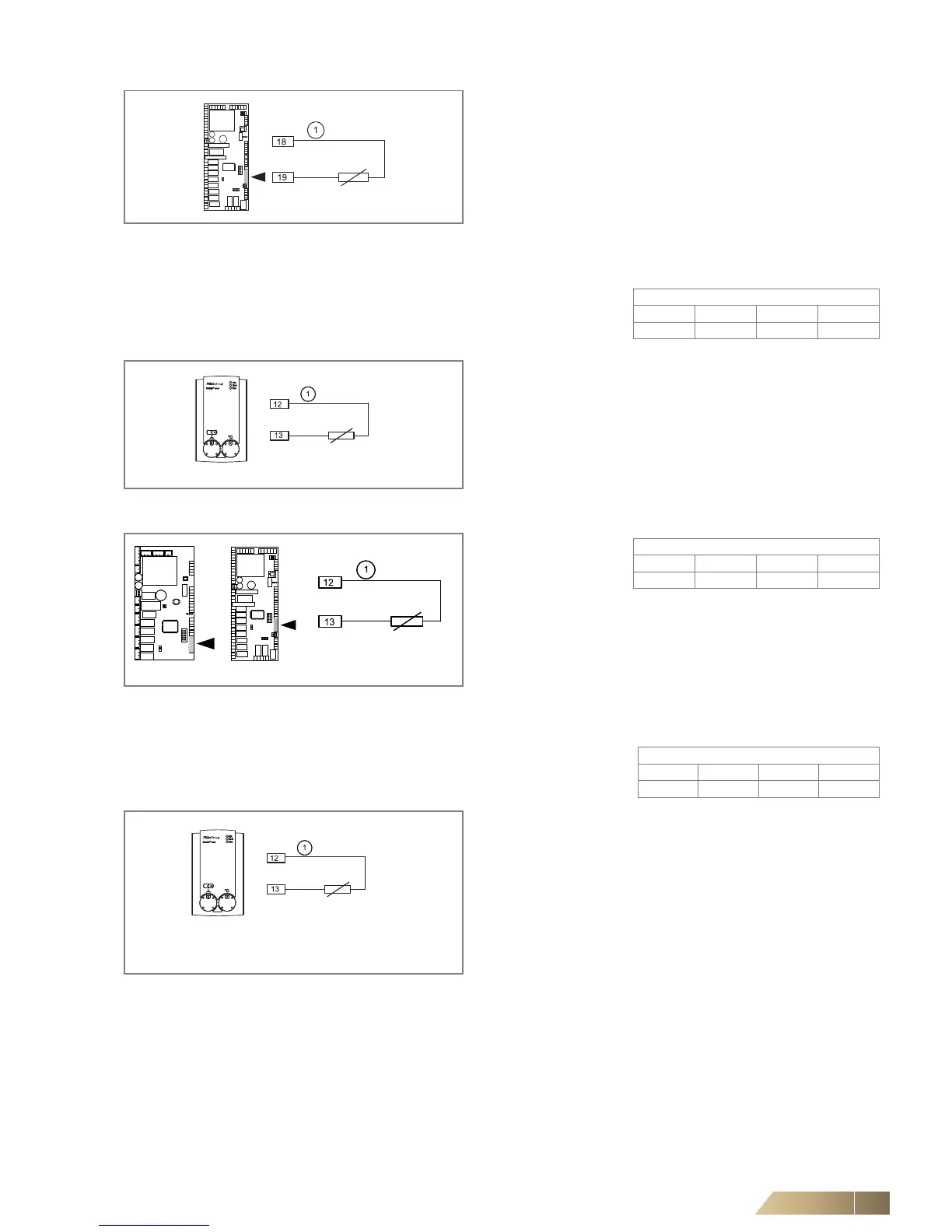

Fig. 6-16: Connecting outdoor sensor
MATRIX
2001 3001 4001 4001+IO
9
Pos. 1: Connecting cable (refer to notice on Seite 63)
• Connect the inlet sensor according to the wiring diagram
(refer to fig. 6-11 on Seite 64). The connecting terminals are
located on the mounting plate of the control panel (refer to
the operation manual for the relevant control panel).
– With 2-pipe change-over units with MATRIX 2000, the con-
nection of an additional room or return-air sensor is only
possible via the AI module.
Fig. 6-17: Connecting inlet sensor
Pos. 1: Connecting cable (refer to notice on Seite 63)
• Connect the inlet sensor according to the wiring diagram.
• Connect the shielding of the sensor line with grounding
clamps to a large ground area!
Fig. 6-18: Connecting inlet sensor
MATRIX
2001 3001 4001 4001+IO
999
MATRIX
2001 3001 4001 4001+IO
9
Pos. 1: Connecting cable (refer to notice on Seite 63)
• Connect the room or return-air sensor according to the
wiring diagram. The connecting terminals are located on the
mounting plate of the control panel (refer to the operation
manual for the relevant control panel).
• With 2-pipe change-over units with MATRIX 2000, the
connection of an additional room or return-air sensor is only
possible via the AI module.
Fig. 6-19: Connecting room sensor/return-air sensor
