HyPower-Geko Electrical connection
FläktGroup DC-2014-0022-GB 2018-05/R5 • Subject to modifications 79
6.10.4 Operating mode Only Cooling (2-pipe system)
*) Intermediate terminals must be set by others on-site.
**) Fan control (terminal diagram depending on selected rotational speed combination, see wiring diagram in the electric switch cabinet.
***) Signal contact condensate pump fault (for wiring on further units, refer to wiring diagram chapter 6.10.1).
****) In case of a condensate pump fault, the switch is automatically disconnected from the power supply.

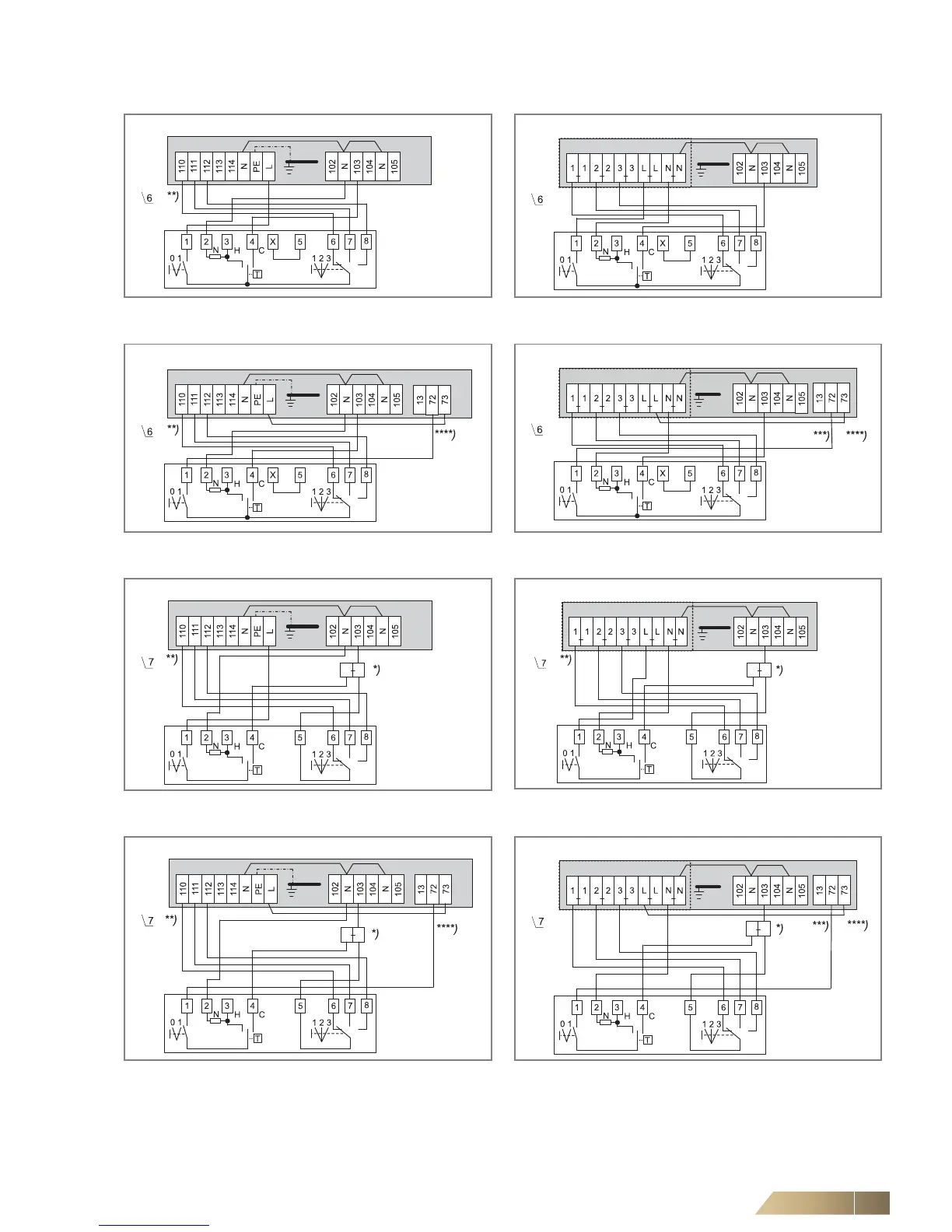

Fig. 6-40: Fan continuous mode and valve control
(unit with terminal strip)
Fig. 6-41: Fan continuous mode and valve control
(unit with relay PCB)
Fig. 6-42: Fan continuous mode and valve control
(unit with terminal strip and condensate pump)
Fig. 6-43: Fan continuous mode and valve control
(unit with relay PCB and condensate pump)
Fig. 6-44: Fan and valve control
(unit with terminal strip)
Fig. 6-45: Fan and valve control
(unit with relay PCB)
Fig. 6-46: Fan and valve control
(unit with terminal strip and condensate pump)
Fig. 6-47: Fan and valve control
(unit with relay PCB and condensate pump)
