We reserve the right to change designs and technical specifications of our products.
21
ENG

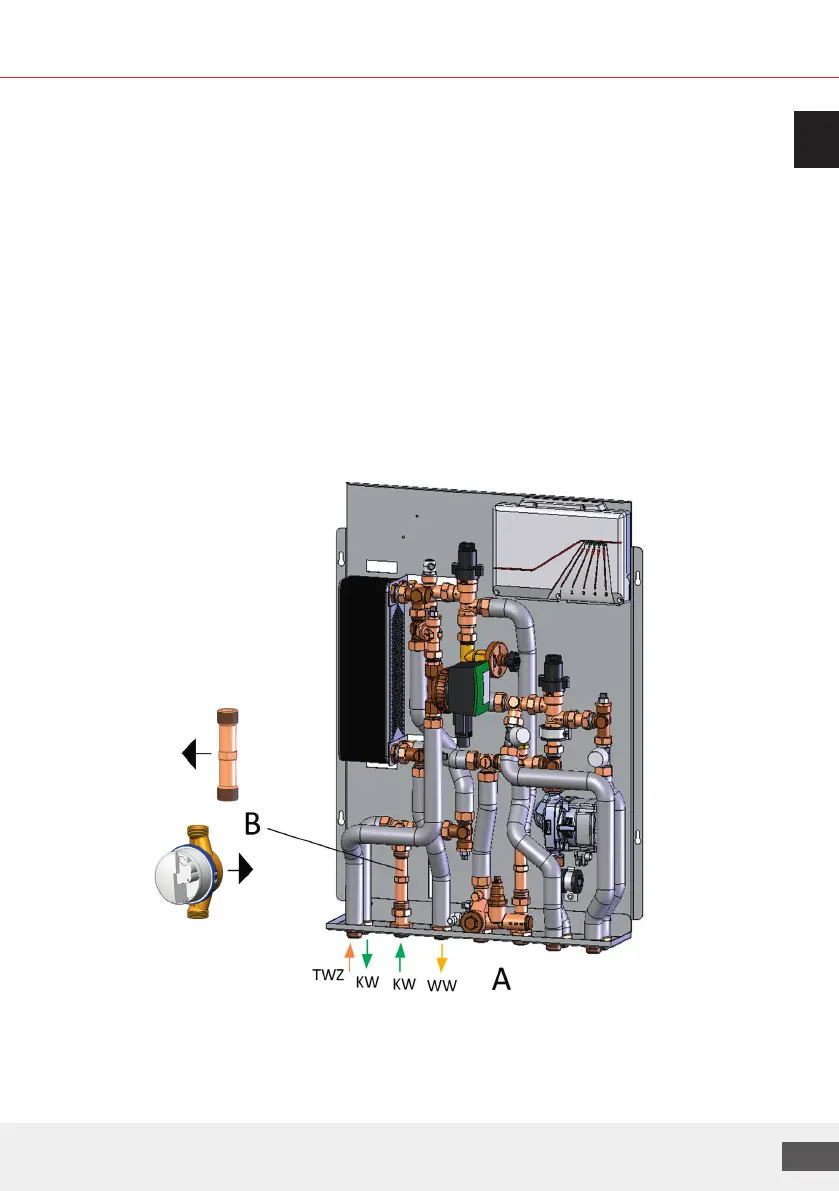

4.2 Optional domestic cold water meter installation
LogoMatic G2 stations are fitted with an adaptor (L = 110 mm, 2 x 3/4") for a cold water meter that
must be removed before the cold water meter is installed.
The corresponding instructions for the water meter must be followed.
Procedure:
1. Close all shut-o valves "A" in the station (if present).
2. Release the threaded joints on adaptor "B". WARNING: Water may leak from the system.
3. Remove the adaptor and insert the cold water meter and screw into place. NOTE: Observe the
direction of flow, use seals.
4. Once the work is complete, re-open the shut-o valve and check the threaded joints for leaks.
DWC
CW CW
HW
