Manual LogoMatic G2
34

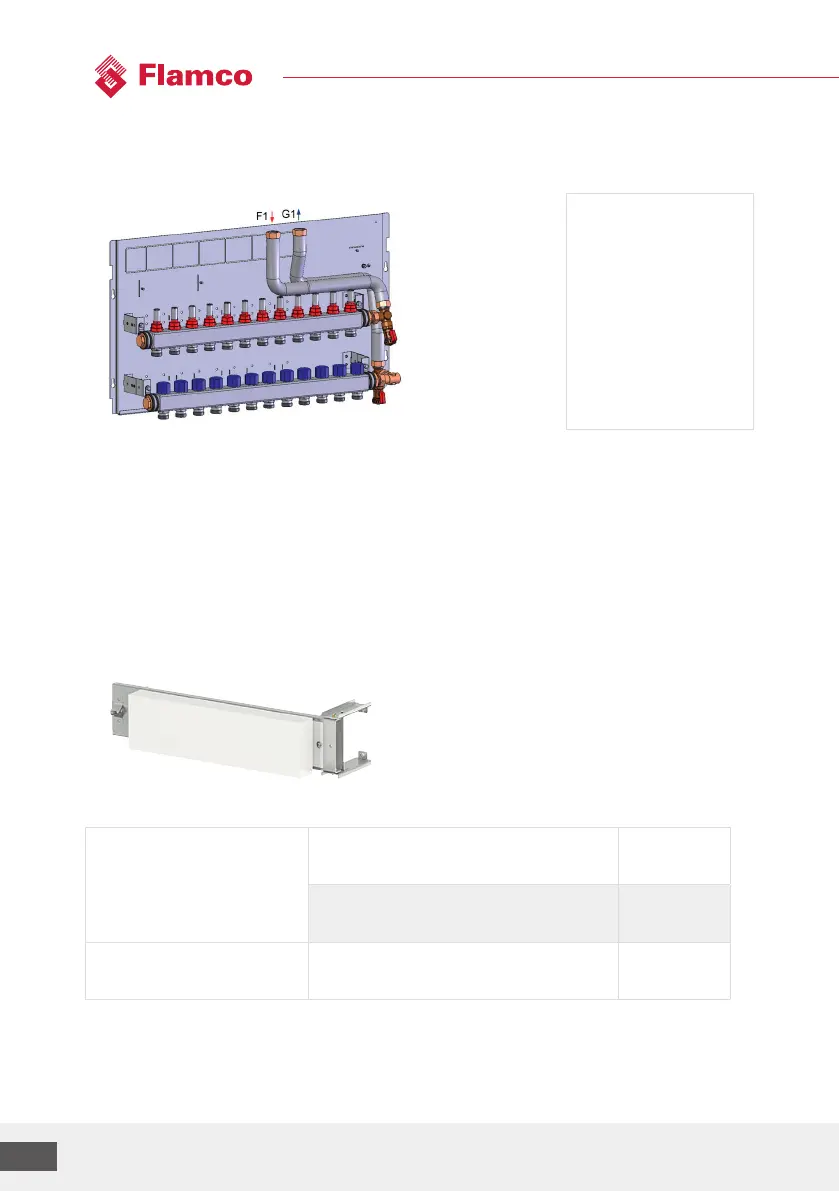

Underfloor manifold (wide version) 9 - 12x heating circuits:
Width x height x depth [mm] 792 x 430 x 140* (dimensions of the housings to be taken into account)
Example representation:
Art. no. for wide
underfloor heating
manifold:
9x: M10512.91
10x: M10512.101
11x: M10512.111
12x: M10512.121
*installation depth increases to 160mm if prewiring packages are used or increases in general if floor
terminal blocks and their mounts are installed.
4.10.2 Terminal strip for underfloor heating circuit manifolds
Information on prewired UFH terminal strip (IP44, supply voltage of actuator 230 V):
- for use with 8 to 12 zones (up to 18 actuators, so that multiple actuators per zone can be connected)
- with pump logic module
- incl. safety temperature limiter (STL) with thermal actuator
- folding retaining plate for terminal strip
Art. no. for UFH terminal strips:
SM/FM variants with sheet steel
housing (FS)
with prewiring concept up to 8 HC / zones MB-10560.06
with prewiring concept up to 12 HC / zones MB-10560.07
SM insulated variants (SI) with prewiring concept up to 8 HC / zones MB-10560.08
Warning:
The actuators needed in each case corresponding to the number of underfloor heating circuits must
be ordered separately!
