4.7.1 High-eiciency heating circuit pump
The additional enclosed documents concerning the pump must be observed.
Depending on the system, the pump must be adjusted/adapted to the
requirements on site.
The GF UPM3 Hybrid 15-70 130 pump is controlled externally by a PWM signal.
Electrical data:
Power supply: 230 V, 50 Hz
Technical data:
Revolution speed P1 (W) I1/1 [A] Operating pressure max. 1.0 MPa
MIN. 2 0.04 Minimum supply pressure: 0.05 MPa
MAX. 53 0.52 Media temperature: +2 to +110 °C
The LEDs (one red/green and 4 yellow) indicate the corresponding operating/alarm status.
Please observe the respective information provided by the pump manufacturer.

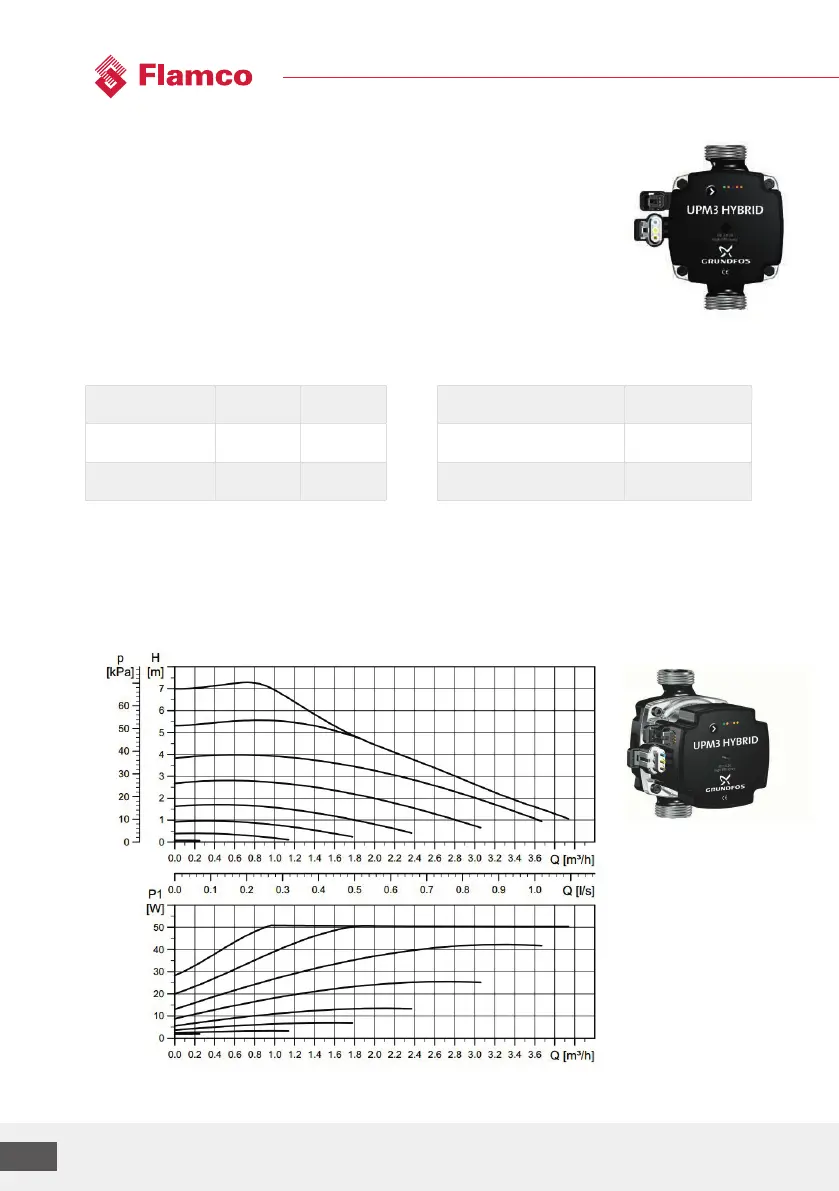

Performance characteristics:
