Manual LogoMatic G2
24

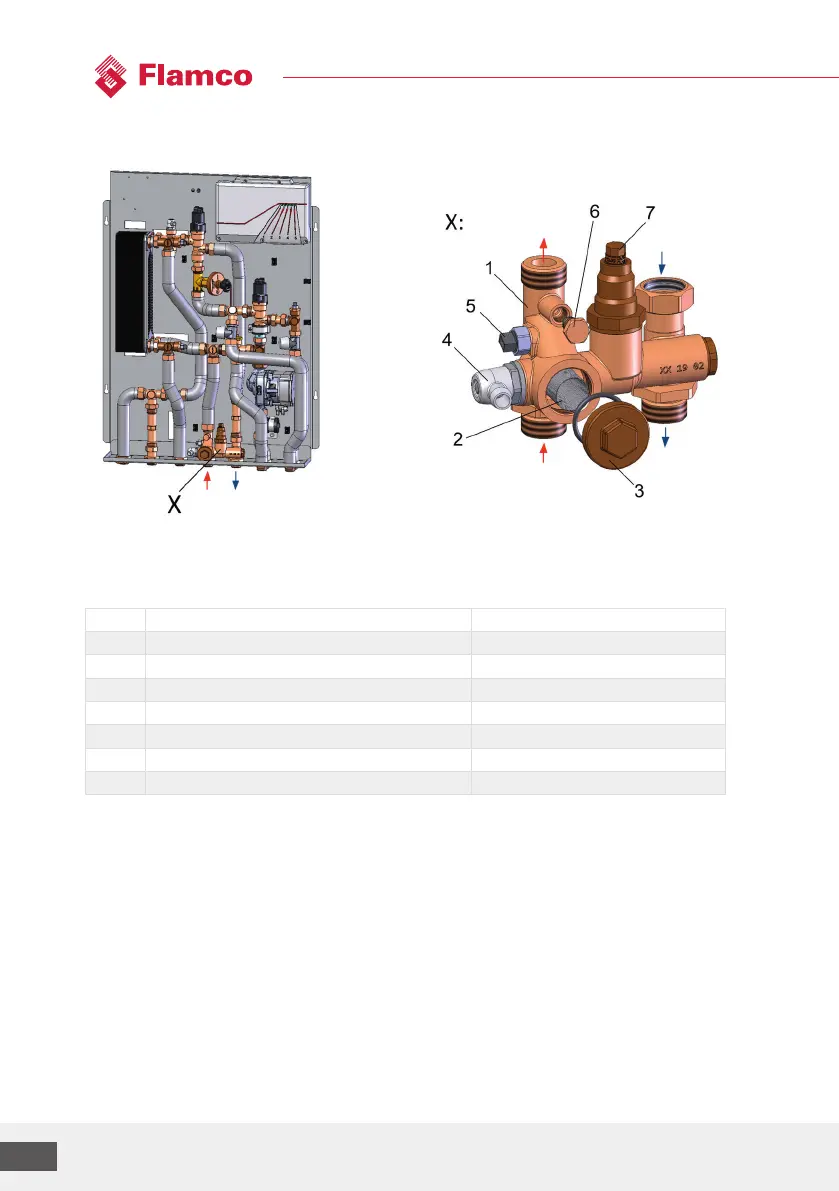

4.4 Dirt trap and thermostatic circulation bridge
Design
X - Multifunction assembly with dirt trap and therm. circulation bridge
Legend
No. Components Comment
1 Multifunctional assembly G¾"
2 Sieve insert for dirt trap D = 20 x 40 mm, mesh size 0.5 mm
3 plugs M30 x 1.5
4 Drainage/emptying plugs G½"
5 Screw-in temperature sensor G1/8"
6 Plug for optional HFM temp. sensor M10x1
7 Thermal Circulation bridge with setting spindle Adjustment range: 35 – 65 °C
The dirt trap in the station’s heating water inlet protects the system against sludge and impurities.
These can be flushed through by opening the locking plug (3) The station must be depressurised
beforehand.
The thermostatic circulation bridge guarantees lag-free provision of the heating medium for
water heating. The supply temperature can be continuously adjusted between 35 °C and 65 °C
on the temperature scale. Adjust the value by screwing the spindle in or out with an open-ended
spanner(11 mm).
Factory setting: closed (fully turned in, right stop)
Note: When using an optional HFM, the volume flow transferred via the therm. circulation bridge
is not taken into account.
FL RL
FL
RL
