7. Pressure loss characteristic curves
Note: Please refer to our current LogoMatic G2 product brochure for performance diagrams.

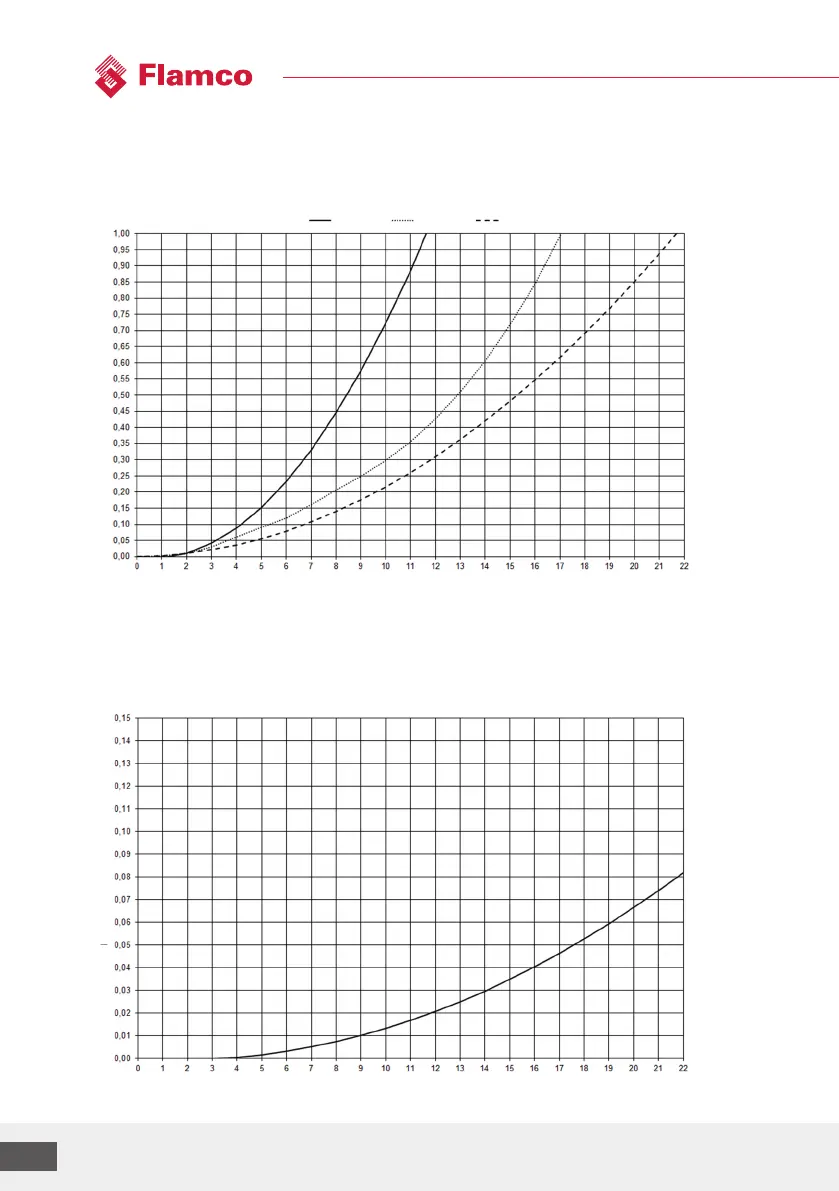

Pressure loss on the secondary side of the device (hot water section) in dependence on drawn o domestic water
volume
Pressure loss on the secondary side of the device (cold water section) in dependence on drawn o
domestic water volume
Pressure loss [bar]
Pressure loss [bar]
Domestic water draw-o rate
[l/min]
Domestic water draw-o rate
[l/min]
S-Line M-Line L-Line
