3.4 Installation
Please follow the safety instructions in this document and any additional assembly instructions
of other components during installation! Installing and operating the stations incorrectly will
invalidate any warranty claims.
Installation options: depending on variant, either surface- (SM) or flush-mounted (FM) on a wall.
Note: for FM variants, optional insulating plates and strips are available separately.

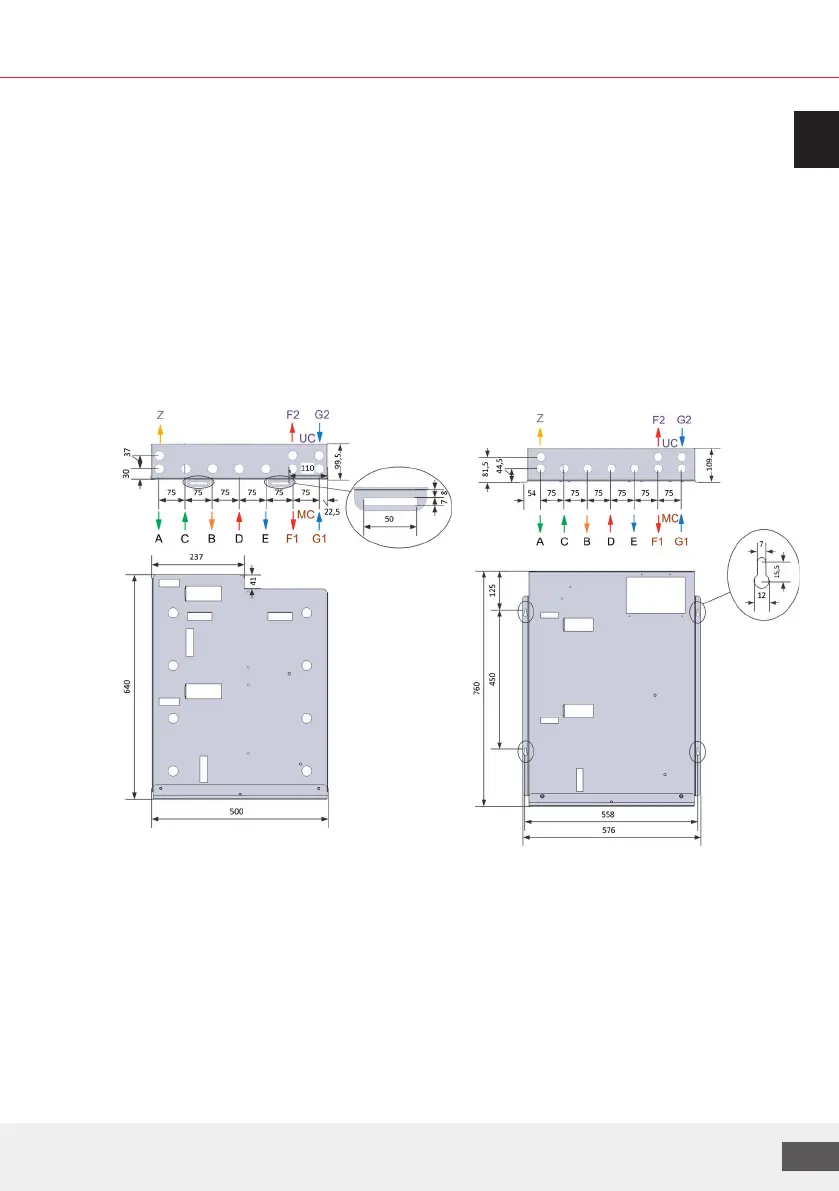

Dimensions of base plates (sheets without insulation):
for insulated variant (SM isolated/ SI)
For steel variant (SM/FM)
