Manual LogoMatic G2
36

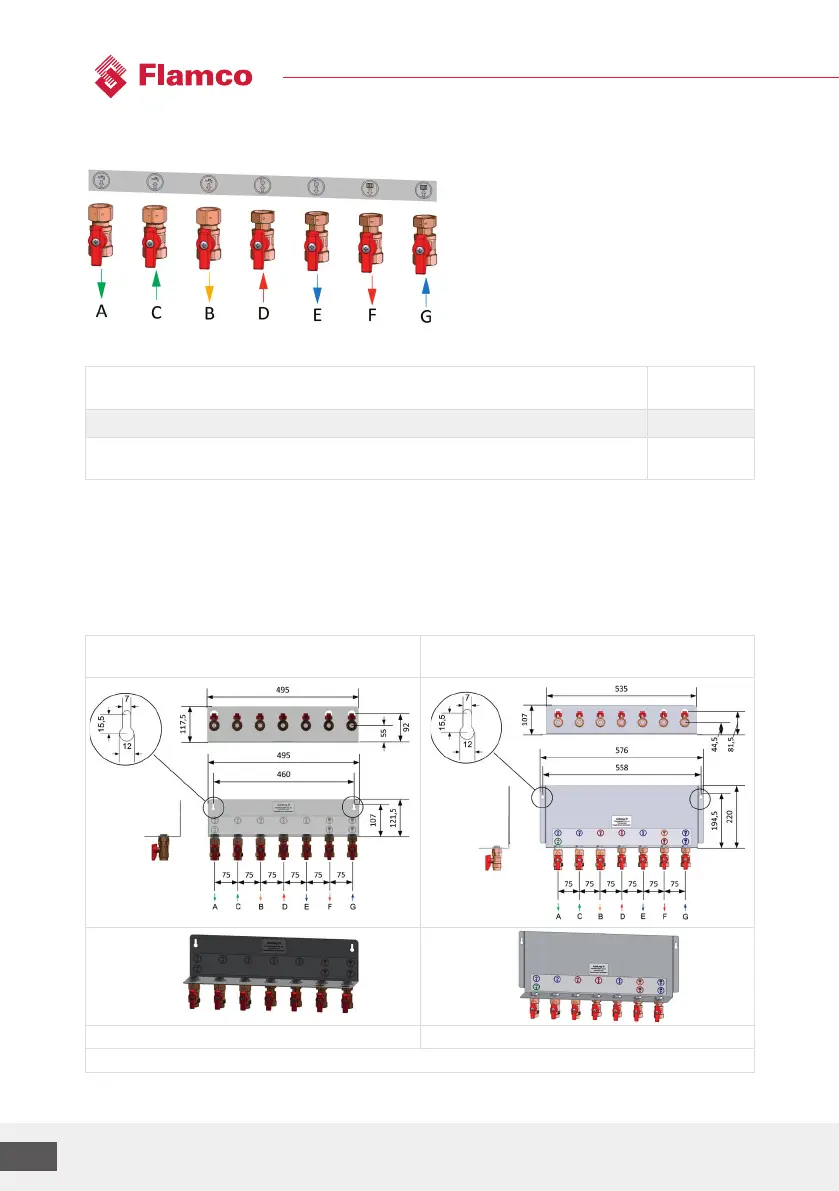

4.10.4 Ball valve sets, DN 20 straight (BV)
Legend see chapter 3.3
Ball valves with ¾" FT x ¾" FT union nut, domestic water ball valves DVGW tested Art. no.
7x ball valves (3x for domestic water connection) and ¾ gaskets M10252.391
5x ball valves (3x for domestic water connection) and ¾ gaskets
for e.g. variants with heating circuit manifolds
M10252.39
Note: Please follow the separate instructions for the ball valve sets.
4.10.5 Mounting rails with ball valves (FFR)
There are two dierent variants:
for SI (SM) stations (surface-mounted version
as insulated housing)
for FS (SM/FM) stations (surface-/flush-
mounted version as sheet steel housing)
Art. No.: M10203.762 Art. No.: M10203.749
in each case incl. 7x ¾" straight-way ball valves, seals, plugs and the circuit diagram
Note: Please use plastic plugs only to fix the ball valves.
