flamco LogoMatic G2 - Complete Station Sample Configurations; LM G2 SI;SM Variant Configurations

We reserve the right to change designs and technical specifications of our products.
39
ENG
4.10.7 Sample configurations (or complete stations CS)
Overview of complete stations (CS) LM G2, M-Line:
Model Heating
type
copper-soldered PHE (CU) sealed copper-soldered
PHE(SX)
SI insulated
SMversion
UC M11114.1HKAP (see example I) M11114.1HKAPSX
6MC M11114.61MKAP M11114.61MKAPSX
8MC-UC M11114.81MKAP M11114.81MKAPSX
(see example II)
SM/FM or SF with
sheet steel housing
UC M11114.1HKUP M11114.1HKUPSX
6MC M11114.61MKUP M11114.61MKUPSX
8MC-UC M11114.81MKUP M11114.81MKUPSX
(see example III)

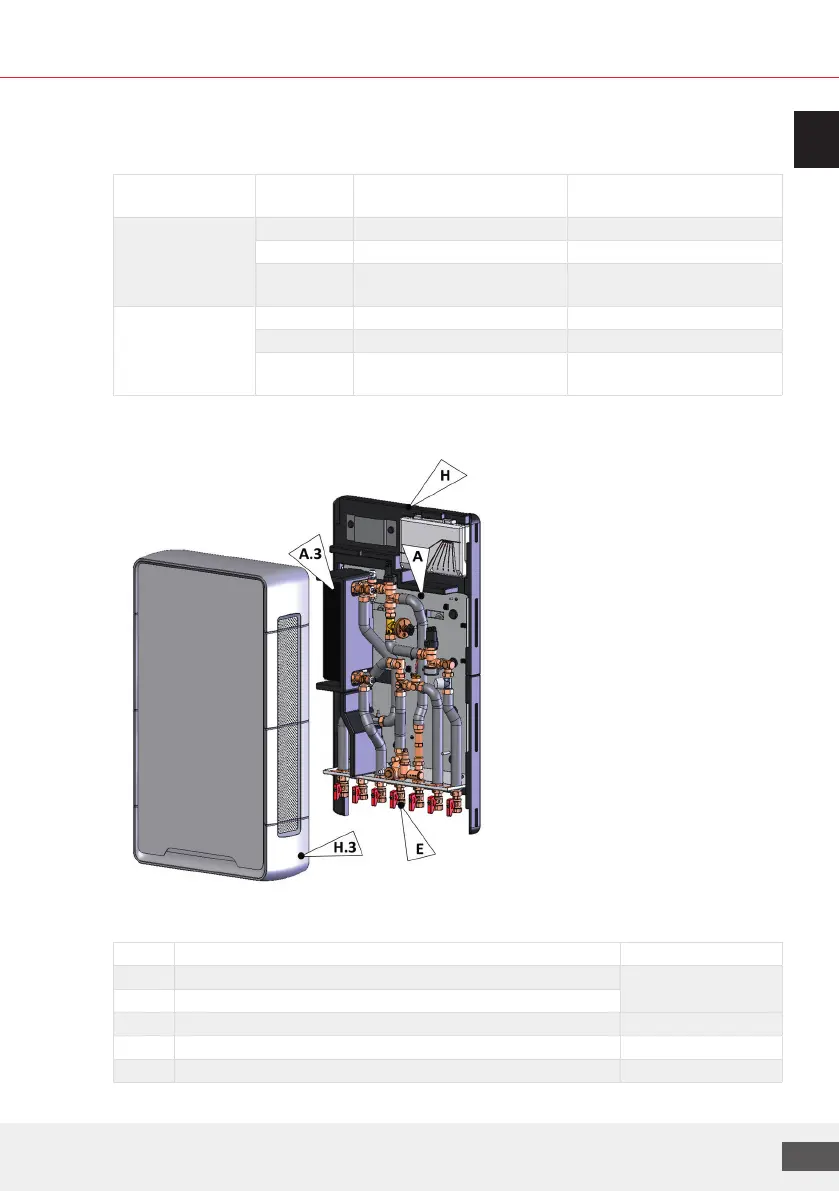

I) LogoMatic G2 UC-SI, M-Line, with ball valves
component list (I) or as complete station CS: M11114.1HKAP
Pos. Designation Art. no. (example)
A LM G2 prefabricated station as SI (SM), M-Line, UC, without DWC
M11114.44
A.3 copper-soldered PHE (CU)
E 7x ball valves, DN20, straight M10252.391
H SM Insulation SI, rear included with pos. H.3
H.3 Designer insulated housing SI (standard version) with fascia panel M66306.665
