Manual LogoMatic G2
38

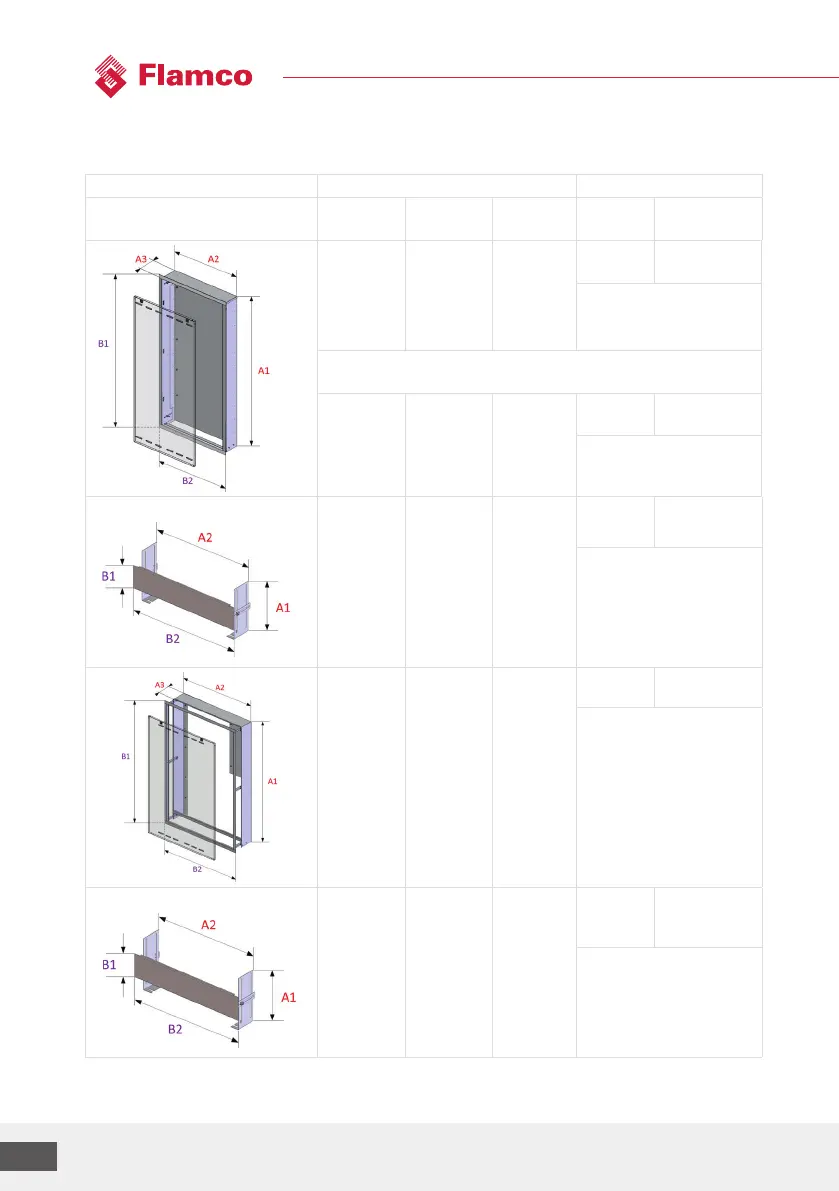

4.10.6.3 Overview of flush-mounted hoods (F or FM)
Example representation
Fig. FM, dimensions in [mm] Installation dimensions A Installation dimensions B
FM cover, completely enclosed,
coated steel in white (RAL 9016)
Height A1 Width A2 Depth A3
(from-to)
Panel
height B1
Panel
widthB2
930 610 110-160 953 655
Art. no.: M11100.38
Plastic design:
M11100.38K
for variants with underfloor heating connection (manifold with
max. 8 circuits):
1300 610 130-210 1327 655
Art. no.: M11100.39
Plastic design:
M11100.39K
Height-adjustable feet with cover trim 220 610 Height
adjustable
from: 100
to 170 mm
100 655
Art. no.: M11100.21
Note: for hoods
M11100.38 /-38K
Art. no.: M11100.35
1295 826 Depth:
(150 or)
165 to
245mm
1322 871
Art. no.: M11100.42
(Design for wide UFH
manifolds)
Plastic design: Art. no.:
M11100.29K
Height-adjustable feet with cover trim 220 826 Height
adjustable
from: 100
to 170 mm
100 871
Art. no.: M11100.71
Note:
One additional factory-supplied thermal insulation pack per FM hood is available, art. no.: M66306.667
