4.10.3 Static heating circuit (with MC-UC variants) and simultaneous heating circuit distribution

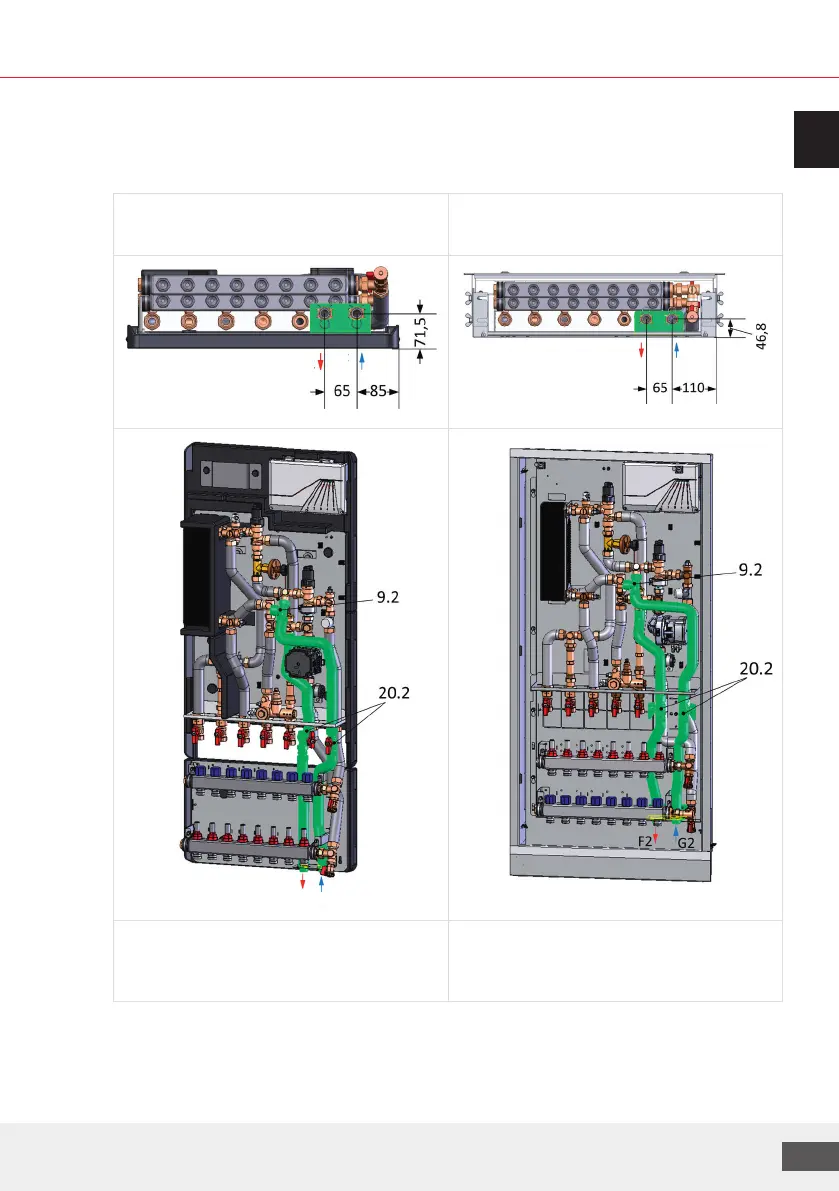

Sample depiction of extension of the static heating circuit (UC-L) with ¾" MT connection
with LogoMatic G2 MC-UC-SI variants
(surface-mounted version
asinsulatedhousing)
with LogoMatic G2 MC-UC-FS variants
(surface-/flush-mounted version as sheet
steelhousing)
Lower extension:
Art. no.: M10253.21
Lower extension:
Art. no.: (up to 8 HC MC) M10253.19
(for wider version up to 12 HC) M10253.20
Legend:
(9.2) Zone valve for static heating circuit (UC)
(20.2) Shut-o ball valves in both UC flow/return line (F2/G2)
F2
G2
UC
F2
G2
UC
F2
G2
