FLENDER N-BIPEX BWN - Type BNT; Table 11-2 Replacement Parts List for BWT Type; Table 11-3 Spare Parts List for Type BNT; Figure 11-3 Spare Parts Drawing for Type BNT

Spare parts
11.2 Spare parts drawing and spare parts list
M3401-02en Edition 09/2022 53
Design A Design B Design AB
Part num-
ber
Designation Part num-
ber
Designation Part num-
ber
Designation
3 Coupling part 3 4 Coupling part 4 4 Coupling part 4
50 Cam ring 50 Cam ring 50 Cam ring
101 TAPER clamping bush 101 TAPER clamping bush 101 TAPER clamping bush
102 TAPER clamping bush 102 TAPER clamping bush 102 TAPER clamping bush
Table11-2: Replacement parts list for BWT type
11.2.3 Type BNT11.2 Spare parts drawing and spare parts list












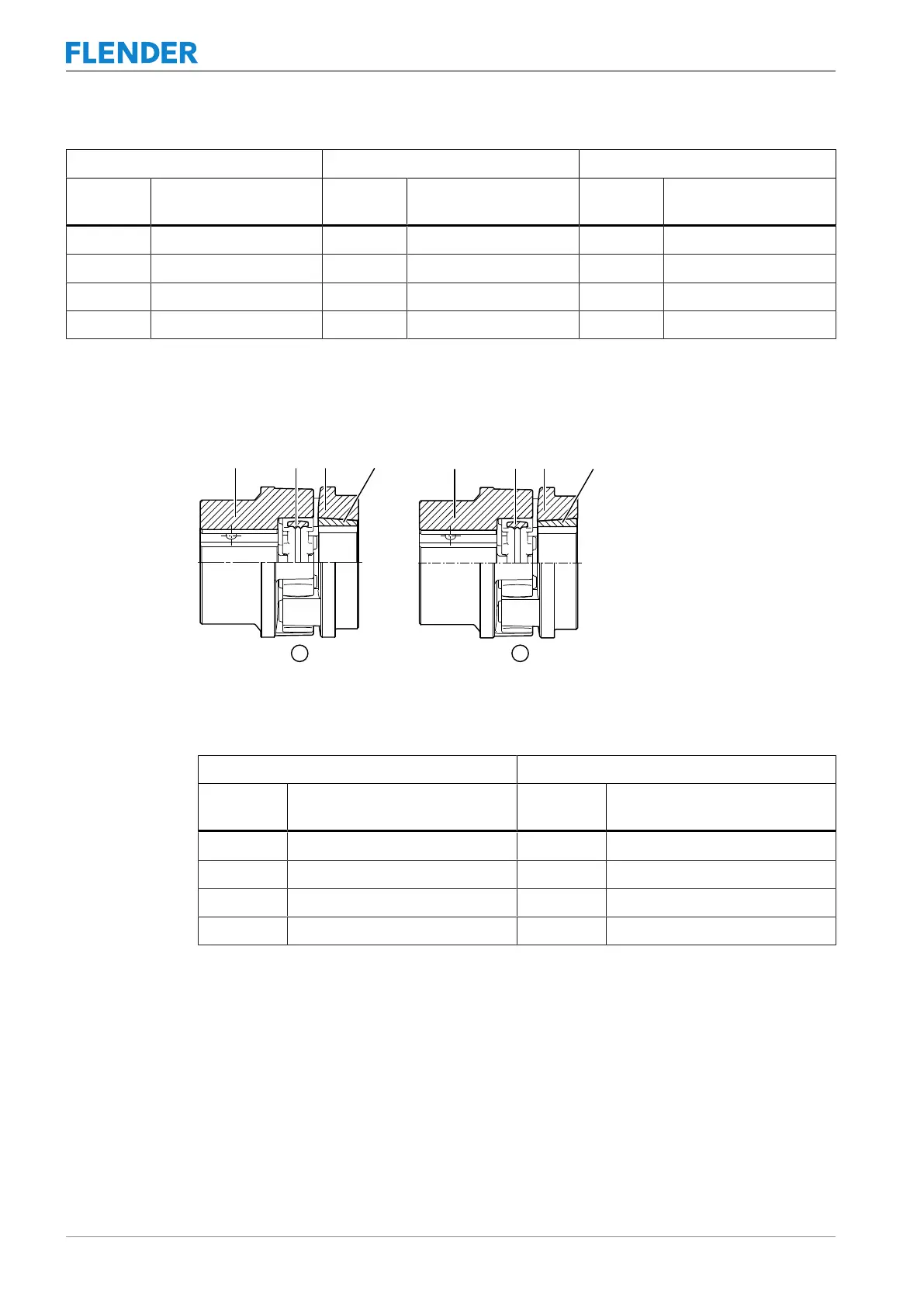

Figure11-3:Spare parts drawing for type BNT
① Design A
② Design B
Design A Design B
Part num-
ber
Designation Part num-
ber
Designation
1 Coupling part 1/2 1 Coupling part 1/2
3 Coupling part 3 4 Coupling part 4
50 Cam ring 50 Cam ring
102 TAPER clamping bush 102 TAPER clamping bush
Table11-3: Spare parts list for type BNT
