FLENDER N-BIPEX BWN - Technical data; A.1 Speeds, geometry data and weights

M3401-02en Edition 09/2022 55
Technical data
A
A.1 Speeds, geometry data and weights Speeds, geometry data and weights
In this section you can find dimension drawings and technical data for N-BIPEX couplings of
the following types:
• BWN type (Page55)
• BWT type (Page56)
• BNT type (Page58)
A.1.1 BWN type Speeds, geometry data and weights
' '
'(
1'
6
'$
'
1'
61/1/




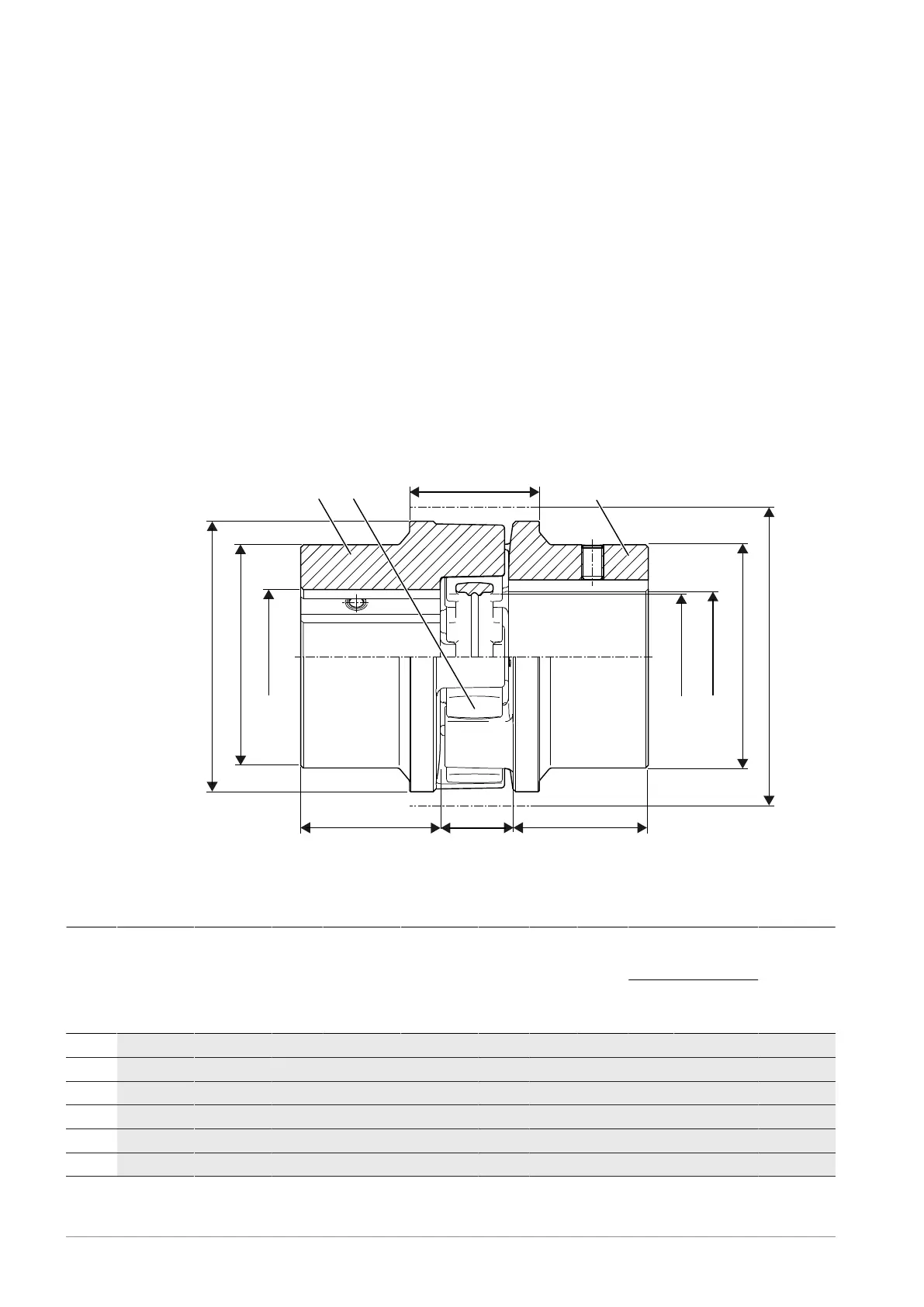

FigureA-1:BWN type
1 Coupling part 1/2
2 Coupling part 1/2
Size Speed
n
max
rpm
D1 / D2
max.
1)
mm
DA
mm

ND1 / ND2
mm
NL1 / NL2
mm
D3
mm
DE
2)
mm
S
mm
S2
Weight
3)
m
kg
mm
perm dev.
mm
19 19,500 25 42 38 25 17 46 16 31 ± 1 0.3
24 14,500 35 57 50 30 25 62 18 37 ± 1.5 0.6
28 12,500 40 67 58 35 28 73 20 41 ± 1 1
38 10,000 48 82 68 45 36 89 24 45 ± 1.5 1.7
42 8,500 55 97 80 50 43 105 26 48 ± 1.5 2.6
48 7,500 62 107 90 56 48 116 28 50 ± 2 3.6
