Flexim FLUXUS F501 User Manual

16 Advanced functions
FLUXUS F501 16.10 Behavior of the alarm outputs
113
UMFLUXUS_F501V1-3EN, 2020-06-30
16.10.5 Deactivation of an alarm output
If the programmed outputs are no longer required, they can be deactivated. The configuration of a deactivated output is
stored and will be available if the output is activated again.
• Select no in Output Options\Alarm Output to deactivate an output.
• Press ENTER.

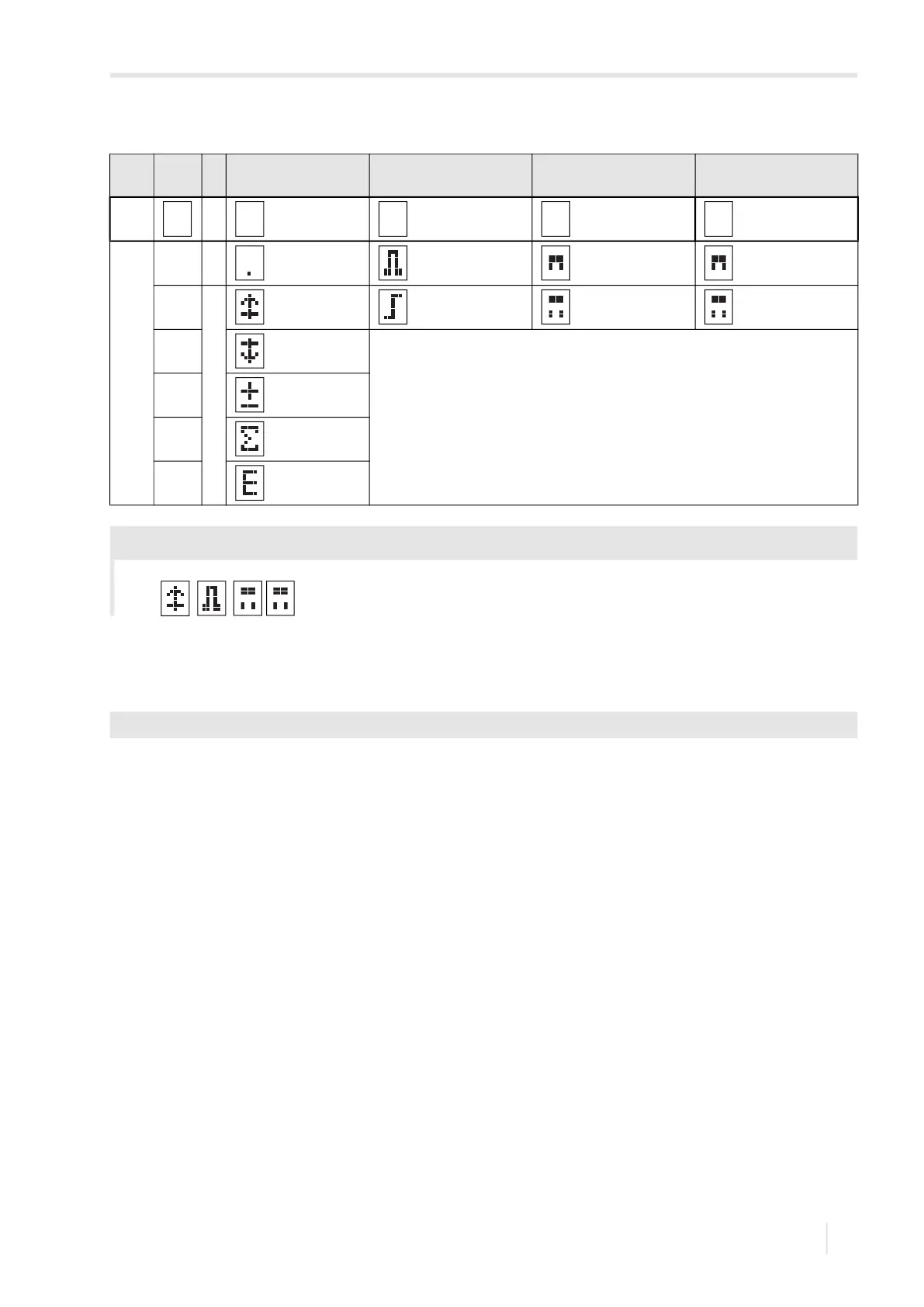

Tab. 16.3: Pictograms for the alarm state indication
no. func
(switching condition)
typ
(holding behavior)
mode
(switching function)
current state
R =
OFF NON-HOLD NO Cont. closed
1 MAX HOLD NC Cont. open
2 MIN
3 +→- -→+
QUANT.
ERROR
Example
R1 =
Output Options\...\Alarm Output
