4 Product description
4.1 Measuring system
The measurement system consists of a transmitter, the ultrasonic transducers and the pipe on which the measurement is
carried out, see Fig. 4.1.
The ultrasonic transducers are mounted on the pipe. They send and receive ultrasonic signals through the fluid.
The transmitter controls the measuring cycle, eliminates noise signals and analyzes useful signals. The measured values
can be displayed, used for calculations and transmitted by the transmitter.
4.2 Handling concept
The selected program branch is displayed in angle brackets and capital letters, see Fig. 4.2. The complete name of the selected
program branch is displayed in the lower line.
Select a program branch with key and . Press ENTER.
• par (Parameter)
• mea (Measuring)
• opt (Output Options)
• sf (Special Funct.)

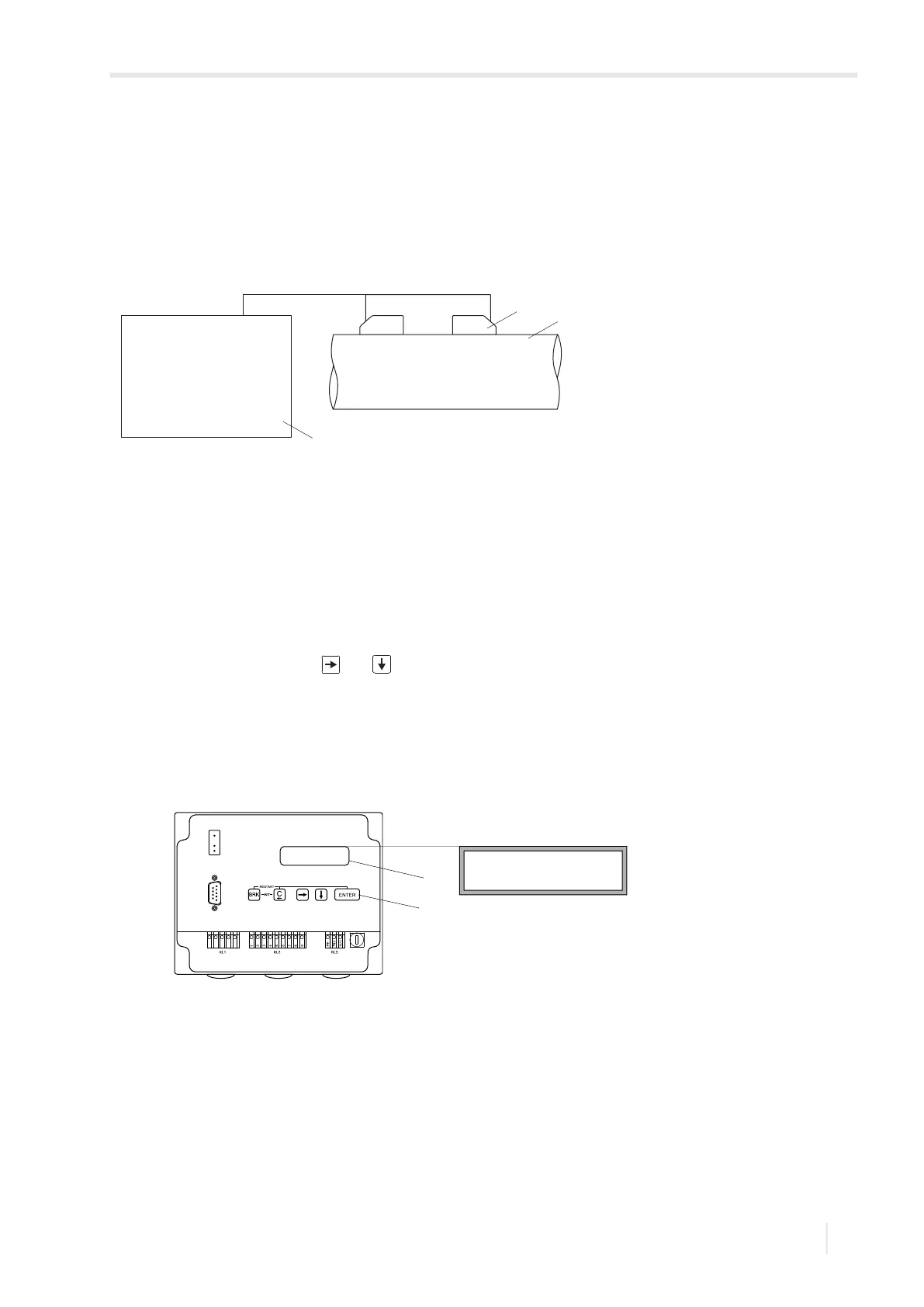

Fig. 4.1: Example for a measurement arrangement
1 – transducer
2 – pipe
3 – transmitter
Fig. 4.2: Command panel of the transmitter
1 – display
2 – keyboard
1
2
3
AV AVS AGN ARS AR
1
2
>PAR< mea opt sf
Parameter
