7 Connection
FLUXUS F501 7.4 Serial interfaces
61
UMFLUXUS_F501V1-3EN, 2020-06-30
7 Connection
7.4 Serial interfaces
7.4.1 RS232 service interface
The RS232 service interface is located on the front plate of the transmitter, see Fig. 7.12.
• Connect the RS232 cable to the transmitter and the serial interface of the PC. If the RS232 cable cannot be connected to
the PC, use the RS232/USB adapter.
The RS232/USB adapter and the RS232 cable are part of the serial data kit (optional).
7.4.2 RS485 process interface
The transmitter can also be equipped with an RS485 interface (optional).
For the connection of the RS485 cable to the transmitter, see section 7.2.1, Fig. 7.12 and Tab. 7.7.
Notice!
If a problem occurs when using the RS232/USB adapter for connection, contact your system administrator.

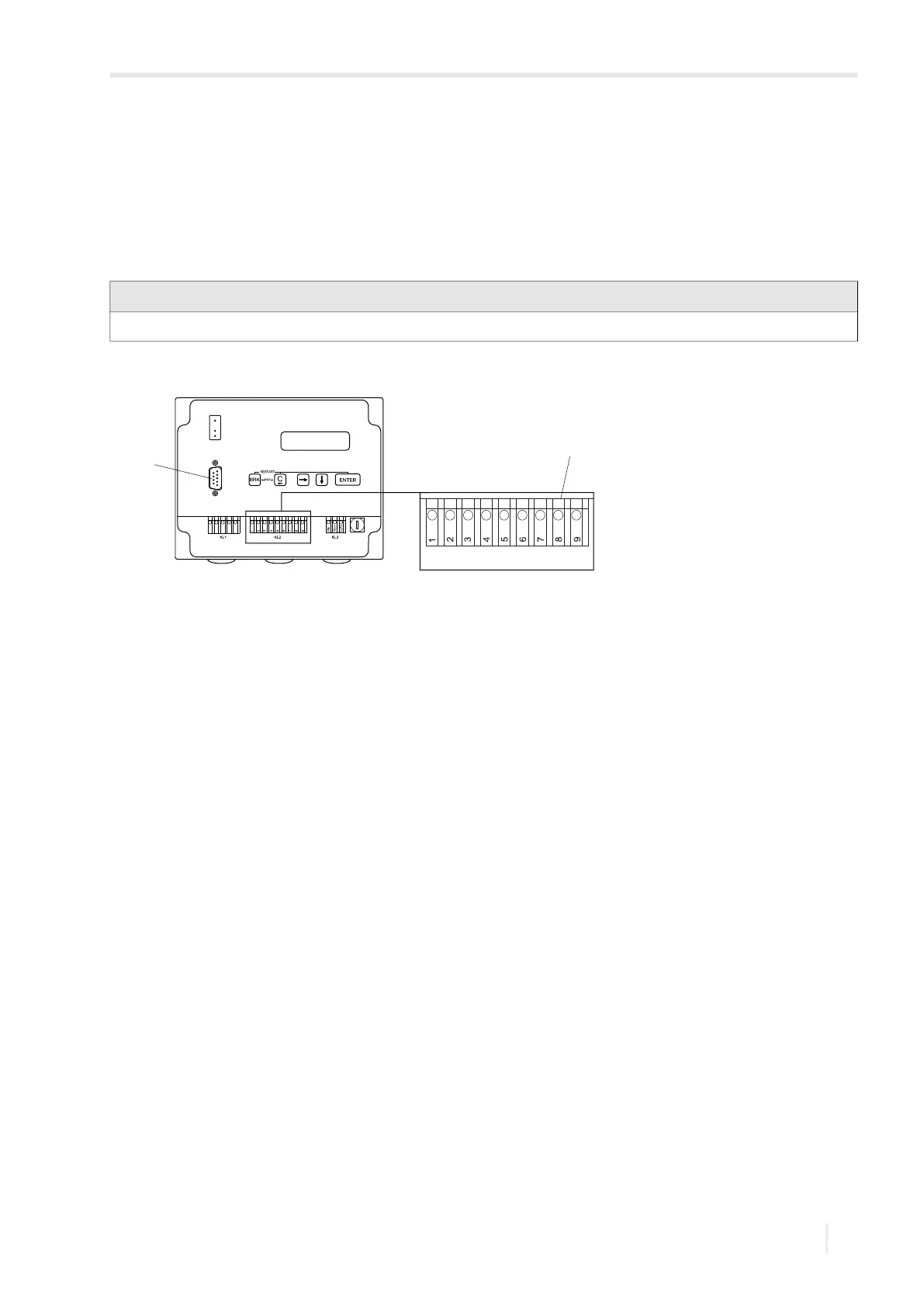

Fig. 7.12: Transmitter
1 – RS232 service interface
2 – connection of the RS485 process interface (option)
1
2
