3 General principles
3.4 Undisturbed flow profile FLUXUS F501
2020-06-30, UMFLUXUS_F501V1-3EN
18
disturbance source: valve
inlet: l 40 D outlet: l 5 D
disturbance source: reducer
inlet: l 10 D outlet: l 5 D
disturbance source: pump
inlet: l 20 D

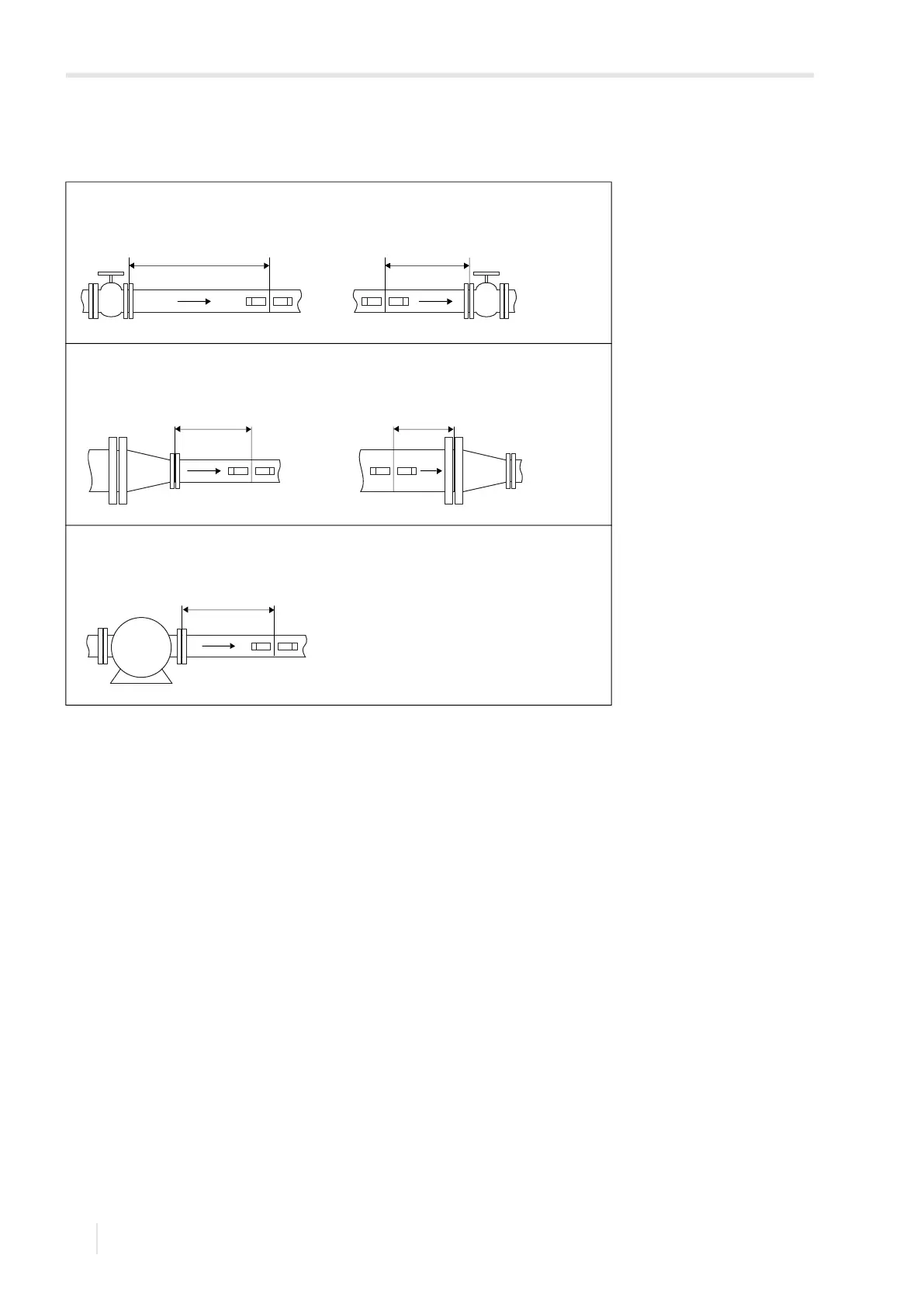

Tab. 3.1: Recommended distance from disturbance sources
D – nominal pipe diameter at the measuring point
l – recommended distance between disturbance source and transducer position
l l
l l
l
