3 General principles
FLUXUS F501 3.2 Measurement arrangements
15
UMFLUXUS_F501V1-3EN, 2020-06-30
Transducer distance
The transducer distance is measured between the inner edges of the transducers.
Sound beam plane
plane, containing sound paths or beams

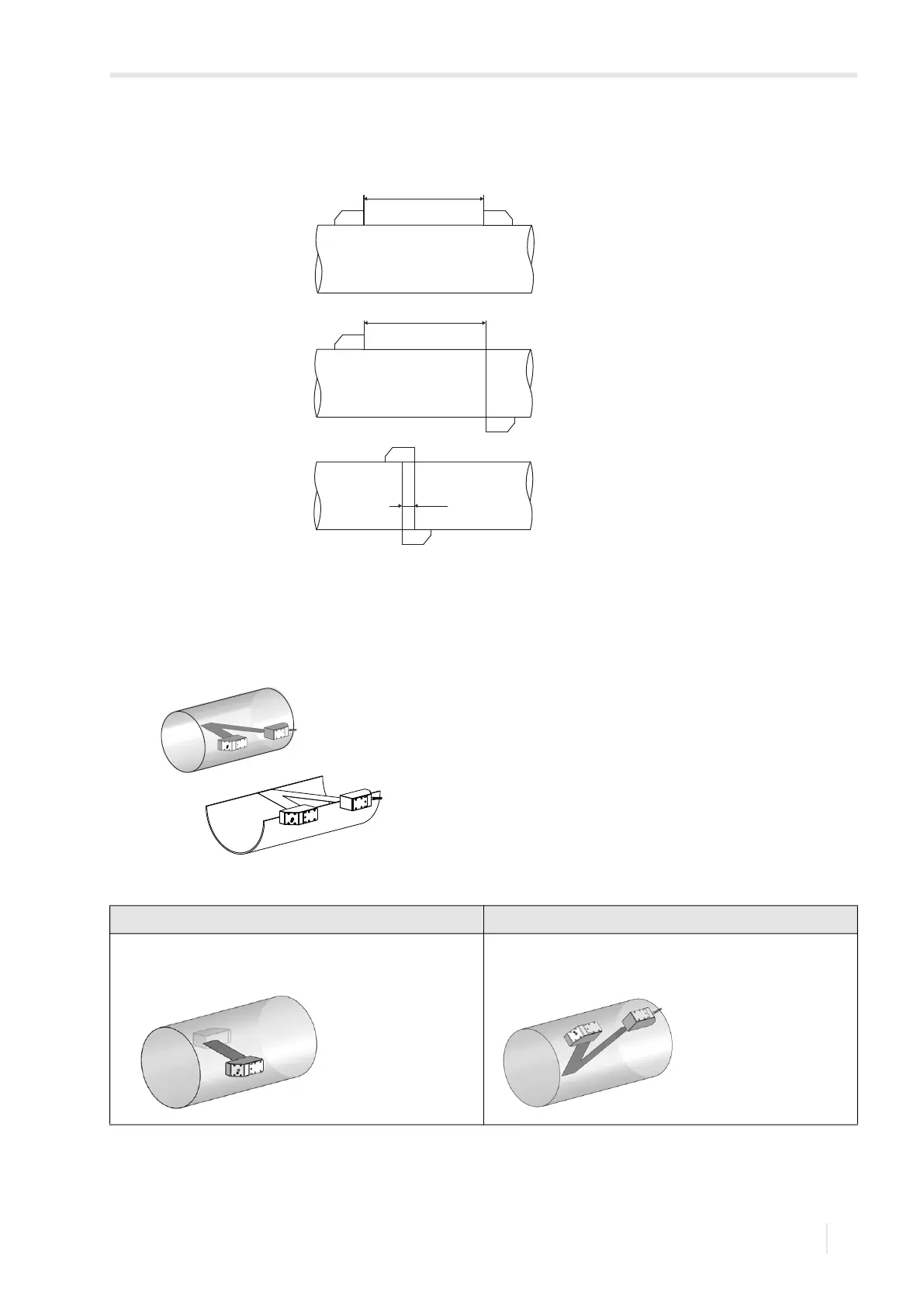

3.2.2 Examples
reflection arrangement
diagonal arrangement
(positive transducer distance)
diagonal arrangement
(negative transducer distance)
a – transducer distance
Fig. 3.8: 2 sound paths in 1 plane
Diagonal arrangement with 1 beam Reflection arrangement with 1 beam
1 transducer pair
1 sound path
1 transducer pair
2 sound paths
a
a
a
