6 Installation
FLUXUS F501 6.2 Transducers
49
UMFLUXUS_F501V1-3EN, 2020-06-30
6.2.2.6 Mounting with tension strap and quick release clasp
The clasp is fixed to the tension strap, see Fig. 6.51.
• Cut the tension strap to length (pipe circumference + 120 mm).
• Position the sensor on the pipe, see Fig. 6.52.
• Place the tension strap around transducer and the pipe.
• Place the tension strap around the pipe and insert it into the clasp.
• The clasp has to be on the pipe.
• Tighten the tension strap.
• Tighten the clasp screw.
Caution!
The edge of the tension strap is very sharp.
Risk of injury!
→ Debur sharp edges.
→ Wear the required personal protective equipment. Observe the applicable rules.

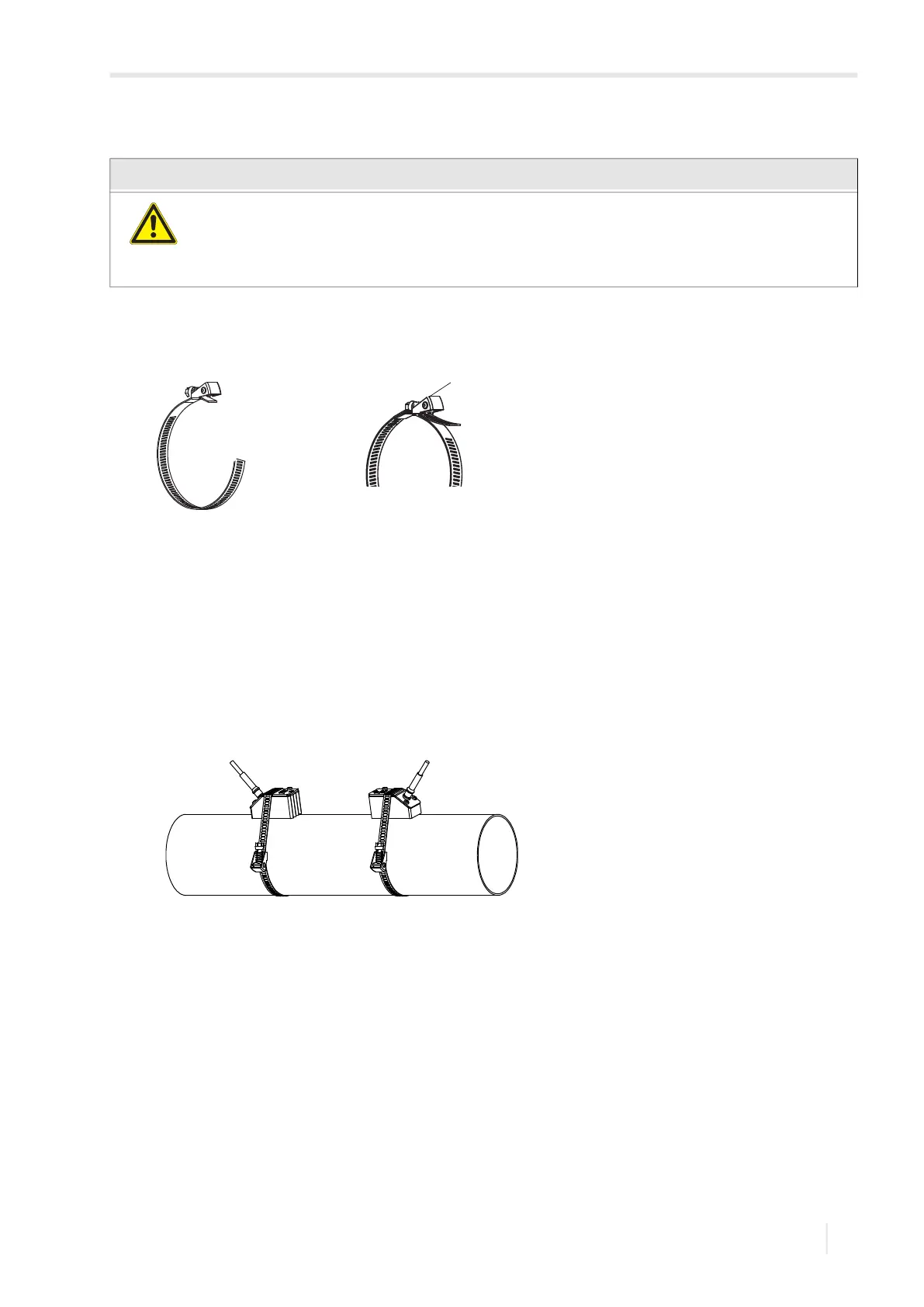

Fig. 6.51: Tension strap with quick release clasp
1 – clasp screw
Fig. 6.52: Transducer on the pipe
1
