13 User modes
FLUXUS H721 13.2 ExpertUser mode
145
UMFLUXUS_H721V1-5EN, 2022-05-15
Selection of the version
• Select the menu item Measurement settings in the program branch Special functions.
• Press ENTER until the menu item Profile correction is displayed.
• Select a list item (default: kRe 2.0).
• Press ENTER.
Selection of the disturbance
• Select a list item.
• Press ENTER.
If kRe 2.0 disturb. corr. or kRe 2.0 dist.corr.bidir. is selected, the disturbance parameters have to be
entered.
13.2.4.1 Measuring point specific profile correction
In special cases a measuring point specific profile correction can be used.
• Select the program branch Options.
• Press ENTER.
• Select a channel for which the profile correction is to be set.
• Select the menu item Special settings.
• Press ENTER until the menu item Profile correction is displayed.
•Select Off to deactivate the profile correction for the channel.
•Select Default to use the global setting from the program branch Special functions for the profile correction.
•Select Customized to use a measuring point specific profile correction.
• Press ENTER.
In case the list item Customized has been selected, the parameters of the measuring point specific profile correction will
now be displayed. The parameters of the profile correction are preferably transmitted to the transmitter via the service
interface but can also be entered here.
Special functions\Measurement\Measurement settings\Profile correction
Parameters\Disturbance type

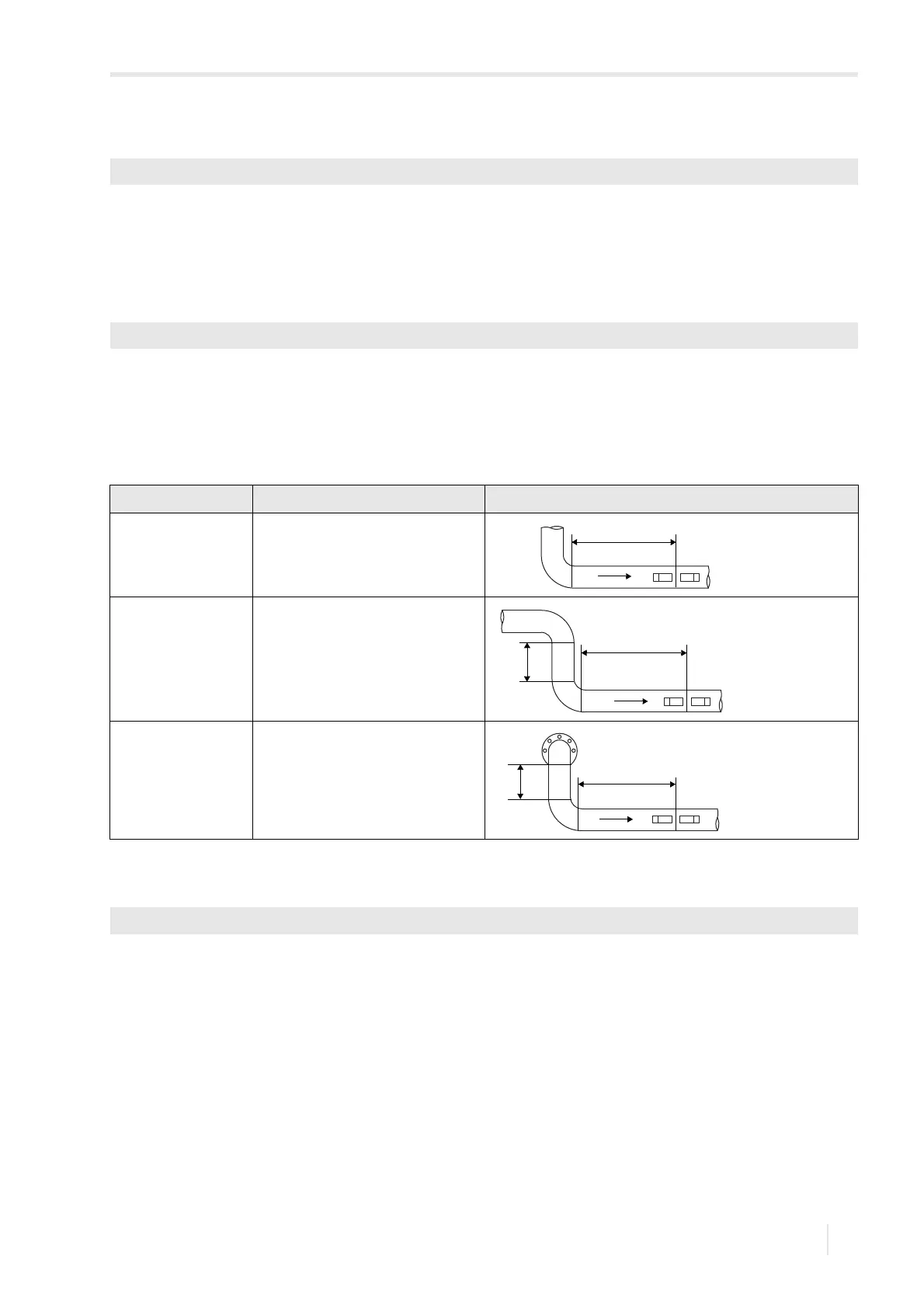

Tab. 13.2: Disturbance parameters
disturbance type further inputs description
90° elbow Disturbance distance (l)
Double elbow Disturbance distance (l
1
)
Dist. between elbows (l
2
)
Double elb. out
of plane
Disturbance distance (l
1
)
Dist. between elbows (l
2
)
Options\Special settings\Profile correction
l
l
1
l
2
l
1
l
2
