Flexim FLUXUS H721 - Display

4 Product description
4.3 Display FLUXUS H721
2022-05-15, UMFLUXUS_H721V1-5EN
22

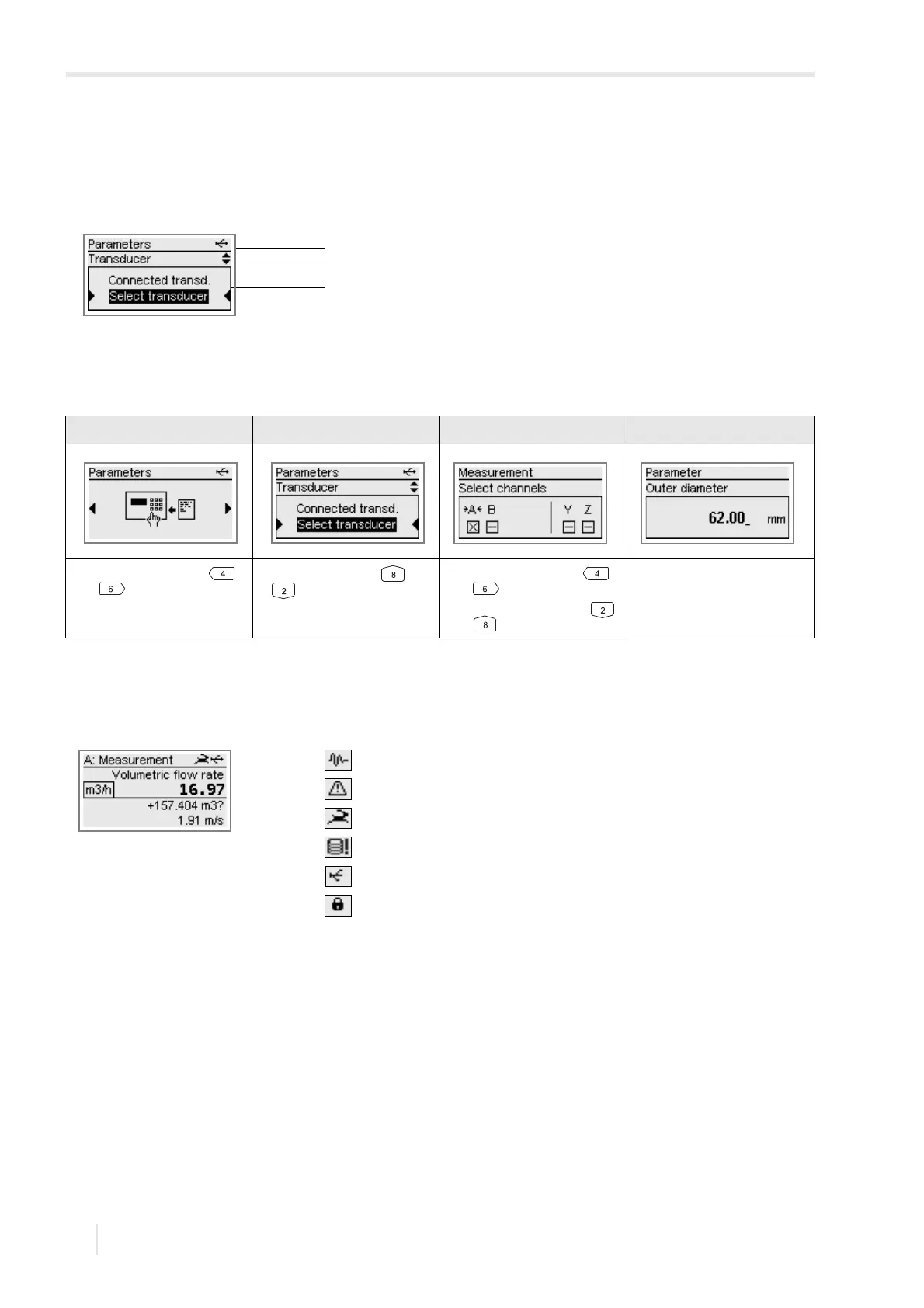

4.3 Display
Structure
Status indications
Several symbols are used for the status indications.
Fig. 4.3: Menu item of the program branch Parameters
1 – program branch
2 – menu item currently edited
3 – area for scroll lists, selection fields or input fields
Tab. 4.2: Navigation
horizontal scroll list vertical scroll list selection fields input fields
• scroll horizontally with
or
• scroll vertically with or • scroll horizontally with
or
• activate/deactivate with
or
• input via the 10 numerical
keys of the keyboard
• delete with C
Fig. 4.4: Status indications (line 1)
1
2
3
error message
running measurement
activated FastFood mode
data logger full
connection via USB cable
key lock activated
