3 General principles
3.2 Measurement arrangements FLUXUS H721
2022-05-15, UMFLUXUS_H721V1-5EN
16
Sound beam plane
Plane containing 1 or several sound paths or beams

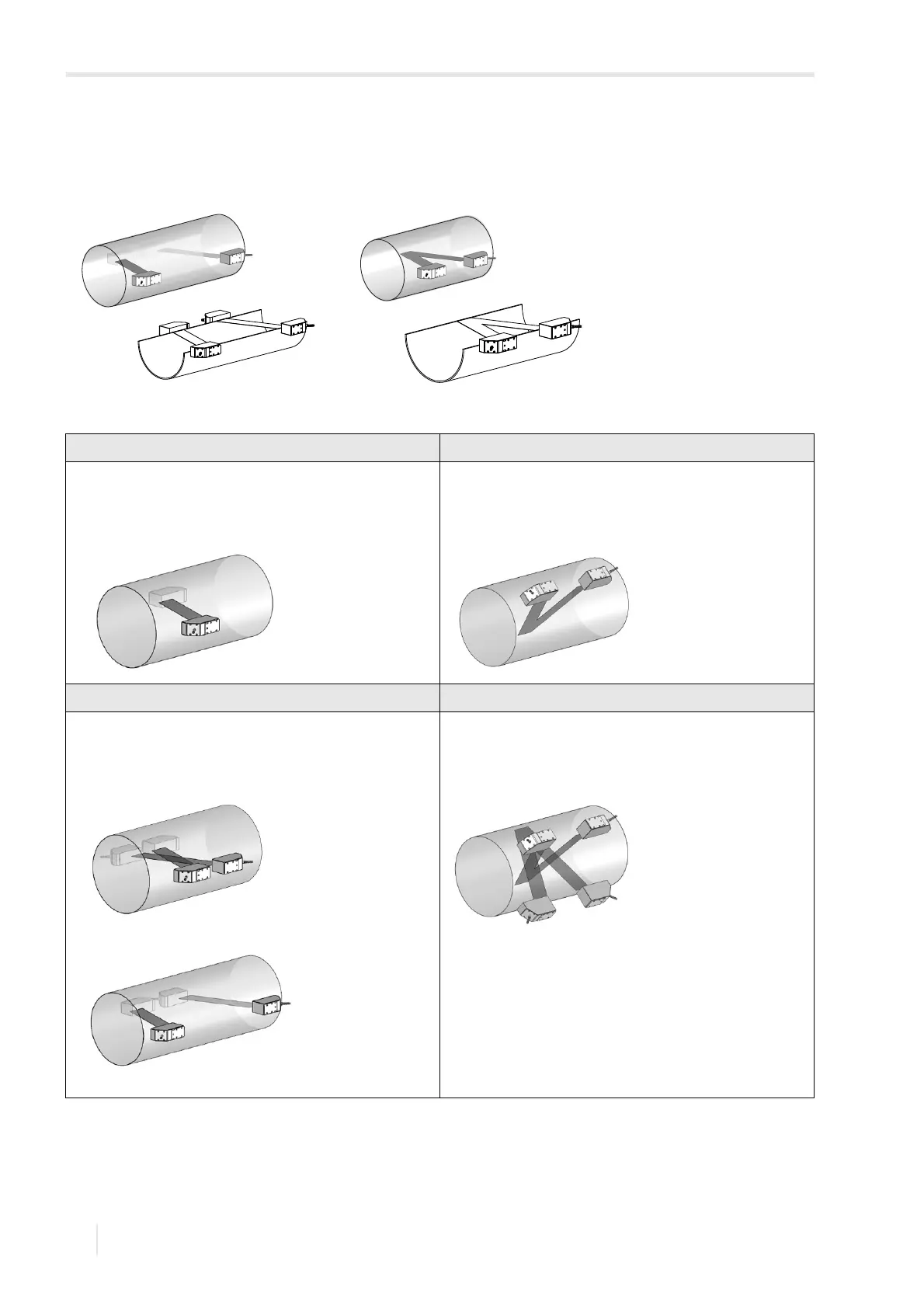

3.2.2 Examples
Fig. 3.8: 2 beams in 1 plane Fig. 3.9: 2 sound paths in 1 plane
diagonal arrangement with 1 beam reflection arrangement with 1 beam
1 transducer pair
1 sound path
1 beam
1 plane
1 transducer pair
2 sound paths
1 beam
1 plane
diagonal arrangement with 2 beams reflection arrangement with 2 beams and 2 planes
2 transducer pairs
2 sound paths
2 beams
1 plane
2 transducer pairs
4 sound paths
2 beams
2 planes
X arrangement
displaced X arrangement
