6 Mounting
FLUXUS H721 6.1 Transmitter
29
UMFLUXUS_H721V1-5EN, 2022-05-15
6.1.2.2 Pipe mounting
Transmitter with stainless steel housing
Installation on a 2'' pipe
• Position the transmitter and the shackle (1) on the pipe.
• Fix the transmitter to the pipe by tightening the nuts (2) of the shackles.
Mounting on a pipe > 2"
The pipe mounting kit is fixed to the pipe by using tension straps.
• Fix the transmitter to the pipe by using tension straps instead of shackles.
The pipe has to be sufficiently stable to withstand the pressure exerted by the transmitter and the shackles.
The edge of the tension strap is very sharp.
Risk of injury!
→ Debur sharp edges.
→ Wear the required personal protective equipment.
→ Observe the applicable rules.

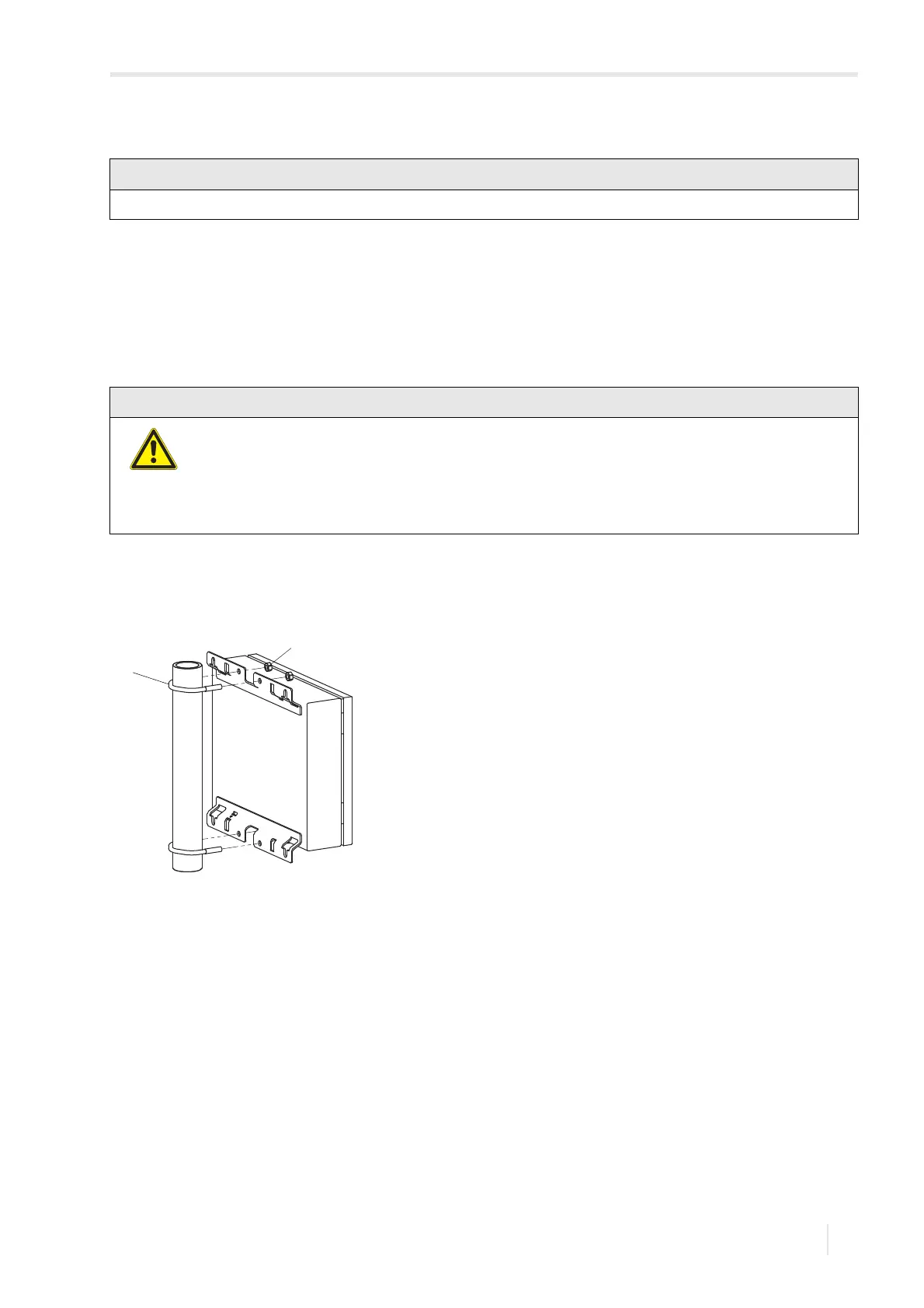

Fig. 6.6: Installation view
1 – shackle
2 – nut
