7 Connection
FLUXUS H721 7.1 Transducers
77
UMFLUXUS_H721V1-5EN, 2022-05-15

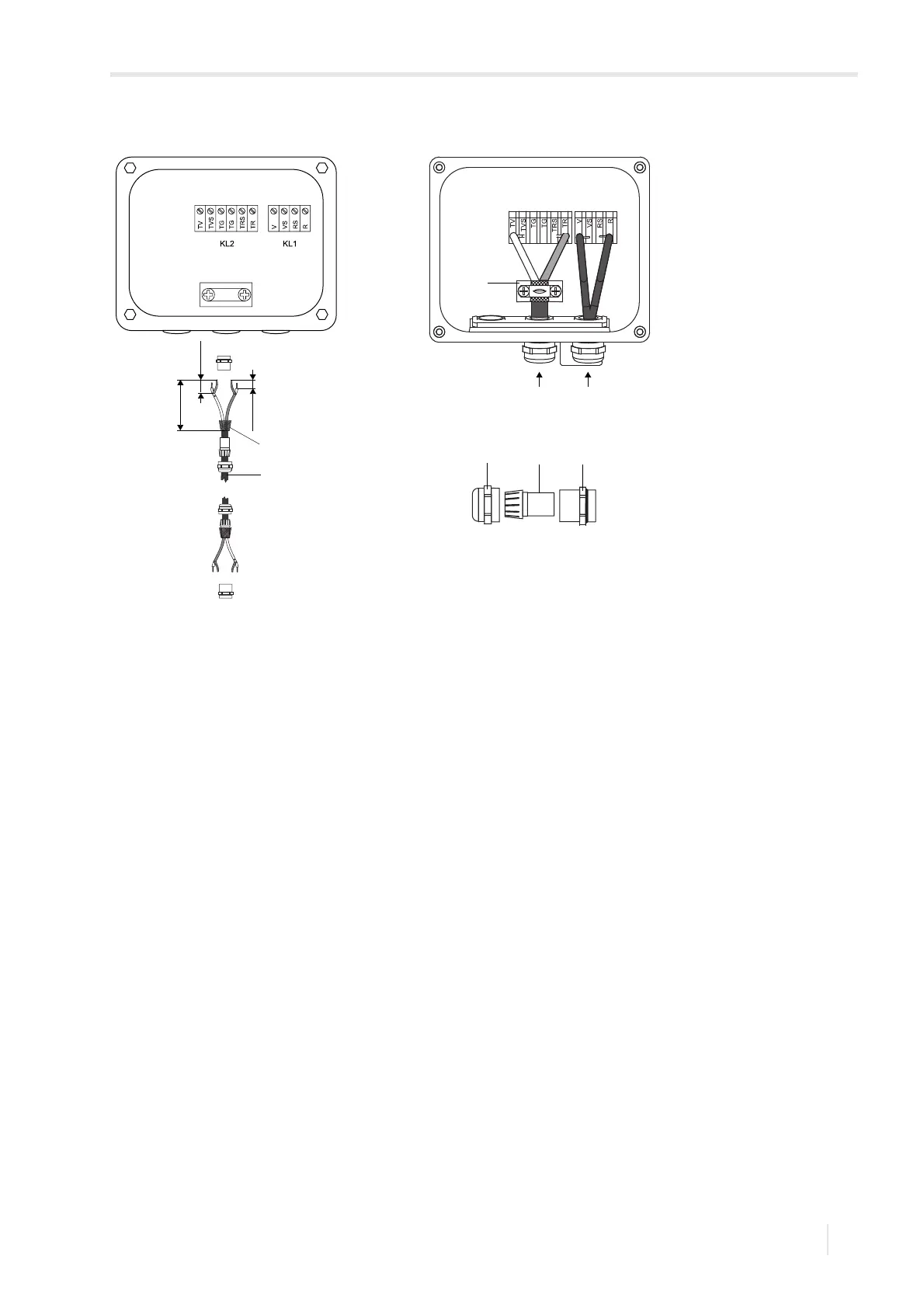

Fig. 7.10: Connection of the extension and transducer cable to the junction box
1 – extension cable
2 – external shield
3 – shield terminal
4 – cap nut
5 – compression part
6 – basic part
7 – connection of the extension cable
8 – connection of the transducer cable
cable gland
4 56
100 mm
20 mm
10 mm
1
2
3
