7 Connection
7.6 Service interfaces FLUXUS H721
2022-05-15, UMFLUXUS_H721V1-5EN
92
• Push the cable through cap nut, compression part, basic part and sealing ring (sealing ring: only for cable gland M20, not
for cable gland 1/2 NPS).
• Insert the cable into the housing of the transmitter.
• Push the cable through the ferrite nut.
• Prepare the cable (see the documentation provided by the manufacturer).
• Install the connector (see the documentation provided by the manufacturer).
• Insert the connector into the LAN interface.
• Position the cable in the housing as shown in Fig. 7.24.
• Fix the cable gland by screwing the cap nut onto the basic part.
• Fix the transducer cable by tightening the cable gland with the ferrite nut.
Transmitter with aluminum housing
• Remove the blind plug to connect the cable to the transmitter.
• Open the cable gland of the LAN cable. The compression part remains in the cap nut.

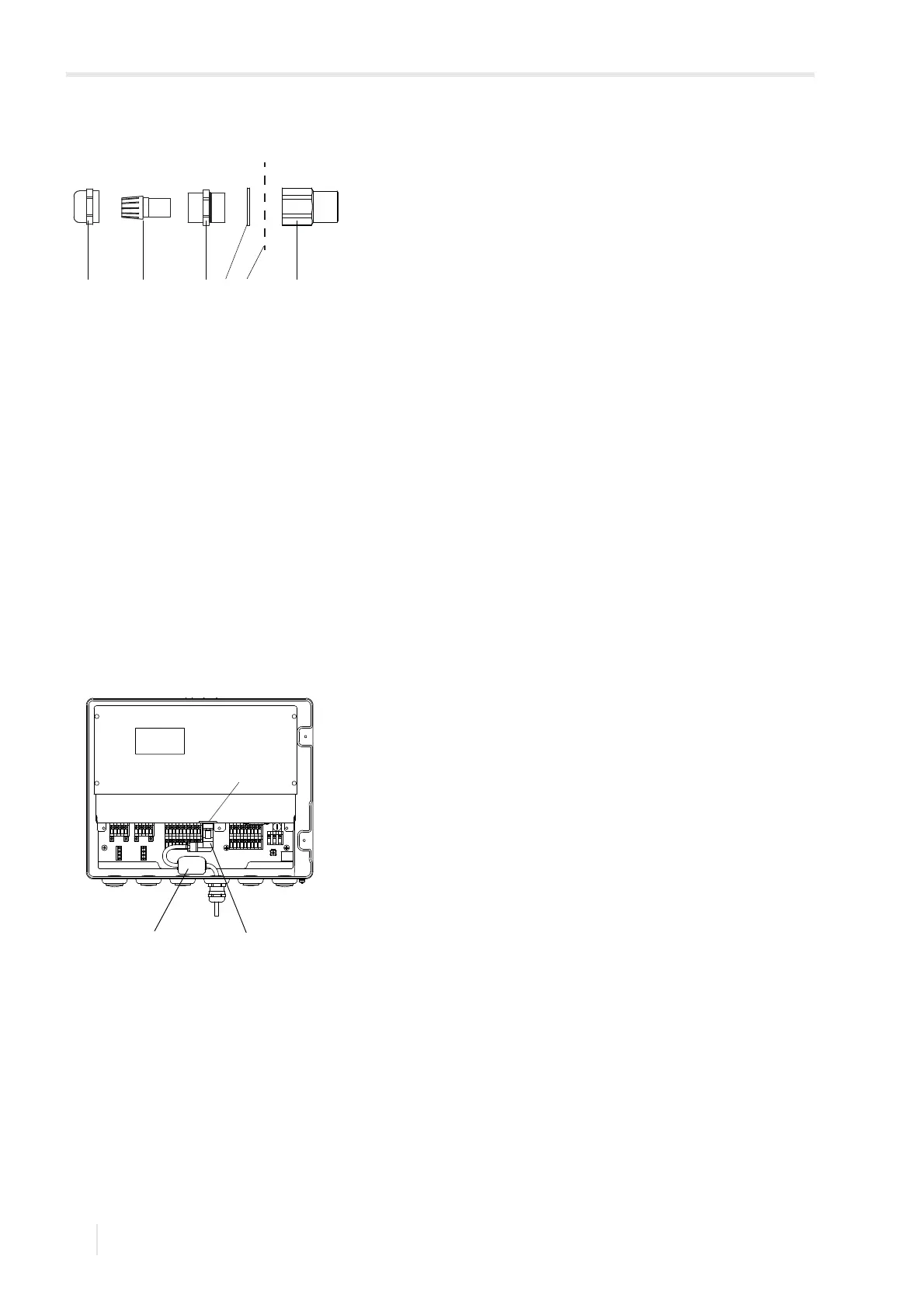

Fig. 7.25: Cable gland
1 – cap nut
2 – compression part
3 – basic part
4 – sealing ring (only for cable gland M20, not for cable gland 1/2 NPS)
5 – housing wall
6 – ferrite nut
Fig. 7.26: Connection of the LAN cable
1 – LAN interface
2 – foldable ferrite core
3 – LAN connector
