HF2211 Serial Server Device User Manual
http://www.iotworkshop.com - 19 -

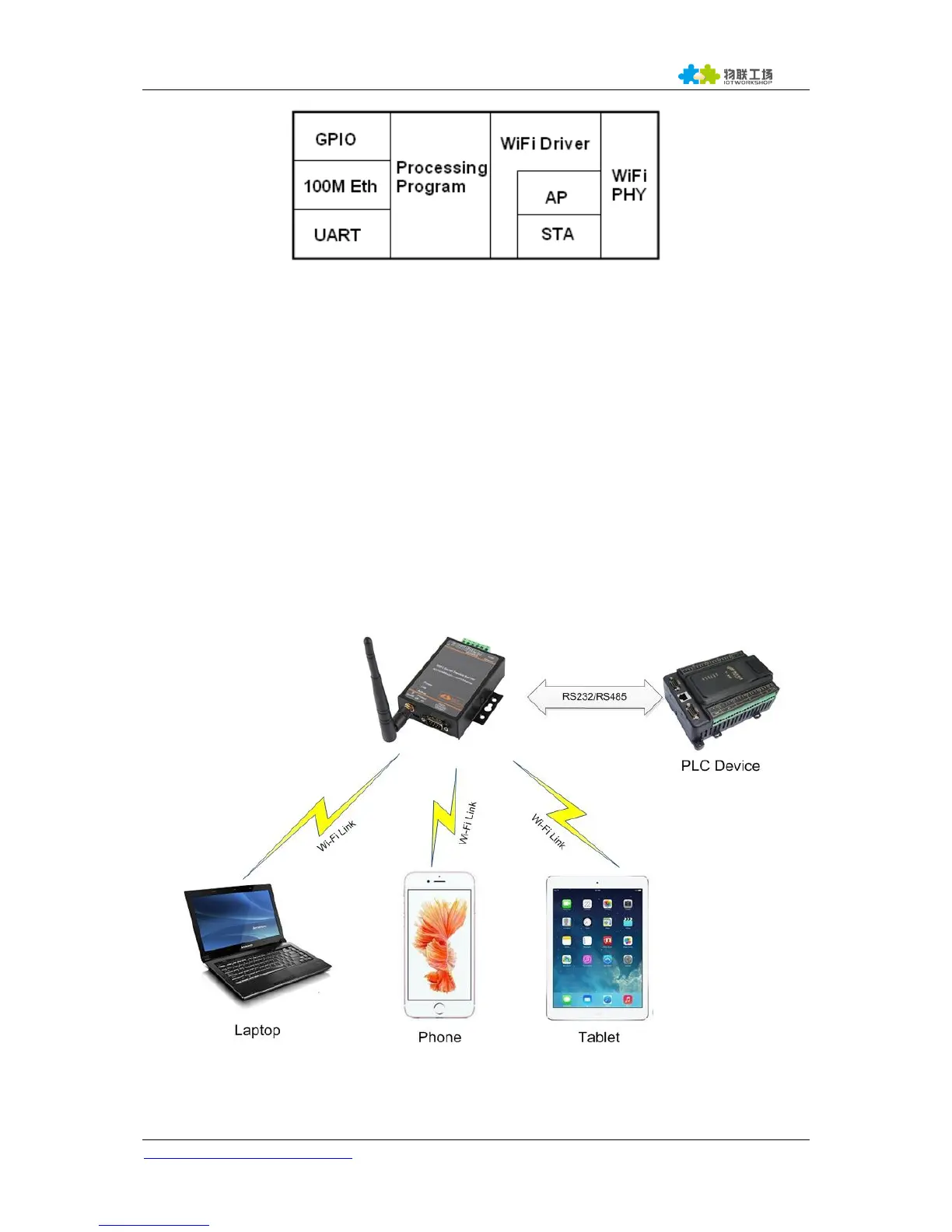

Figure 11. HF2211 Function Structure
<Introductions>
AP: Wireless access point which is the central joint. Usually, wireless router is a AP, other STA
devices can connect with AP to join the network.
STA: Wireless station which is terminal of a wireless network. Such as laptop and pad etc.
3.2.1. AP Network
HF2211 can construct a wireless network as AP. All the STA devices will consider the AP as the
centre of the wireless network. The mutual communication can be transponded by AP,shown as follow:
Figure 12. General AP Network
