HF2211 Serial Server Device User Manual
http://www.iotworkshop.com - 24 -

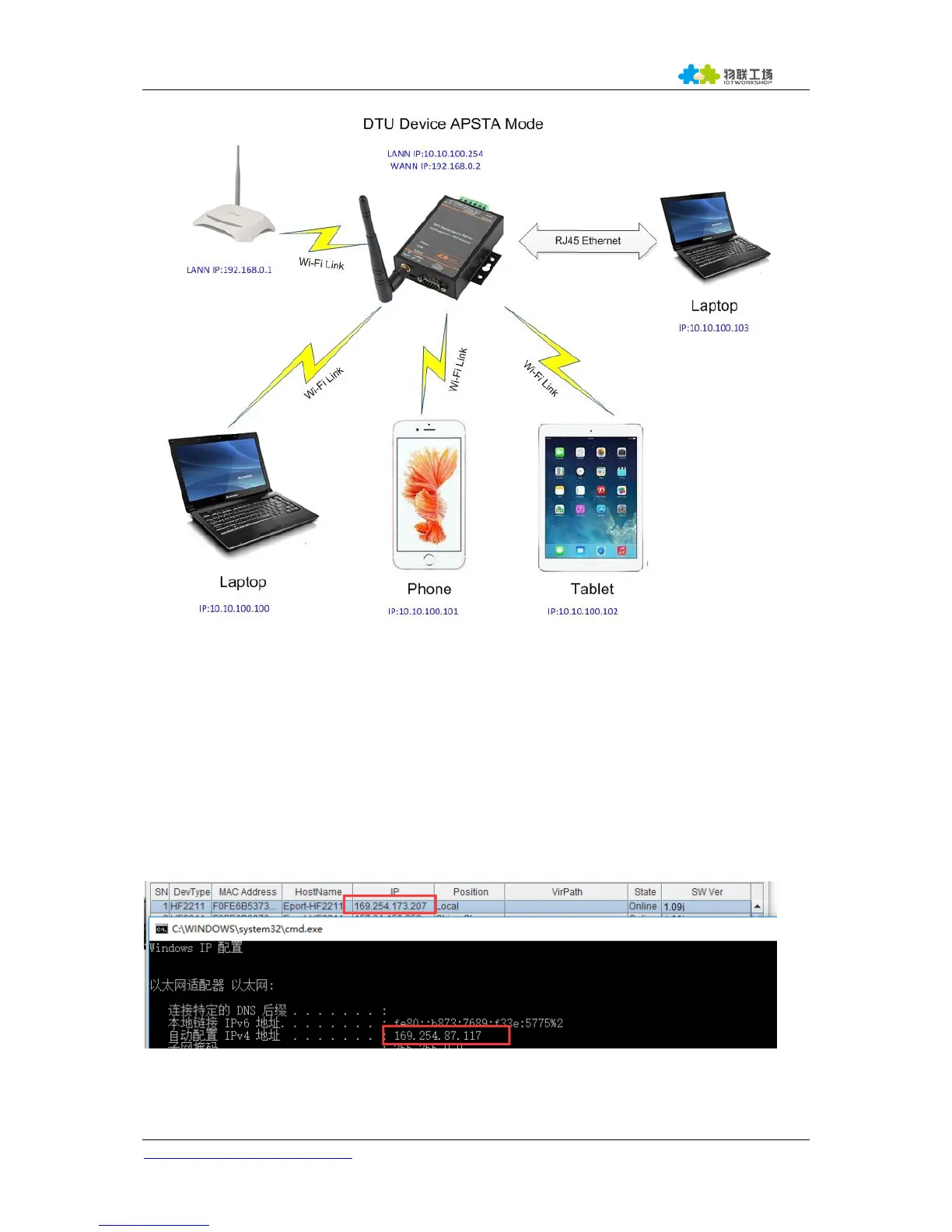

Figure 20. Ethernet Interface Function
HF2211 servers as APSTA and generate a central network. The IP addresses of all the devices and
module’s are in the same network segment.
Note：
If product works in AP mode, then the Ethernet is working as WANN mode, PC will use Auto-IP
to set its IP when connect via Ethernet. Better to change via Wi-Fi, then the PC and other devices are
all in same subnetwork.(10.10.100.xxx)
