HF2211 Serial Server Device User Manual
http://www.iotworkshop.com - 39 -
3.14. Web Page Function
Web page function can be enabled or disabled.

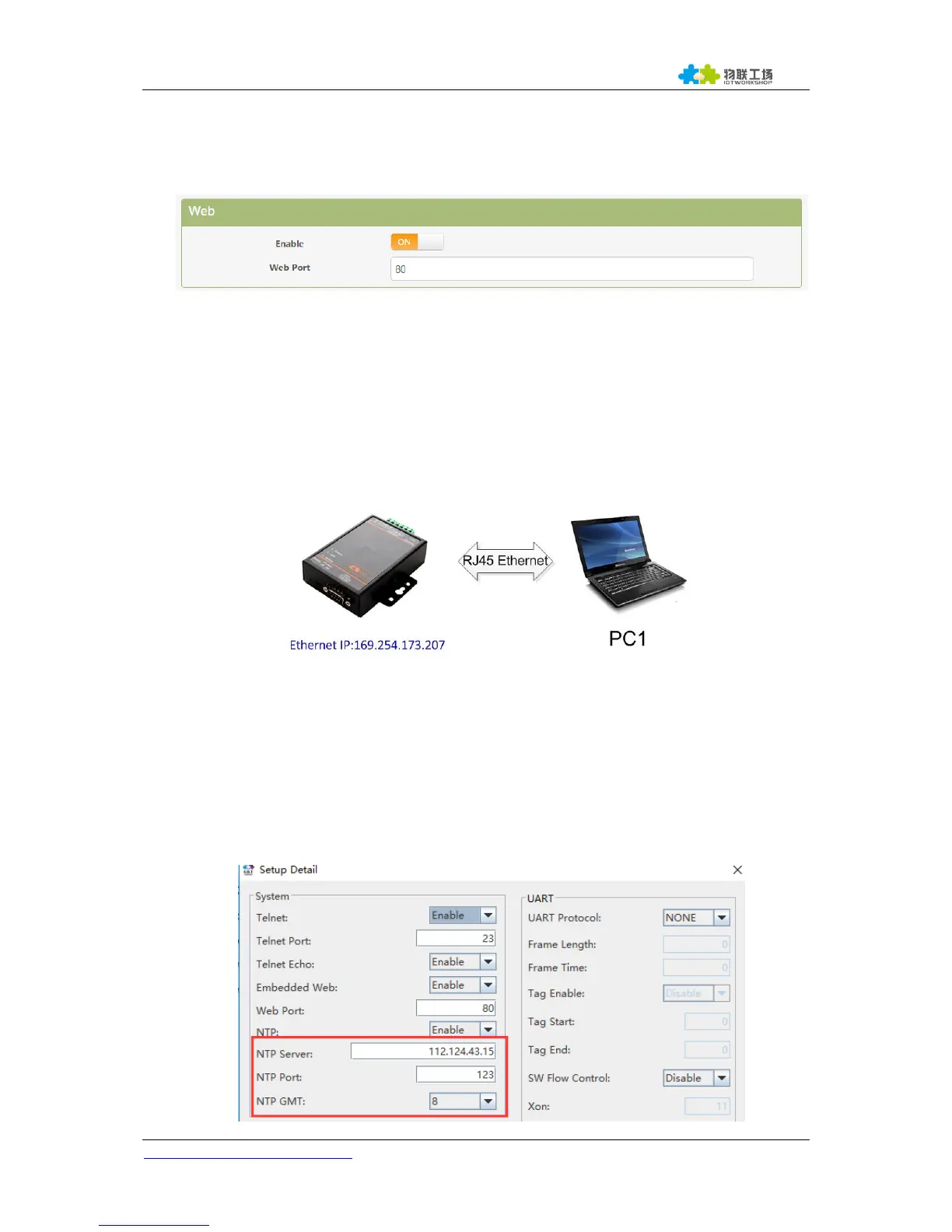

Figure 49. Web Page Function Setting
3.15. Auto-IP Function
Connect device Ethernet with PC, the device will use default auto IP. The PC may use this IP to
config the device or transfer data(PC will need about 15 seconds to use default 169.254.xxx.xxx IP,
then this communication can be created). As the following example, 169.254.173.207(If occure IP
conflict, it will use other ip instead)
Figure 50. AUTO-IP Connection
3.16. NTP Function
Support NTP function(default is disabled). Support set NTP server, port, time zone information, more
detailed usage see application document of “UART Fast Config”.(112.124.43.15 is High-Flying test
NTP server)
