HF2211 Serial Server Device User Manual
http://www.iotworkshop.com - 22 -
When the AP+STA function is opened, the STA interface needs to connect to other router. Otherwise,
STA interface will endlessly scan the router information nearby. When it is scanning, it will bring bad
effects to the AP interface, like losing data etc.
AP and STA parts must set to the different sub-network for the product working as APSTA mode.
3.2.5. IOTService Software
Open the IOTService after connect to the AP hotspot generated by HF2211 or connect to Product
Ethernet port to PC, then configure the parameter.

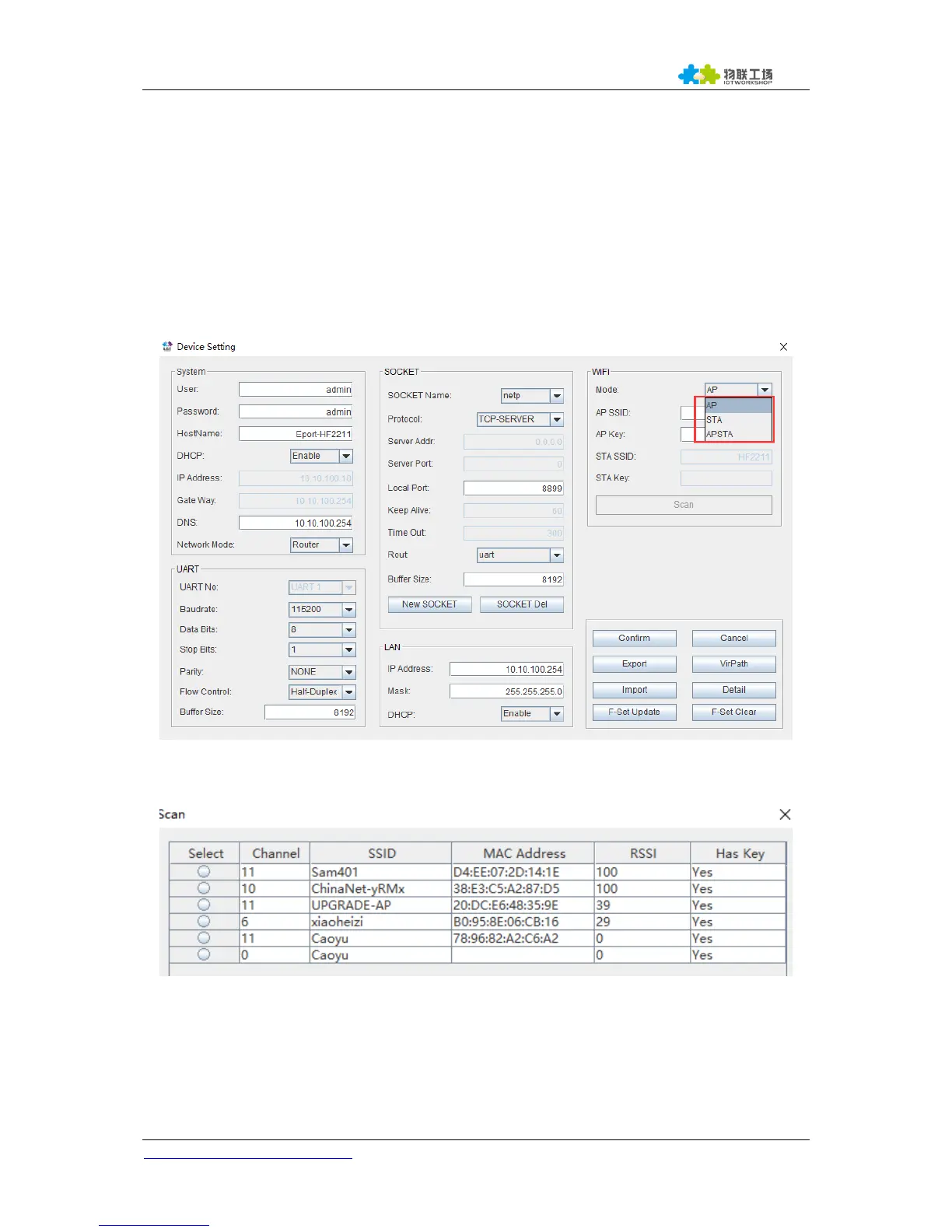

Figure 16. Configure Wi-Fi Parameter
Figure 17. STA Scan Parameter
3.2.6. Webpage Configuration
