HF2211 Serial Server Device User Manual
http://www.iotworkshop.com - 20 -
3.2.2. STA Wireless Network

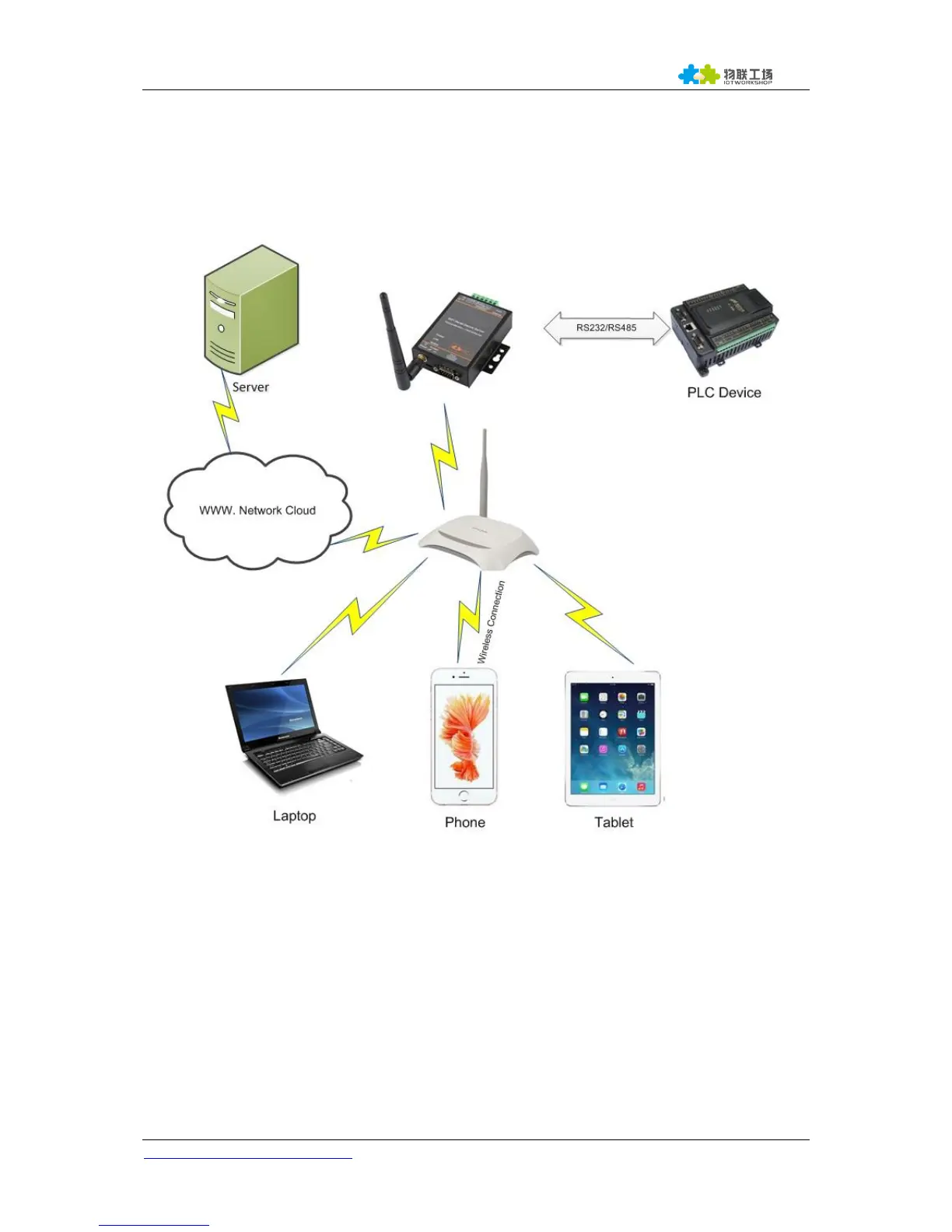

Take the following picture as example. When router works in AP mode, HF2211 connects to the
user’s devices by RS232/RS485 interface. In this topology, the whole wireless network can be easily
stretched.
r
Figure 13. STA Application
3.2.3. AP+STA Wireless Network
HF2211 can support AP+STA method. It can support AP and STA interface at the same time.Shown
as follow:
