3.3.2. Ethernet Interface Function(Router)

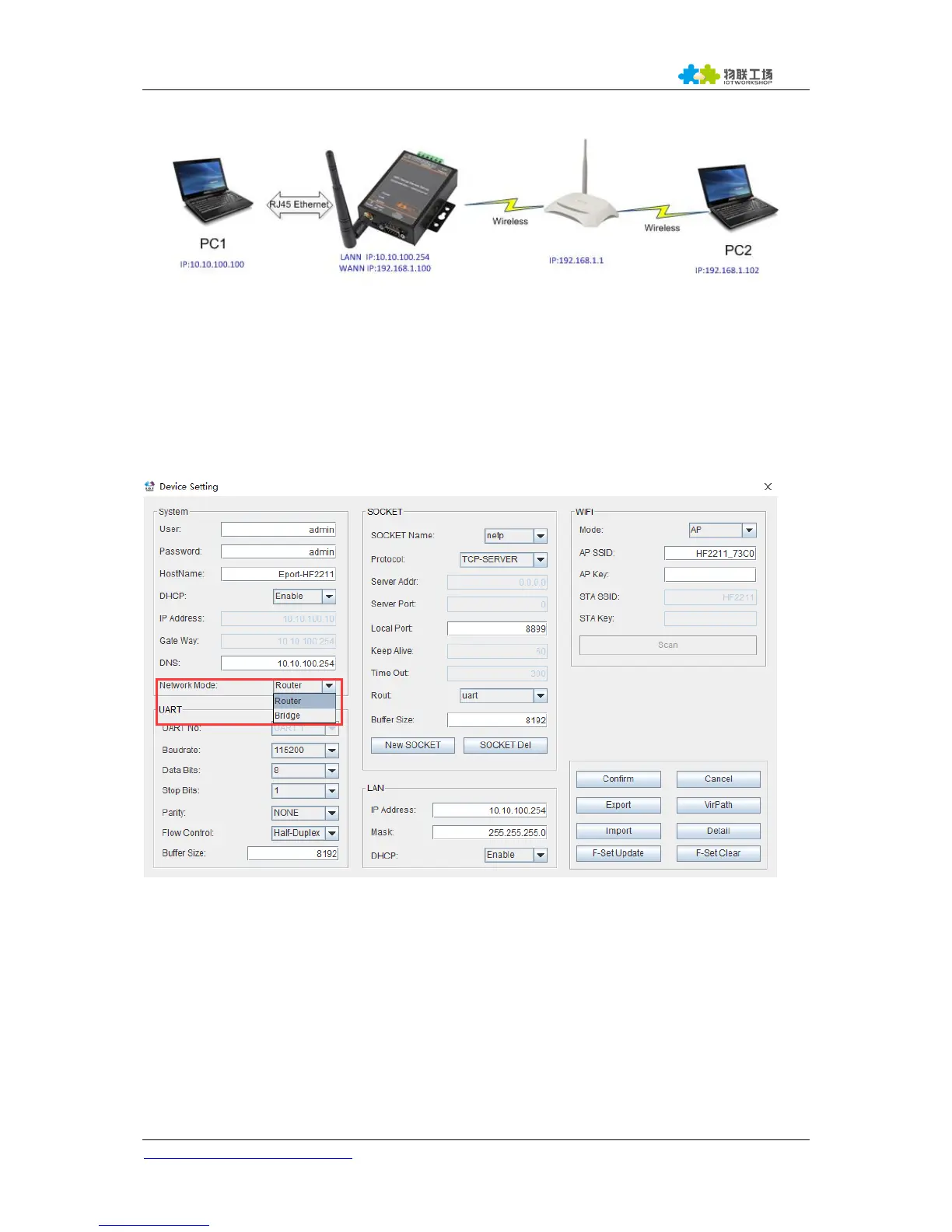

Figure 21. Ethernet Interface Function(Router)
The HF2211 device Ethernet interface work in router mode. When connect to router, it will get IP
address from router(as picture 192.168.1.100). The product itself generate a subnet(10.10.100.254
default). The device from the Ethernet interface is assigned with IP address by module
(10.10.100.101 ).Then the device and the PC1 are in the same subnet for network communication. A
connection fro PC1 to PC2, but PC2 cannot actively connect to PC1.
